Motorola MT912M - Connection Plan for the Junction Box Accessory Terminal

54 MTM800 Enhanced Mobile Terminal Installation Manual INSTALLATION

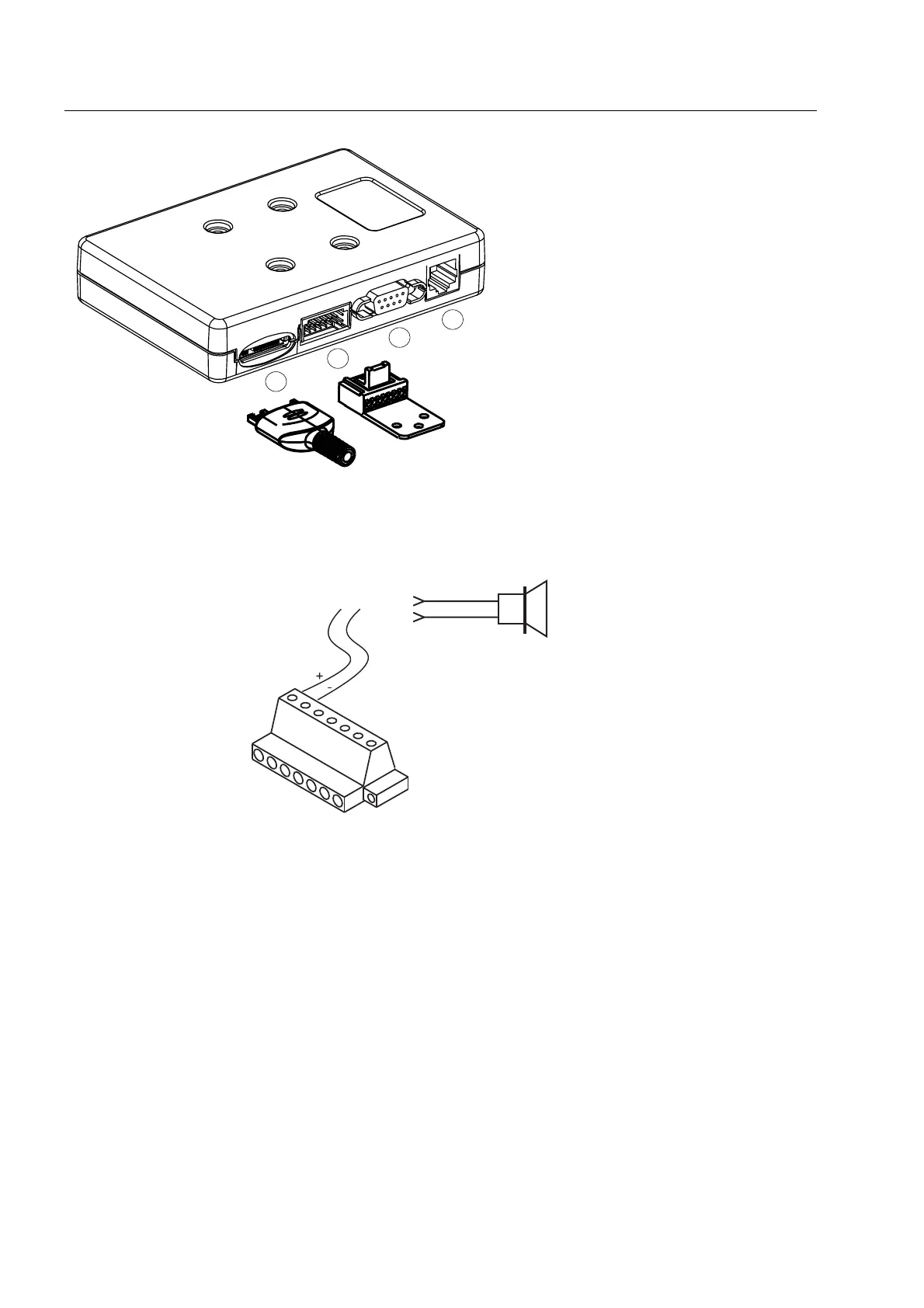

Figure 25 Connectors on the Junction Box - Rear Panel
Connection Plan for the Junction Box Accessory Terminal
Connection Plan for the Speaker
4
5
6
7
4 = Connector for programming
cable FLN 9636
5 = Connector for accessory
connector kit GMBN1021
6 = Connector for adapting a
laptop via RS232 cable
7 = TELCO-connector for fist
microphone (GMMN4063) or
telephone style handset
(GMUN1006)
1
2
SPEAKER
JUNCTION BOX TERMINAL
External
Speaker
1
2
3
4
5
6
7
