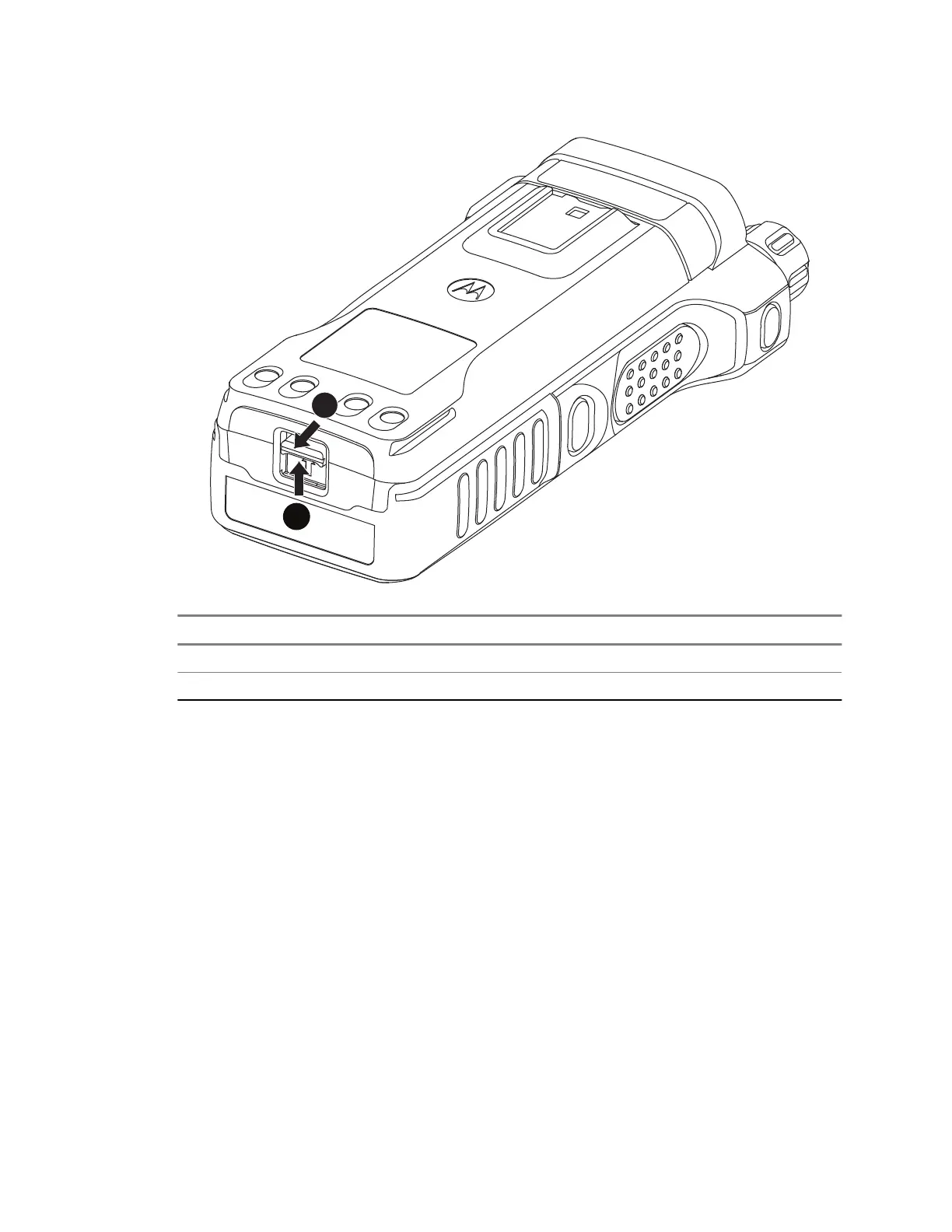

Figure 7: Battery Removal
2
1
Annotation Description
1 Lift battery latch
2 Slide to remove battery
5.5.2.3
Removing the Dust Cover
Prerequisites: Recommended tools:
• 3 mm hex key
Procedure:
1 Using the hex key, unscrew the dust cover thumb screw from the front housing.
2 Remove the dust cover while being cautious of the dust cover hook at the top of the front
housing pocket.
