Motorola MTP8550Ex - Installing the Back Cover Lens and Identification Tag; Installing the Back Cover Identification Kit; Figure 15: Back Cover Lens and Identification Tag Installation

Annotation Description
3 Dummy SIM card
4 SIM card connector
5.5.3.3
Installing the Back Cover Lens and Identification Tag
Procedure:
Place the identification tag with the back cover lens together, and slide downwards to install onto
the back cover.

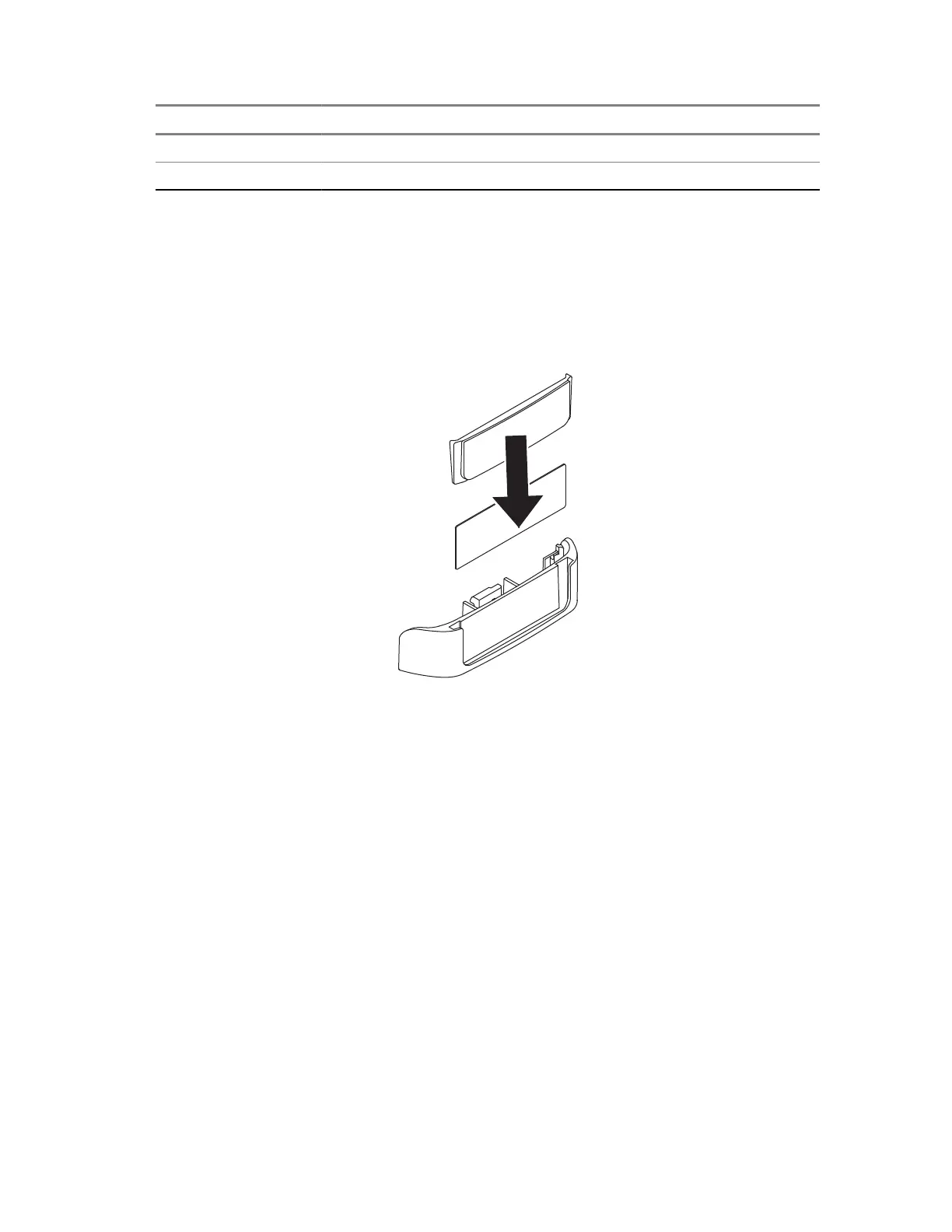

Figure 15: Back Cover Lens and Identification Tag Installation
5.5.3.4
Installing the Back Cover Identification Kit
Procedure:
Slide the back cover identification kit upwards along the grooves on the back chassis.
