REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
DECALS
37
6
5
5
8
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap, Tire valve
2 532065139 Stem, Valve
3 532106222 Tire, Front
4 532059904 Tube, Front (Service item only)
5 532141446 Rim assembly, 6"front
6 532124957 Fitting, Grease (Front wheel only)
7 532124959 Bearing, Flange (Front wheel only)
8 532141447 Rim assembly, 8" rear
9 532124635 Tire, Rear
10 532124926 Tube, Rear (Service item only)
11 532104757 Cap, Hub Axle
- - 532144334 Sealant, Tire (10 oz. Tube)
8
15
17
3
KEY PART
NO. NO. DESCRIPTION
16
6
2
1
5,8
4,10
3,9
11
7

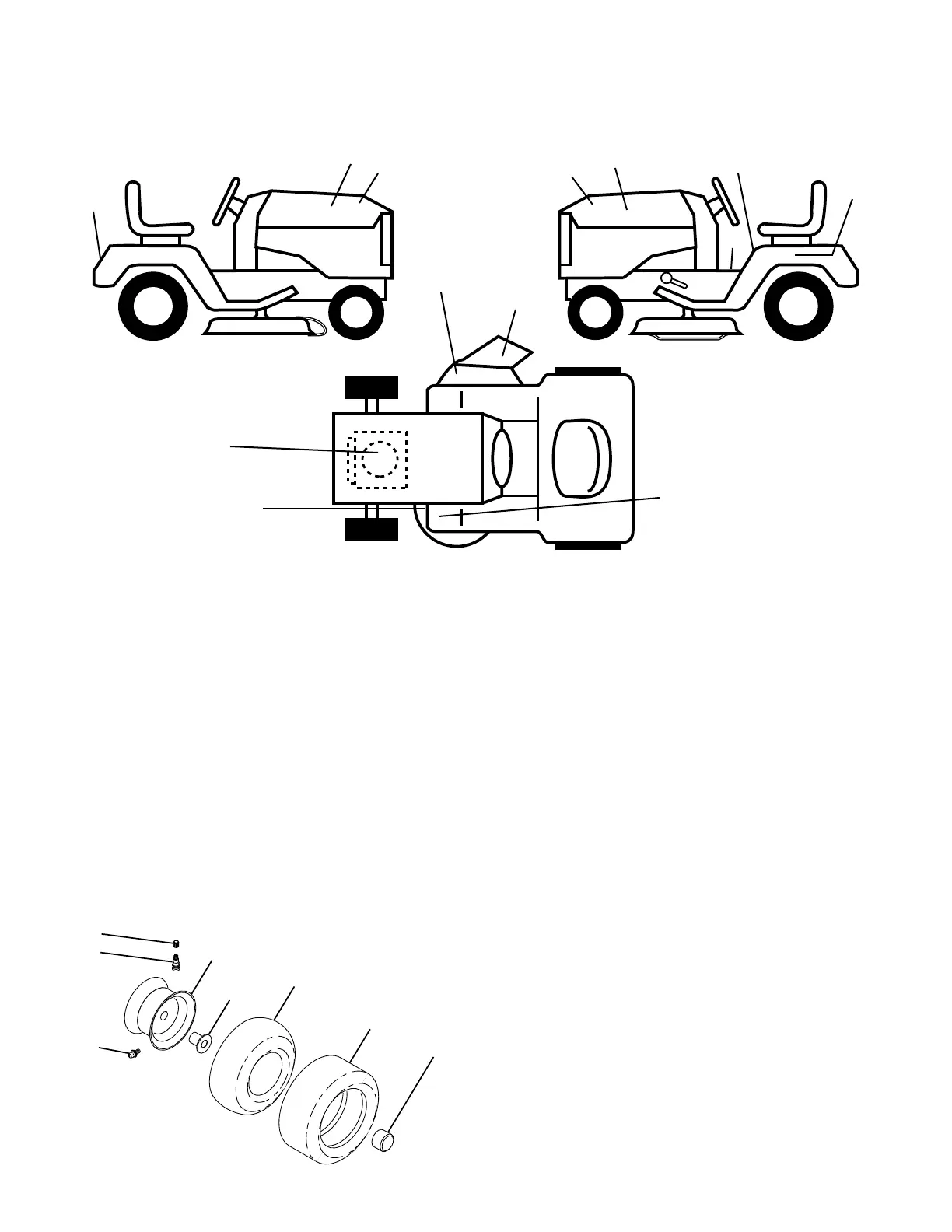

WHEELS & TIRES
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
10
12
14
1
1 532101892 Decal, Clutch/Brake English
3 532272440 Decal, Engine HP
5 532159713 Decal, Pnl Sd
6 532157140 Decal, Fender Danger English
8 532150617 Decal, Logo, Fender
10 532137259 Decal, Warning Multi-Language
12 532162110 Decal, Hood RH
14 532162111 Decal, Hood LH
15 532145005 Decal, Caution, Battery
16 532157163 Decal, Oper Sdl P/L Gear Dr Eng
17 532136832 Decal, V-Belt Sch.
- - 532138311 Decal, Handle Lft Height Adj.
- - 532162130 Manual, Owners (Eng)
- - 532162131 Manual, Owners (Span)
Available accessories not included with mower:
- - LSB42 42" Snow thrower
- - LBD48 48" Snow blade
- - LC05 33 lb. Wheel weights (pair)
- - CH12 Tire chains
- - MP38 Mulch w/Blades Kit
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
