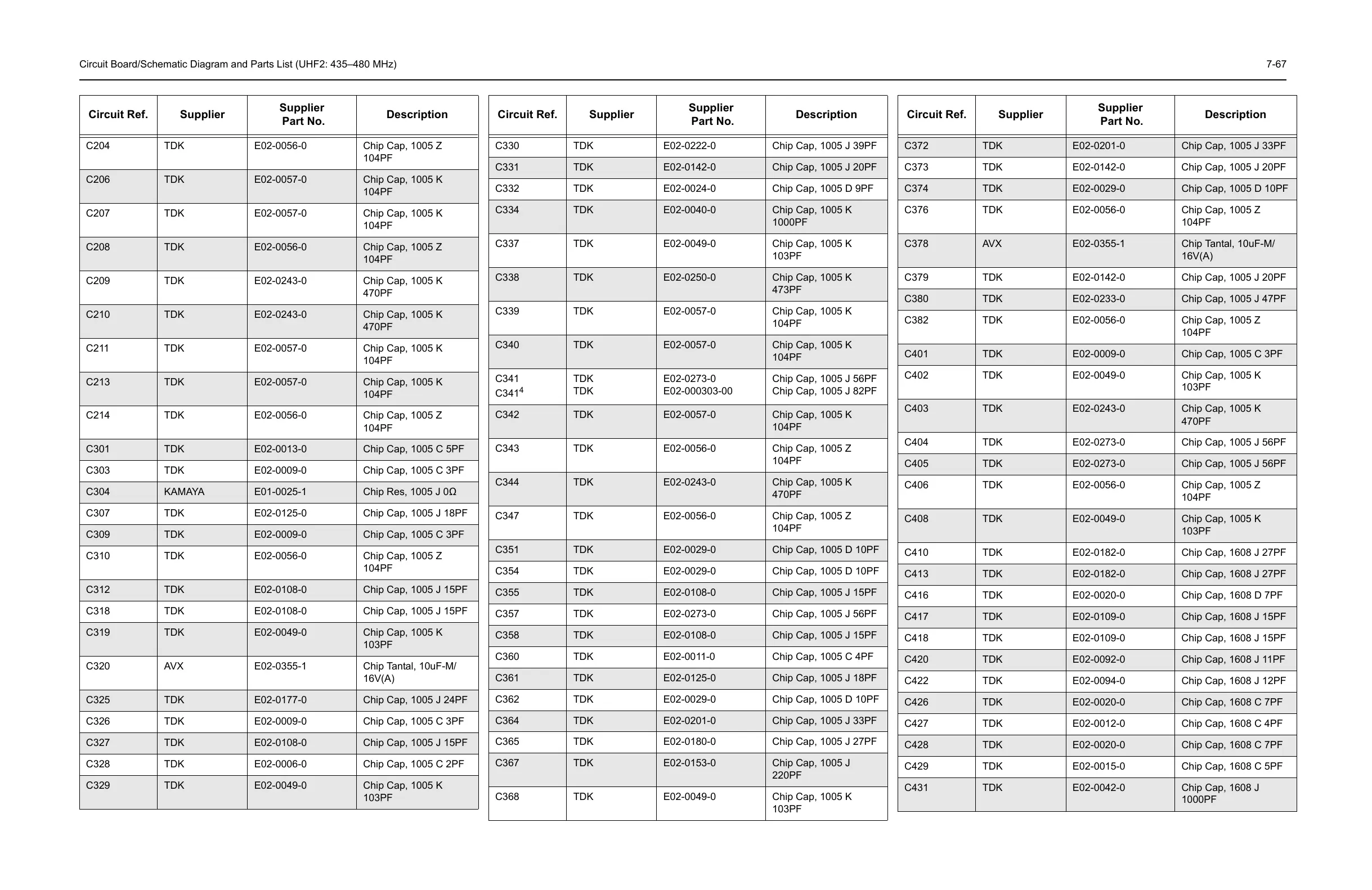

Motorola P100 Series Detailed Service Manual

Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz) 7-67
C204 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C206 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C207 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C208 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C209 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C210 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C211 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C213 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C214 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C301 TDK E02-0013-0 Chip Cap, 1005 C 5PF
C303 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C304 KAMAYA E01-0025-1 Chip Res, 1005 J 0
C307 TDK E02-0125-0 Chip Cap, 1005 J 18PF
C309 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C310 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C312 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C318 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C319 TDK E02-0049-0 Chip Cap, 1005 K
103PF
C320 AVX E02-0355-1 Chip Tantal, 10uF-M/
16V(A)
C325 TDK E02-0177-0 Chip Cap, 1005 J 24PF
C326 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C327 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C328 TDK E02-0006-0 Chip Cap, 1005 C 2PF
C329 TDK E02-0049-0 Chip Cap, 1005 K
103PF
Circuit Ref. Supplier
Supplier
Part No.
Description
C330 TDK E02-0222-0 Chip Cap, 1005 J 39PF
C331 TDK E02-0142-0 Chip Cap, 1005 J 20PF
C332 TDK E02-0024-0 Chip Cap, 1005 D 9PF
C334 TDK E02-0040-0 Chip Cap, 1005 K
1000PF
C337 TDK E02-0049-0 Chip Cap, 1005 K
103PF
C338 TDK E02-0250-0 Chip Cap, 1005 K
473PF
C339 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C340 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C341
C341
4
TDK
TDK
E02-0273-0
E02-000303-00
Chip Cap, 1005 J 56PF
Chip Cap, 1005 J 82PF
C342 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C343 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C344 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C347 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C351 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C354 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C355 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C357 TDK E02-0273-0 Chip Cap, 1005 J 56PF
C358 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C360 TDK E02-0011-0 Chip Cap, 1005 C 4PF
C361 TDK E02-0125-0 Chip Cap, 1005 J 18PF
C362 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C364 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C365 TDK E02-0180-0 Chip Cap, 1005 J 27PF
C367 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C368 TDK E02-0049-0 Chip Cap, 1005 K
103PF
Circuit Ref. Supplier
Supplier
Part No.
Description
C372 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C373 TDK E02-0142-0 Chip Cap, 1005 J 20PF
C374 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C376 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C378 AVX E02-0355-1 Chip Tantal, 10uF-M/
16V(A)
C379 TDK E02-0142-0 Chip Cap, 1005 J 20PF
C380 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C382 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C401 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C402 TDK E02-0049-0 Chip Cap, 1005 K
103PF
C403 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C404 TDK E02-0273-0 Chip Cap, 1005 J 56PF
C405 TDK E02-0273-0 Chip Cap, 1005 J 56PF
C406 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C408 TDK E02-0049-0 Chip Cap, 1005 K
103PF
C410 TDK E02-0182-0 Chip Cap, 1608 J 27PF
C413 TDK E02-0182-0 Chip Cap, 1608 J 27PF
C416 TDK E02-0020-0 Chip Cap, 1608 D 7PF
C417 TDK E02-0109-0 Chip Cap, 1608 J 15PF
C418 TDK E02-0109-0 Chip Cap, 1608 J 15PF
C420 TDK E02-0092-0 Chip Cap, 1608 J 11PF
C422 TDK E02-0094-0 Chip Cap, 1608 J 12PF
C426 TDK E02-0020-0 Chip Cap, 1608 C 7PF
C427 TDK E02-0012-0 Chip Cap, 1608 C 4PF
C428 TDK E02-0020-0 Chip Cap, 1608 C 7PF
C429 TDK E02-0015-0 Chip Cap, 1608 C 5PF
C431 TDK E02-0042-0 Chip Cap, 1608 J
1000PF
Circuit Ref. Supplier
Supplier
Part No.
Description
