Motorola P100 Series Detailed Service Manual

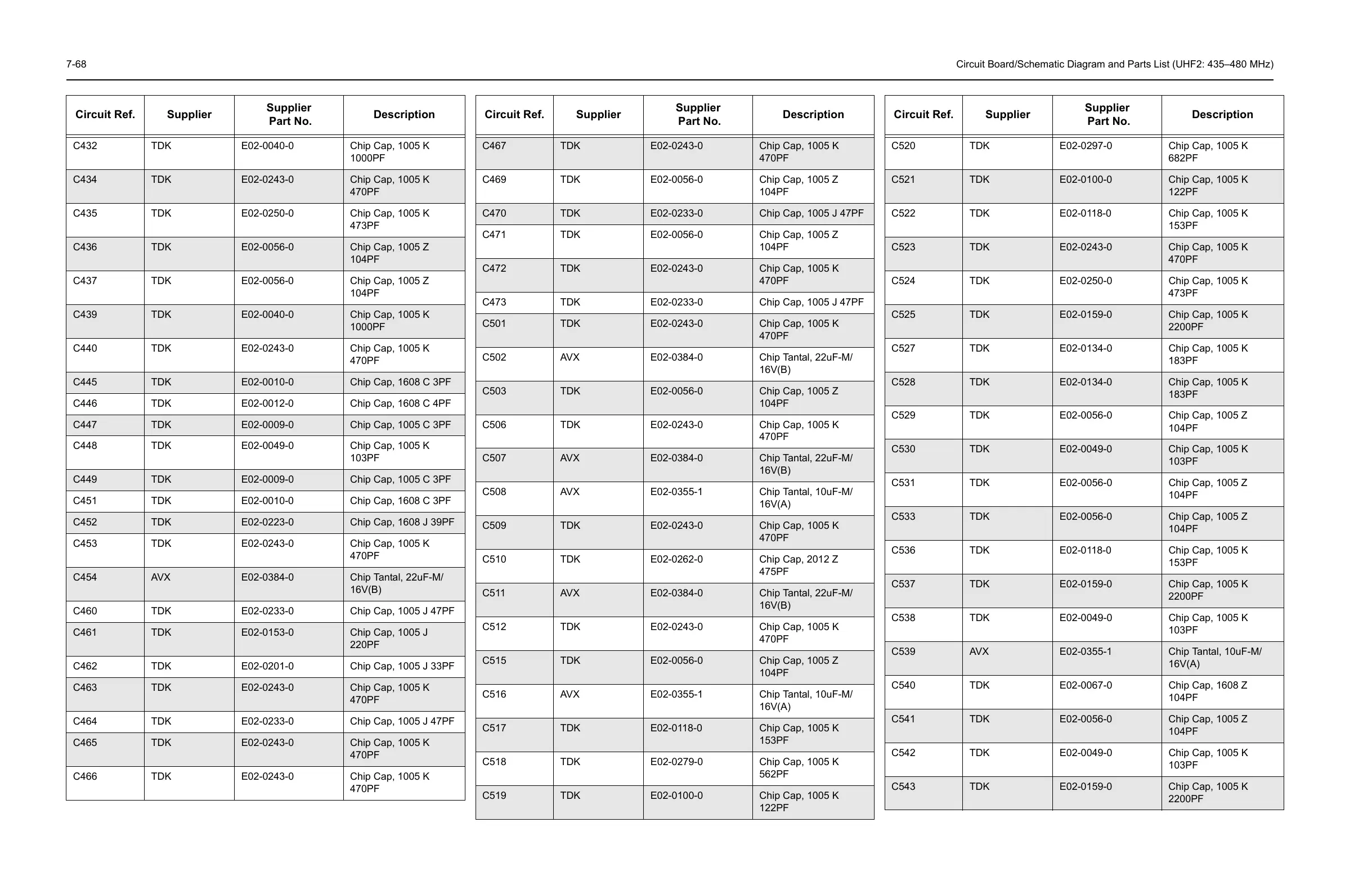

7-68 Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz)
C432 TDK E02-0040-0 Chip Cap, 1005 K
1000PF
C434 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C435 TDK E02-0250-0 Chip Cap, 1005 K
473PF
C436 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C437 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C439 TDK E02-0040-0 Chip Cap, 1005 K
1000PF
C440 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C445 TDK E02-0010-0 Chip Cap, 1608 C 3PF
C446 TDK E02-0012-0 Chip Cap, 1608 C 4PF
C447 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C448 TDK E02-0049-0 Chip Cap, 1005 K
103PF
C449 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C451 TDK E02-0010-0 Chip Cap, 1608 C 3PF
C452 TDK E02-0223-0 Chip Cap, 1608 J 39PF
C453 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C454 AVX E02-0384-0 Chip Tantal, 22uF-M/
16V(B)
C460 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C461 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C462 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C463 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C464 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C465 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C466 TDK E02-0243-0 Chip Cap, 1005 K
470PF
Circuit Ref. Supplier
Supplier
Part No.
Description
C467 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C469 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C470 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C471 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C472 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C473 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C501 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C502 AVX E02-0384-0 Chip Tantal, 22uF-M/
16V(B)
C503 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C506 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C507 AVX E02-0384-0 Chip Tantal, 22uF-M/
16V(B)
C508 AVX E02-0355-1 Chip Tantal, 10uF-M/
16V(A)
C509 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C510 TDK E02-0262-0 Chip Cap, 2012 Z
475PF
C511 AVX E02-0384-0 Chip Tantal, 22uF-M/
16V(B)
C512 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C515 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C516 AVX E02-0355-1 Chip Tantal, 10uF-M/
16V(A)
C517 TDK E02-0118-0 Chip Cap, 1005 K
153PF
C518 TDK E02-0279-0 Chip Cap, 1005 K
562PF
C519 TDK E02-0100-0 Chip Cap, 1005 K
122PF
Circuit Ref. Supplier
Supplier
Part No.
Description
C520 TDK E02-0297-0 Chip Cap, 1005 K
682PF
C521 TDK E02-0100-0 Chip Cap, 1005 K
122PF
C522 TDK E02-0118-0 Chip Cap, 1005 K
153PF
C523 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C524 TDK E02-0250-0 Chip Cap, 1005 K
473PF
C525 TDK E02-0159-0 Chip Cap, 1005 K
2200PF
C527 TDK E02-0134-0 Chip Cap, 1005 K
183PF
C528 TDK E02-0134-0 Chip Cap, 1005 K
183PF
C529 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C530 TDK E02-0049-0 Chip Cap, 1005 K
103PF
C531 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C533 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C536 TDK E02-0118-0 Chip Cap, 1005 K
153PF
C537 TDK E02-0159-0 Chip Cap, 1005 K
2200PF
C538 TDK E02-0049-0 Chip Cap, 1005 K
103PF
C539 AVX E02-0355-1 Chip Tantal, 10uF-M/
16V(A)
C540 TDK E02-0067-0 Chip Cap, 1608 Z
104PF
C541 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C542 TDK E02-0049-0 Chip Cap, 1005 K
103PF
C543 TDK E02-0159-0 Chip Cap, 1005 K
2200PF
Circuit Ref. Supplier
Supplier
Part No.
Description
