Motorola P100 Series Detailed Service Manual

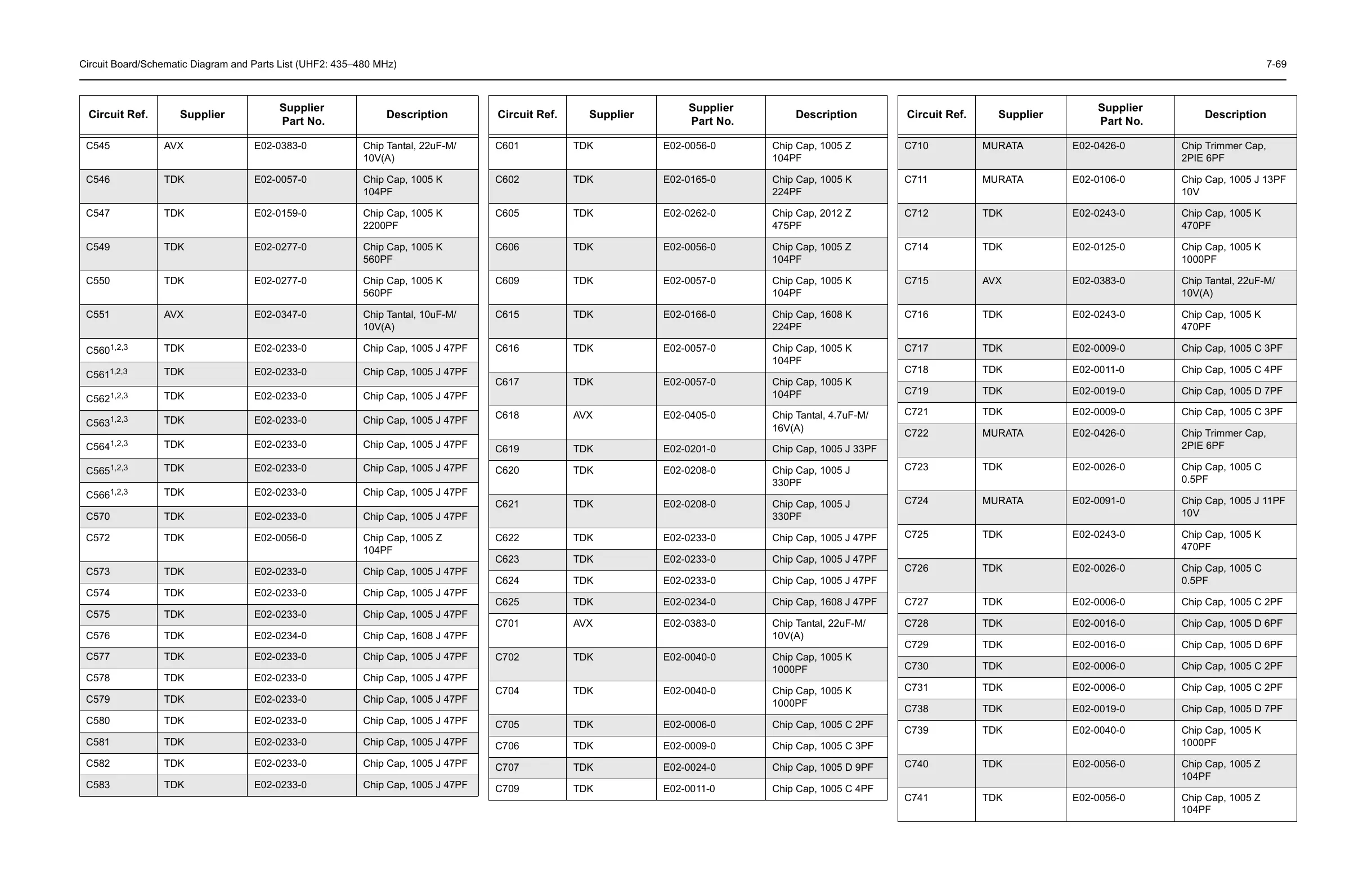

Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz) 7-69
C545 AVX E02-0383-0 Chip Tantal, 22uF-M/
10V(A)
C546 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C547 TDK E02-0159-0 Chip Cap, 1005 K
2200PF
C549 TDK E02-0277-0 Chip Cap, 1005 K
560PF
C550 TDK E02-0277-0 Chip Cap, 1005 K
560PF
C551 AVX E02-0347-0 Chip Tantal, 10uF-M/
10V(A)
C560
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C561
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C562
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C563
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C564
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C565
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C566
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C570 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C572 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C573 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C574 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C575 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C576 TDK E02-0234-0 Chip Cap, 1608 J 47PF
C577 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C578 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C579 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C580 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C581 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C582 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C583 TDK E02-0233-0 Chip Cap, 1005 J 47PF
Circuit Ref. Supplier
Supplier
Part No.
Description
C601 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C602 TDK E02-0165-0 Chip Cap, 1005 K
224PF
C605 TDK E02-0262-0 Chip Cap, 2012 Z
475PF
C606 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C609 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C615 TDK E02-0166-0 Chip Cap, 1608 K
224PF
C616 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C617 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C618 AVX E02-0405-0 Chip Tantal, 4.7uF-M/
16V(A)
C619 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C620 TDK E02-0208-0 Chip Cap, 1005 J
330PF
C621 TDK E02-0208-0 Chip Cap, 1005 J
330PF
C622 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C623 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C624 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C625 TDK E02-0234-0 Chip Cap, 1608 J 47PF
C701 AVX E02-0383-0 Chip Tantal, 22uF-M/
10V(A)
C702 TDK E02-0040-0 Chip Cap, 1005 K
1000PF
C704 TDK E02-0040-0 Chip Cap, 1005 K
1000PF
C705 TDK E02-0006-0 Chip Cap, 1005 C 2PF
C706 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C707 TDK E02-0024-0 Chip Cap, 1005 D 9PF
C709 TDK E02-0011-0 Chip Cap, 1005 C 4PF
Circuit Ref. Supplier
Supplier
Part No.
Description
C710 MURATA E02-0426-0 Chip Trimmer Cap,
2PIE 6PF
C711 MURATA E02-0106-0 Chip Cap, 1005 J 13PF
10V
C712 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C714 TDK E02-0125-0 Chip Cap, 1005 K
1000PF
C715 AVX E02-0383-0 Chip Tantal, 22uF-M/
10V(A)
C716 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C717 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C718 TDK E02-0011-0 Chip Cap, 1005 C 4PF
C719 TDK E02-0019-0 Chip Cap, 1005 D 7PF
C721 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C722 MURATA E02-0426-0 Chip Trimmer Cap,
2PIE 6PF
C723 TDK E02-0026-0 Chip Cap, 1005 C
0.5PF
C724 MURATA E02-0091-0 Chip Cap, 1005 J 11PF
10V
C725 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C726 TDK E02-0026-0 Chip Cap, 1005 C
0.5PF
C727 TDK E02-0006-0 Chip Cap, 1005 C 2PF
C728 TDK E02-0016-0 Chip Cap, 1005 D 6PF
C729 TDK E02-0016-0 Chip Cap, 1005 D 6PF
C730 TDK E02-0006-0 Chip Cap, 1005 C 2PF
C731 TDK E02-0006-0 Chip Cap, 1005 C 2PF
C738 TDK E02-0019-0 Chip Cap, 1005 D 7PF
C739 TDK E02-0040-0 Chip Cap, 1005 K
1000PF
C740 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C741 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
Circuit Ref. Supplier
Supplier
Part No.
Description
