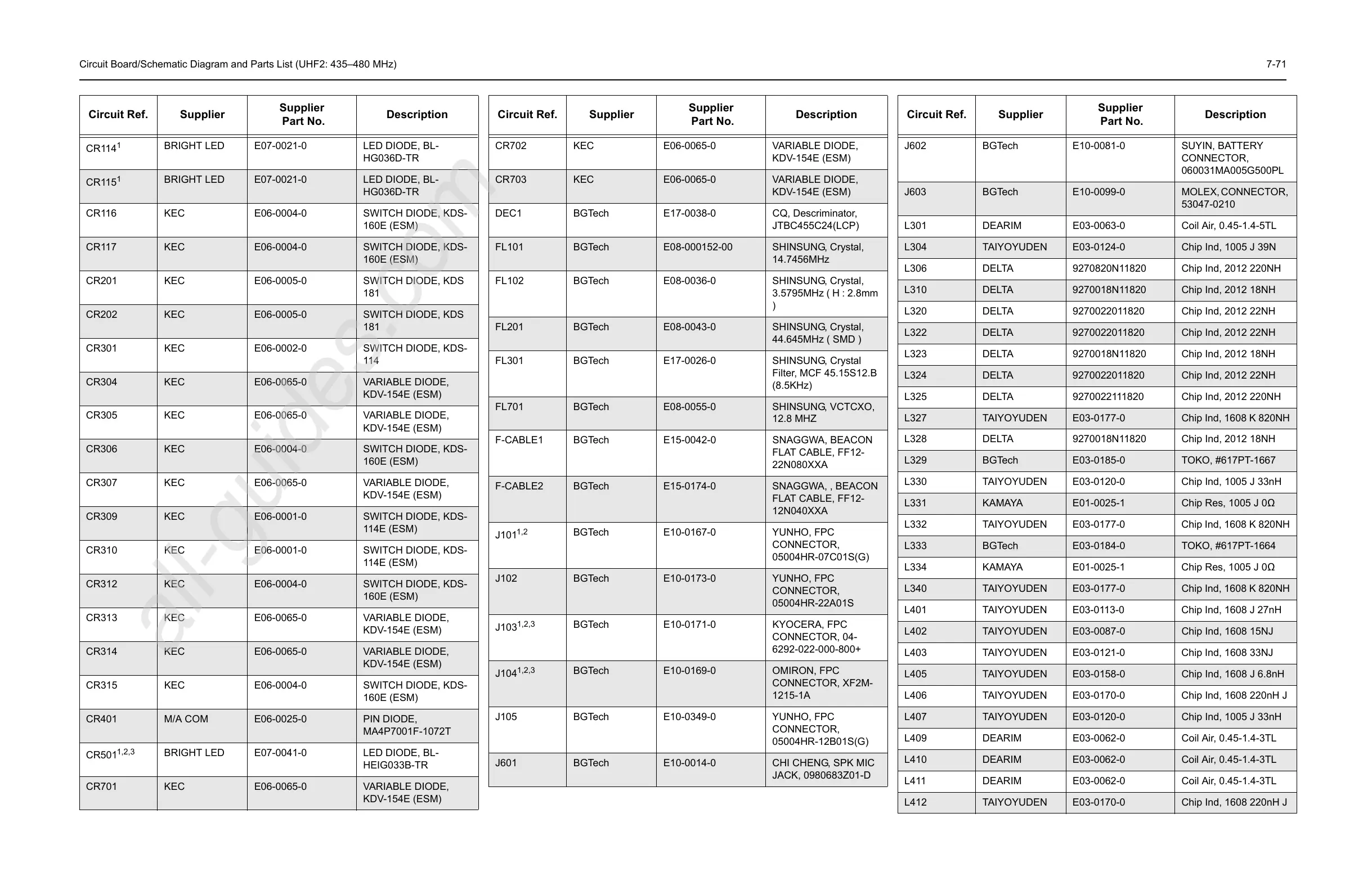

Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz) 7-71
CR114
1
BRIGHT LED E07-0021-0 LED DIODE, BL-
HG036D-TR
CR115
1
BRIGHT LED E07-0021-0 LED DIODE, BL-
HG036D-TR
CR116 KEC E06-0004-0 SWITCH DIODE, KDS-
160E (ESM)
CR117 KEC E06-0004-0 SWITCH DIODE, KDS-
160E (ESM)
CR201 KEC E06-0005-0 SWITCH DIODE, KDS
181
CR202 KEC E06-0005-0 SWITCH DIODE, KDS
181
CR301 KEC E06-0002-0 SWITCH DIODE, KDS-
114
CR304 KEC E06-0065-0 VARIABLE DIODE,
KDV-154E (ESM)
CR305 KEC E06-0065-0 VARIABLE DIODE,
KDV-154E (ESM)
CR306 KEC E06-0004-0 SWITCH DIODE, KDS-
160E (ESM)
CR307 KEC E06-0065-0 VARIABLE DIODE,
KDV-154E (ESM)
CR309 KEC E06-0001-0 SWITCH DIODE, KDS-
114E (ESM)
CR310 KEC E06-0001-0 SWITCH DIODE, KDS-
114E (ESM)
CR312 KEC E06-0004-0 SWITCH DIODE, KDS-
160E (ESM)
CR313 KEC E06-0065-0 VARIABLE DIODE,
KDV-154E (ESM)
CR314 KEC E06-0065-0 VARIABLE DIODE,
KDV-154E (ESM)
CR315 KEC E06-0004-0 SWITCH DIODE, KDS-
160E (ESM)
CR401 M/A COM E06-0025-0 PIN DIODE,
MA4P7001F-1072T
CR501
1,2,3
BRIGHT LED E07-0041-0 LED DIODE, BL-
HEIG033B-TR
CR701 KEC E06-0065-0 VARIABLE DIODE,
KDV-154E (ESM)
Circuit Ref. Supplier
Supplier
Part No.
Description
CR702 KEC E06-0065-0 VARIABLE DIODE,
KDV-154E (ESM)
CR703 KEC E06-0065-0 VARIABLE DIODE,
KDV-154E (ESM)
DEC1 BGTech E17-0038-0 CQ, Descriminator,
JTBC455C24(LCP)
FL101 BGTech E08-000152-00 SHINSUNG, Crystal,
14.7456MHz
FL102 BGTech E08-0036-0 SHINSUNG, Crystal,
3.5795MHz ( H : 2.8mm
)
FL201 BGTech E08-0043-0 SHINSUNG, Crystal,
44.645MHz ( SMD )
FL301 BGTech E17-0026-0 SHINSUNG, Crystal
Filter, MCF 45.15S12.B
(8.5KHz)
FL701 BGTech E08-0055-0 SHINSUNG, VCTCXO,
12.8 MHZ
F-CABLE1 BGTech E15-0042-0 SNAGGWA, BEACON
FLAT CABLE, FF12-
22N080XXA
F-CABLE2 BGTech E15-0174-0 SNAGGWA, , BEACON
FLAT CABLE, FF12-
12N040XXA
J101
1,2
BGTech E10-0167-0 YUNHO, FPC
CONNECTOR,
05004HR-07C01S(G)
J102 BGTech E10-0173-0 YUNHO, FPC
CONNECTOR,
05004HR-22A01S
J103
1,2,3
BGTech E10-0171-0 KYOCERA, FPC
CONNECTOR, 04-
6292-022-000-800+
J104
1,2,3
BGTech E10-0169-0 OMIRON, FPC
CONNECTOR, XF2M-
1215-1A
J105 BGTech E10-0349-0 YUNHO, FPC
CONNECTOR,
05004HR-12B01S(G)
J601 BGTech E10-0014-0 CHI CHENG, SPK MIC
JACK, 0980683Z01-D
Circuit Ref. Supplier
Supplier
Part No.
Description
J602 BGTech E10-0081-0 SUYIN, BATTERY
CONNECTOR,
060031MA005G500PL
J603 BGTech E10-0099-0 MOLEX, CONNECTOR,
53047-0210
L301 DEARIM E03-0063-0 Coil Air, 0.45-1.4-5TL
L304 TAIYOYUDEN E03-0124-0 Chip Ind, 1005 J 39N
L306 DELTA 9270820N11820 Chip Ind, 2012 220NH
L310 DELTA 9270018N11820 Chip Ind, 2012 18NH
L320 DELTA 9270022011820 Chip Ind, 2012 22NH
L322 DELTA 9270022011820 Chip Ind, 2012 22NH
L323 DELTA 9270018N11820 Chip Ind, 2012 18NH
L324 DELTA 9270022011820 Chip Ind, 2012 22NH
L325 DELTA 9270022111820 Chip Ind, 2012 220NH
L327 TAIYOYUDEN E03-0177-0 Chip Ind, 1608 K 820NH
L328 DELTA 9270018N11820 Chip Ind, 2012 18NH
L329 BGTech E03-0185-0 TOKO, #617PT-1667
L330 TAIYOYUDEN E03-0120-0 Chip Ind, 1005 J 33nH
L331 KAMAYA E01-0025-1 Chip Res, 1005 J 0
L332 TAIYOYUDEN E03-0177-0 Chip Ind, 1608 K 820NH
L333 BGTech E03-0184-0 TOKO, #617PT-1664
L334 KAMAYA E01-0025-1 Chip Res, 1005 J 0
L340 TAIYOYUDEN E03-0177-0 Chip Ind, 1608 K 820NH
L401 TAIYOYUDEN E03-0113-0 Chip Ind, 1608 J 27nH
L402 TAIYOYUDEN E03-0087-0 Chip Ind, 1608 15NJ
L403 TAIYOYUDEN E03-0121-0 Chip Ind, 1608 33NJ
L405 TAIYOYUDEN E03-0158-0 Chip Ind, 1608 J 6.8nH
L406 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L407 TAIYOYUDEN E03-0120-0 Chip Ind, 1005 J 33nH
L409 DEARIM E03-0062-0 Coil Air, 0.45-1.4-3TL
L410 DEARIM E03-0062-0 Coil Air, 0.45-1.4-3TL
L411 DEARIM E03-0062-0 Coil Air, 0.45-1.4-3TL
L412 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
Circuit Ref. Supplier
Supplier
Part No.
Description
To Next Page
