Motorola P100 Series Detailed Service Manual

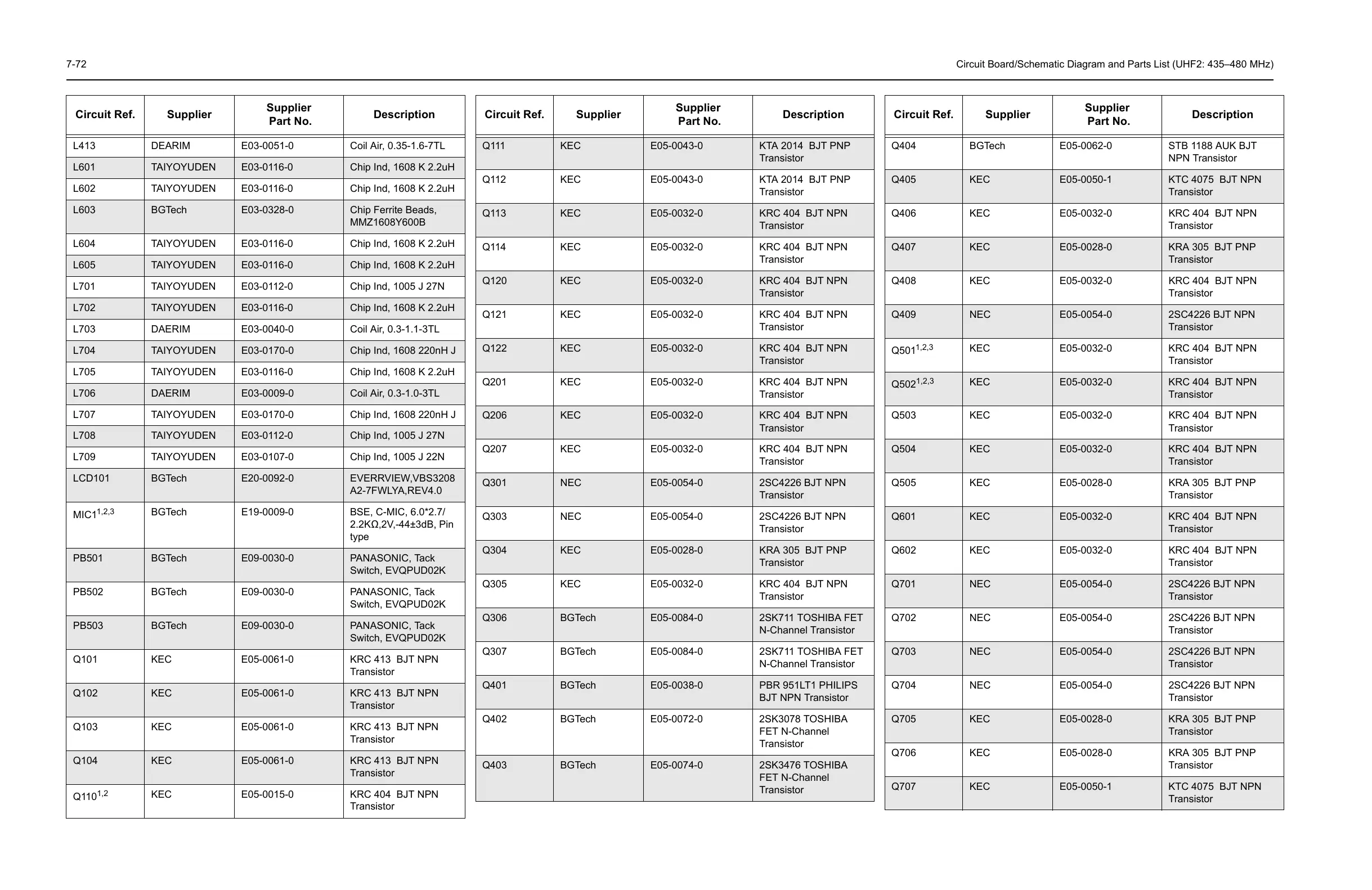

7-72 Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz)
L413 DEARIM E03-0051-0 Coil Air, 0.35-1.6-7TL
L601 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L602 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L603 BGTech E03-0328-0 Chip Ferrite Beads,
MMZ1608Y600B
L604 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L605 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L701 TAIYOYUDEN E03-0112-0 Chip Ind, 1005 J 27N
L702 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L703 DAERIM E03-0040-0 Coil Air, 0.3-1.1-3TL
L704 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L705 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L706 DAERIM E03-0009-0 Coil Air, 0.3-1.0-3TL
L707 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L708 TAIYOYUDEN E03-0112-0 Chip Ind, 1005 J 27N
L709 TAIYOYUDEN E03-0107-0 Chip Ind, 1005 J 22N
LCD101 BGTech E20-0092-0 EVERRVIEW,VBS3208
A2-7FWLYA,REV4.0
MIC1
1,2,3
BGTech E19-0009-0 BSE, C-MIC, 6.0*2.7/
2.2K,2V,-44±3dB, Pin
type
PB501 BGTech E09-0030-0 PANASONIC, Tack
Switch, EVQPUD02K
PB502 BGTech E09-0030-0 PANASONIC, Tack
Switch, EVQPUD02K
PB503 BGTech E09-0030-0 PANASONIC, Tack
Switch, EVQPUD02K
Q101 KEC E05-0061-0 KRC 413 BJT NPN
Transistor
Q102 KEC E05-0061-0 KRC 413 BJT NPN
Transistor
Q103 KEC E05-0061-0 KRC 413 BJT NPN
Transistor
Q104 KEC E05-0061-0 KRC 413 BJT NPN
Transistor
Q110
1,2
KEC E05-0015-0 KRC 404 BJT NPN
Transistor
Circuit Ref. Supplier
Supplier
Part No.
Description
Q111 KEC E05-0043-0 KTA 2014 BJT PNP
Transistor
Q112 KEC E05-0043-0 KTA 2014 BJT PNP
Transistor
Q113 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q114 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q120 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q121 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q122 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q201 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q206 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q207 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q301 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q303 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q304 KEC E05-0028-0 KRA 305 BJT PNP
Transistor
Q305 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q306 BGTech E05-0084-0 2SK711 TOSHIBA FET
N-Channel Transistor
Q307 BGTech E05-0084-0 2SK711 TOSHIBA FET
N-Channel Transistor
Q401 BGTech E05-0038-0 PBR 951LT1 PHILIPS
BJT NPN Transistor
Q402 BGTech E05-0072-0 2SK3078 TOSHIBA
FET N-Channel
Transistor
Q403 BGTech E05-0074-0 2SK3476 TOSHIBA
FET N-Channel
Transistor
Circuit Ref. Supplier
Supplier
Part No.
Description
Q404 BGTech E05-0062-0 STB 1188 AUK BJT
NPN Transistor
Q405 KEC E05-0050-1 KTC 4075 BJT NPN
Transistor
Q406 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q407 KEC E05-0028-0 KRA 305 BJT PNP
Transistor
Q408 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q409 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q501
1,2,3
KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q502
1,2,3
KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q503 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q504 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q505 KEC E05-0028-0 KRA 305 BJT PNP
Transistor
Q601 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q602 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q701 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q702 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q703 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q704 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q705 KEC E05-0028-0 KRA 305 BJT PNP
Transistor
Q706 KEC E05-0028-0 KRA 305 BJT PNP
Transistor
Q707 KEC E05-0050-1 KTC 4075 BJT NPN
Transistor
Circuit Ref. Supplier
Supplier
Part No.
Description
