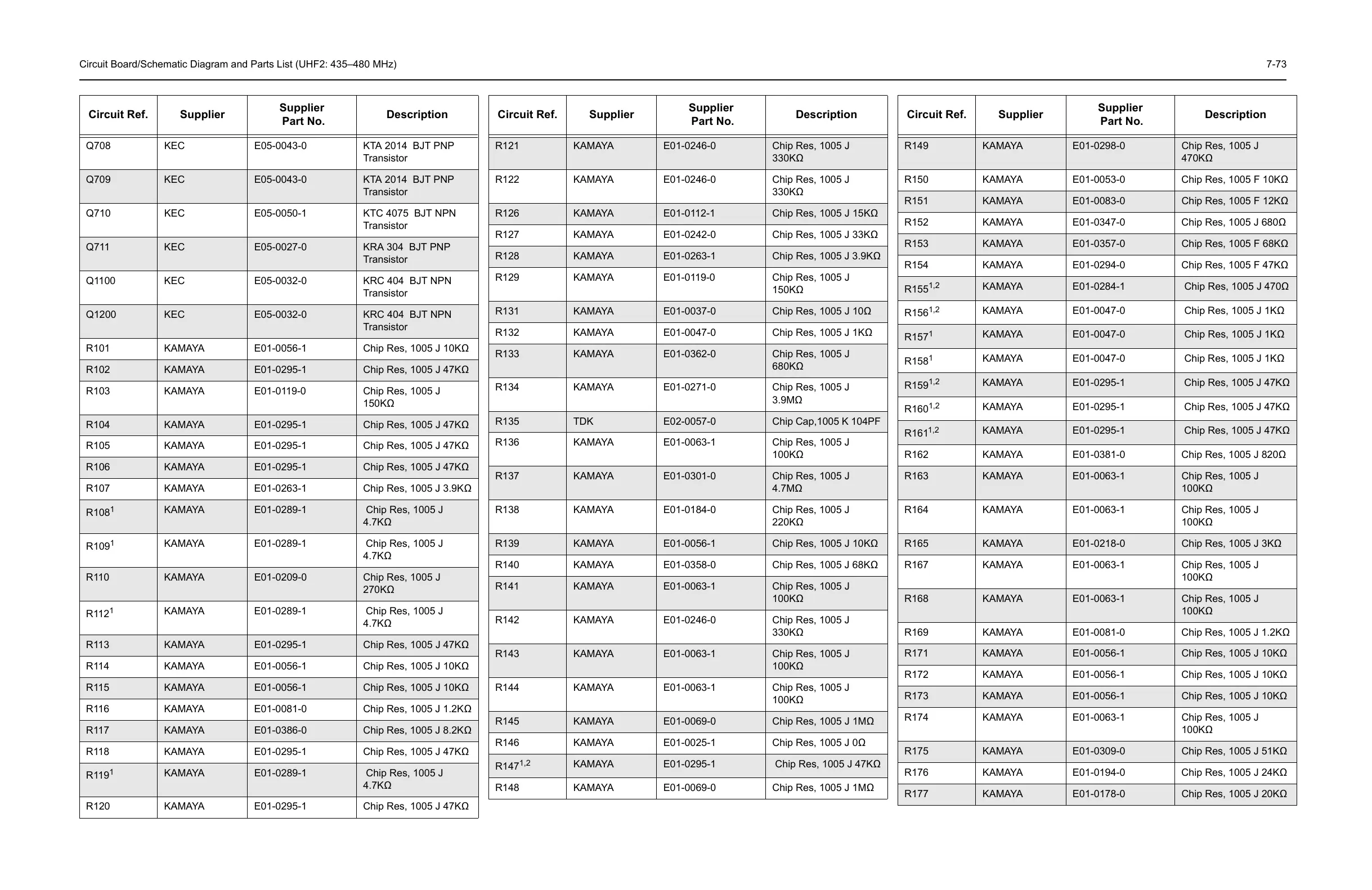

Motorola P100 Series Detailed Service Manual

Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz) 7-73
Q708 KEC E05-0043-0 KTA 2014 BJT PNP
Transistor
Q709 KEC E05-0043-0 KTA 2014 BJT PNP
Transistor
Q710 KEC E05-0050-1 KTC 4075 BJT NPN
Transistor
Q711 KEC E05-0027-0 KRA 304 BJT PNP
Transistor
Q1100 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q1200 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
R101 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R102 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R103 KAMAYA E01-0119-0 Chip Res, 1005 J
150K
R104 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R105 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R106 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R107 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K
R108
1
KAMAYA E01-0289-1 Chip Res, 1005 J
4.7K
R109
1
KAMAYA E01-0289-1 Chip Res, 1005 J
4.7K
R110 KAMAYA E01-0209-0 Chip Res, 1005 J
270K
R112
1
KAMAYA E01-0289-1 Chip Res, 1005 J
4.7K
R113 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R114 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R115 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R116 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K
R117 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K
R118 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R119
1
KAMAYA E01-0289-1 Chip Res, 1005 J
4.7K
R120 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
Circuit Ref. Supplier
Supplier
Part No.
Description
R121 KAMAYA E01-0246-0 Chip Res, 1005 J
330K
R122 KAMAYA E01-0246-0 Chip Res, 1005 J
330K
R126 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R127 KAMAYA E01-0242-0 Chip Res, 1005 J 33K
R128 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K
R129 KAMAYA E01-0119-0 Chip Res, 1005 J
150K
R131 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R132 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R133 KAMAYA E01-0362-0 Chip Res, 1005 J
680K
R134 KAMAYA E01-0271-0 Chip Res, 1005 J
3.9M
R135 TDK E02-0057-0 Chip Cap,1005 K 104PF
R136 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R137 KAMAYA E01-0301-0 Chip Res, 1005 J
4.7M
R138 KAMAYA E01-0184-0 Chip Res, 1005 J
220K
R139 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R140 KAMAYA E01-0358-0 Chip Res, 1005 J 68K
R141 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R142 KAMAYA E01-0246-0 Chip Res, 1005 J
330K
R143 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R144 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R145 KAMAYA E01-0069-0 Chip Res, 1005 J 1M
R146 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R147
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R148 KAMAYA E01-0069-0 Chip Res, 1005 J 1M
Circuit Ref. Supplier
Supplier
Part No.
Description
R149 KAMAYA E01-0298-0 Chip Res, 1005 J
470K
R150 KAMAYA E01-0053-0 Chip Res, 1005 F 10K
R151 KAMAYA E01-0083-0 Chip Res, 1005 F 12K
R152 KAMAYA E01-0347-0 Chip Res, 1005 J 680
R153 KAMAYA E01-0357-0 Chip Res, 1005 F 68K
R154 KAMAYA E01-0294-0 Chip Res, 1005 F 47K
R155
1,2
KAMAYA E01-0284-1 Chip Res, 1005 J 470
R156
1,2
KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R157
1
KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R158
1
KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R159
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R160
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R161
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R162 KAMAYA E01-0381-0 Chip Res, 1005 J 820
R163 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R164 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R165 KAMAYA E01-0218-0 Chip Res, 1005 J 3K
R167 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R168 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R169 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K
R171 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R172 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R173 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R174 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R175 KAMAYA E01-0309-0 Chip Res, 1005 J 51K
R176 KAMAYA E01-0194-0 Chip Res, 1005 J 24K
R177 KAMAYA E01-0178-0 Chip Res, 1005 J 20K
Circuit Ref. Supplier
Supplier
Part No.
Description
