Motorola P100 Series - Page 125

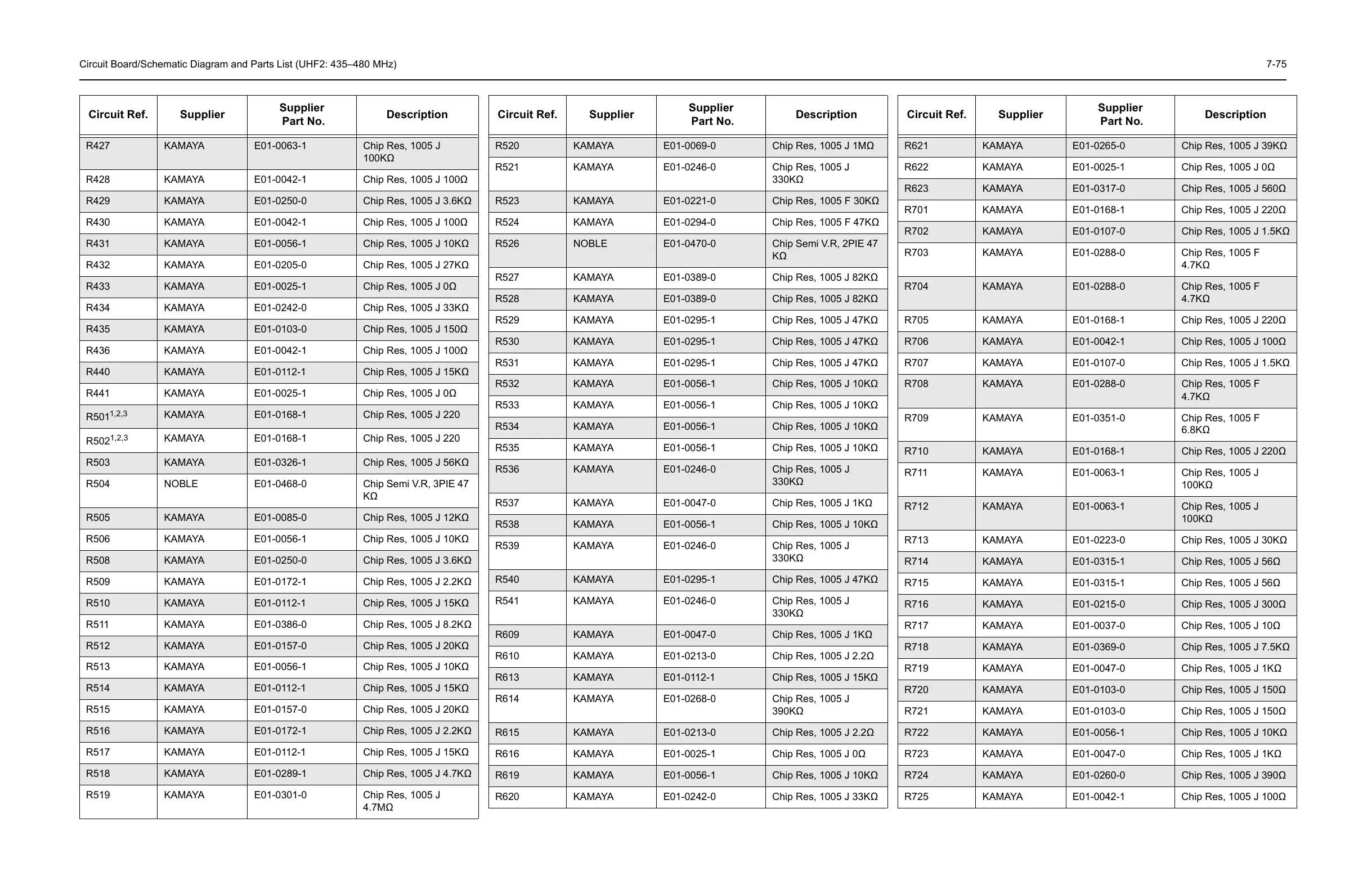

Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz) 7-75
R427 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R428 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R429 KAMAYA E01-0250-0 Chip Res, 1005 J 3.6K
R430 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R431 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R432 KAMAYA E01-0205-0 Chip Res, 1005 J 27K
R433 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R434 KAMAYA E01-0242-0 Chip Res, 1005 J 33K
R435 KAMAYA E01-0103-0 Chip Res, 1005 J 150
R436 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R440 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R441 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R501
1,2,3
KAMAYA E01-0168-1 Chip Res, 1005 J 220
R502
1,2,3
KAMAYA E01-0168-1 Chip Res, 1005 J 220
R503 KAMAYA E01-0326-1 Chip Res, 1005 J 56K
R504 NOBLE E01-0468-0 Chip Semi V.R, 3PIE 47
K
R505 KAMAYA E01-0085-0 Chip Res, 1005 J 12K
R506 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R508 KAMAYA E01-0250-0 Chip Res, 1005 J 3.6K
R509 KAMAYA E01-0172-1 Chip Res, 1005 J 2.2K
R510 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R511 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K
R512 KAMAYA E01-0157-0 Chip Res, 1005 J 20K
R513 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R514 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R515 KAMAYA E01-0157-0 Chip Res, 1005 J 20K
R516 KAMAYA E01-0172-1 Chip Res, 1005 J 2.2K
R517 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R518 KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R519 KAMAYA E01-0301-0 Chip Res, 1005 J
4.7M
Circuit Ref. Supplier
Supplier
Part No.
Description
R520 KAMAYA E01-0069-0 Chip Res, 1005 J 1M
R521 KAMAYA E01-0246-0 Chip Res, 1005 J
330K
R523 KAMAYA E01-0221-0 Chip Res, 1005 F 30K
R524 KAMAYA E01-0294-0 Chip Res, 1005 F 47K
R526 NOBLE E01-0470-0 Chip Semi V.R, 2PIE 47
K
R527 KAMAYA E01-0389-0 Chip Res, 1005 J 82K
R528 KAMAYA E01-0389-0 Chip Res, 1005 J 82K
R529 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R530 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R531 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R532 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R533 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R534 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R535 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R536 KAMAYA E01-0246-0 Chip Res, 1005 J
330K
R537 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R538 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R539 KAMAYA E01-0246-0 Chip Res, 1005 J
330K
R540 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R541 KAMAYA E01-0246-0 Chip Res, 1005 J
330K
R609 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R610 KAMAYA E01-0213-0 Chip Res, 1005 J 2.2
R613 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R614 KAMAYA E01-0268-0 Chip Res, 1005 J
390K
R615 KAMAYA E01-0213-0 Chip Res, 1005 J 2.2
R616 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R619 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R620 KAMAYA E01-0242-0 Chip Res, 1005 J 33K
Circuit Ref. Supplier
Supplier
Part No.
Description
R621 KAMAYA E01-0265-0 Chip Res, 1005 J 39K
R622 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R623 KAMAYA E01-0317-0 Chip Res, 1005 J 560
R701 KAMAYA E01-0168-1 Chip Res, 1005 J 220
R702 KAMAYA E01-0107-0 Chip Res, 1005 J 1.5K
R703 KAMAYA E01-0288-0 Chip Res, 1005 F
4.7K
R704 KAMAYA E01-0288-0 Chip Res, 1005 F
4.7K
R705 KAMAYA E01-0168-1 Chip Res, 1005 J 220
R706 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R707 KAMAYA E01-0107-0 Chip Res, 1005 J 1.5K
R708 KAMAYA E01-0288-0 Chip Res, 1005 F
4.7K
R709 KAMAYA E01-0351-0 Chip Res, 1005 F
6.8K
R710 KAMAYA E01-0168-1 Chip Res, 1005 J 220
R711 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R712 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R713 KAMAYA E01-0223-0 Chip Res, 1005 J 30K
R714 KAMAYA E01-0315-1 Chip Res, 1005 J 56
R715 KAMAYA E01-0315-1 Chip Res, 1005 J 56
R716 KAMAYA E01-0215-0 Chip Res, 1005 J 300
R717 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R718 KAMAYA E01-0369-0 Chip Res, 1005 J 7.5K
R719 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R720 KAMAYA E01-0103-0 Chip Res, 1005 J 150
R721 KAMAYA E01-0103-0 Chip Res, 1005 J 150
R722 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R723 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R724 KAMAYA E01-0260-0 Chip Res, 1005 J 390
R725 KAMAYA E01-0042-1 Chip Res, 1005 J 100
Circuit Ref. Supplier
Supplier
Part No.
Description
