Motorola P100 Series Detailed Service Manual

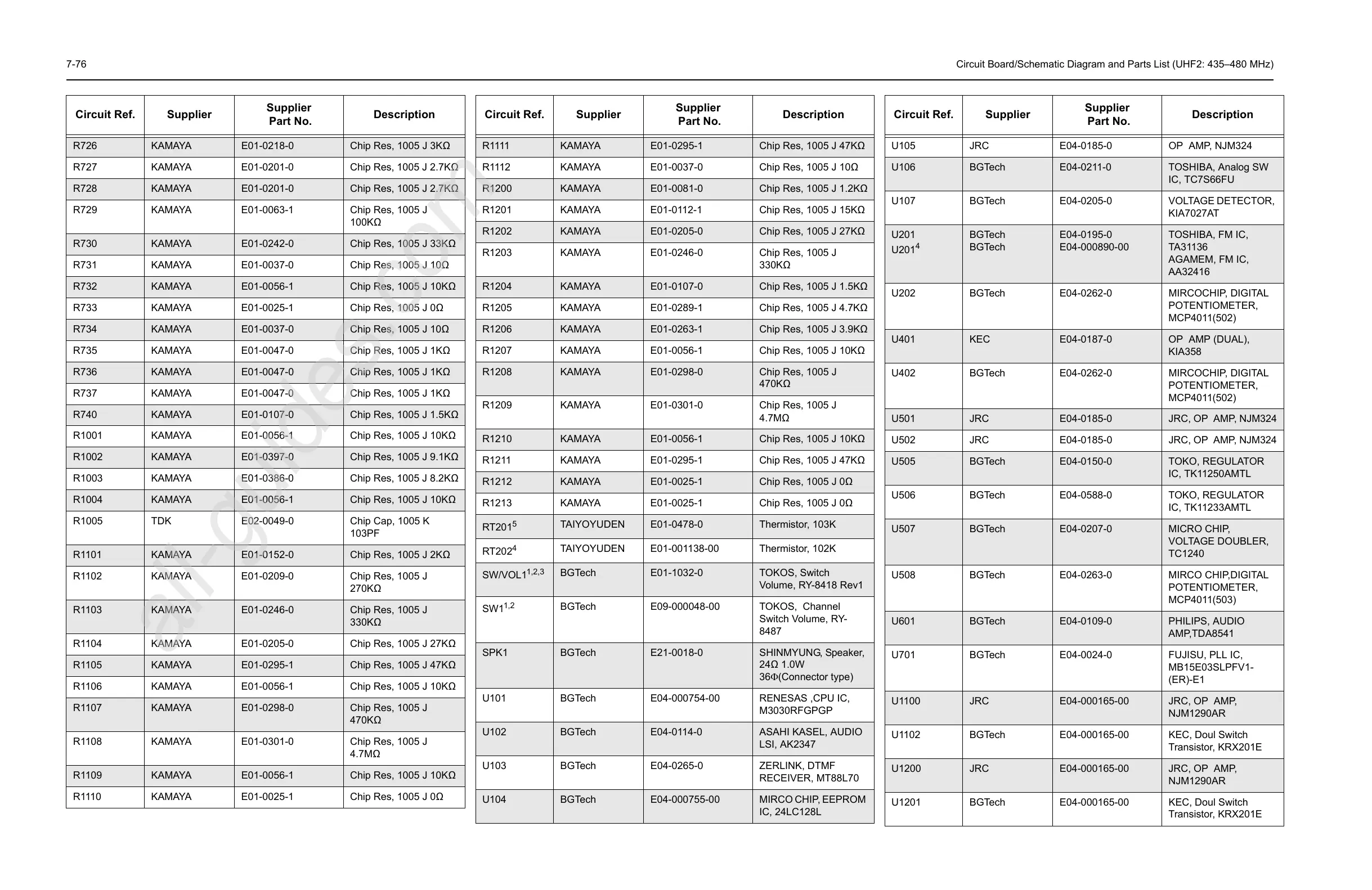

7-76 Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz)
R726 KAMAYA E01-0218-0 Chip Res, 1005 J 3K
R727 KAMAYA E01-0201-0 Chip Res, 1005 J 2.7K
R728 KAMAYA E01-0201-0 Chip Res, 1005 J 2.7K
R729 KAMAYA E01-0063-1 Chip Res, 1005 J
100K
R730 KAMAYA E01-0242-0 Chip Res, 1005 J 33K
R731 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R732 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R733 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R734 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R735 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R736 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R737 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R740 KAMAYA E01-0107-0 Chip Res, 1005 J 1.5K
R1001 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1002 KAMAYA E01-0397-0 Chip Res, 1005 J 9.1K
R1003 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K
R1004 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1005 TDK E02-0049-0 Chip Cap, 1005 K
103PF
R1101 KAMAYA E01-0152-0 Chip Res, 1005 J 2K
R1102 KAMAYA E01-0209-0 Chip Res, 1005 J
270K
R1103 KAMAYA E01-0246-0 Chip Res, 1005 J
330K
R1104 KAMAYA E01-0205-0 Chip Res, 1005 J 27K
R1105 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R1106 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1107 KAMAYA E01-0298-0 Chip Res, 1005 J
470K
R1108 KAMAYA E01-0301-0 Chip Res, 1005 J
4.7M
R1109 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1110 KAMAYA E01-0025-1 Chip Res, 1005 J 0
Circuit Ref. Supplier
Supplier
Part No.
Description
R1111 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R1112 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R1200 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K
R1201 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R1202 KAMAYA E01-0205-0 Chip Res, 1005 J 27K
R1203 KAMAYA E01-0246-0 Chip Res, 1005 J
330K
R1204 KAMAYA E01-0107-0 Chip Res, 1005 J 1.5K
R1205 KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R1206 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K
R1207 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1208 KAMAYA E01-0298-0 Chip Res, 1005 J
470K
R1209 KAMAYA E01-0301-0 Chip Res, 1005 J
4.7M
R1210 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1211 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R1212 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R1213 KAMAYA E01-0025-1 Chip Res, 1005 J 0
RT201
5
TAIYOYUDEN E01-0478-0 Thermistor, 103K
RT202
4
TAIYOYUDEN E01-001138-00 Thermistor, 102K
SW/VOL1
1,2,3
BGTech E01-1032-0 TOKOS, Switch
Volume, RY-8418 Rev1
SW1
1,2
BGTech E09-000048-00 TOKOS, Channel
Switch Volume, RY-
8487
SPK1 BGTech E21-0018-0 SHINMYUNG, Speaker,
24 1.0W
36Φ(Connector type)
U101 BGTech E04-000754-00 RENESAS ,CPU IC,
M3030RFGPGP
U102 BGTech E04-0114-0 ASAHI KASEL, AUDIO
LSI, AK2347
U103 BGTech E04-0265-0 ZERLINK, DTMF
RECEIVER, MT88L70
U104 BGTech E04-000755-00 MIRCO CHIP, EEPROM
IC, 24LC128L
Circuit Ref. Supplier
Supplier
Part No.
Description
U105 JRC E04-0185-0 OP AMP, NJM324
U106 BGTech E04-0211-0 TOSHIBA, Analog SW
IC, TC7S66FU
U107 BGTech E04-0205-0 VOLTAGE DETECTOR,
KIA7027AT
U201
U201
4
BGTech
BGTech
E04-0195-0
E04-000890-00
TOSHIBA, FM IC,
TA31136
AGAMEM, FM IC,
AA32416
U202 BGTech E04-0262-0 MIRCOCHIP, DIGITAL
POTENTIOMETER,
MCP4011(502)
U401 KEC E04-0187-0 OP AMP (DUAL),
KIA358
U402 BGTech E04-0262-0 MIRCOCHIP, DIGITAL
POTENTIOMETER,
MCP4011(502)
U501 JRC E04-0185-0 JRC, OP AMP, NJM324
U502 JRC E04-0185-0 JRC, OP AMP, NJM324
U505 BGTech E04-0150-0 TOKO, REGULATOR
IC, TK11250AMTL
U506 BGTech E04-0588-0 TOKO, REGULATOR
IC, TK11233AMTL
U507 BGTech E04-0207-0 MICRO CHIP,
VOLTAGE DOUBLER,
TC1240
U508 BGTech E04-0263-0 MIRCO CHIP,DIGITAL
POTENTIOMETER,
MCP4011(503)
U601 BGTech E04-0109-0 PHILIPS, AUDIO
AMP,TDA8541
U701 BGTech E04-0024-0 FUJISU, PLL IC,
MB15E03SLPFV1-
(ER)-E1
U1100 JRC E04-000165-00 JRC, OP AMP,
NJM1290AR
U1102 BGTech E04-000165-00 KEC, Doul Switch
Transistor, KRX201E
U1200 JRC E04-000165-00 JRC, OP AMP,
NJM1290AR
U1201 BGTech E04-000165-00 KEC, Doul Switch
Transistor, KRX201E
Circuit Ref. Supplier
Supplier
Part No.
Description
