Motorola P100 Series Detailed Service Manual

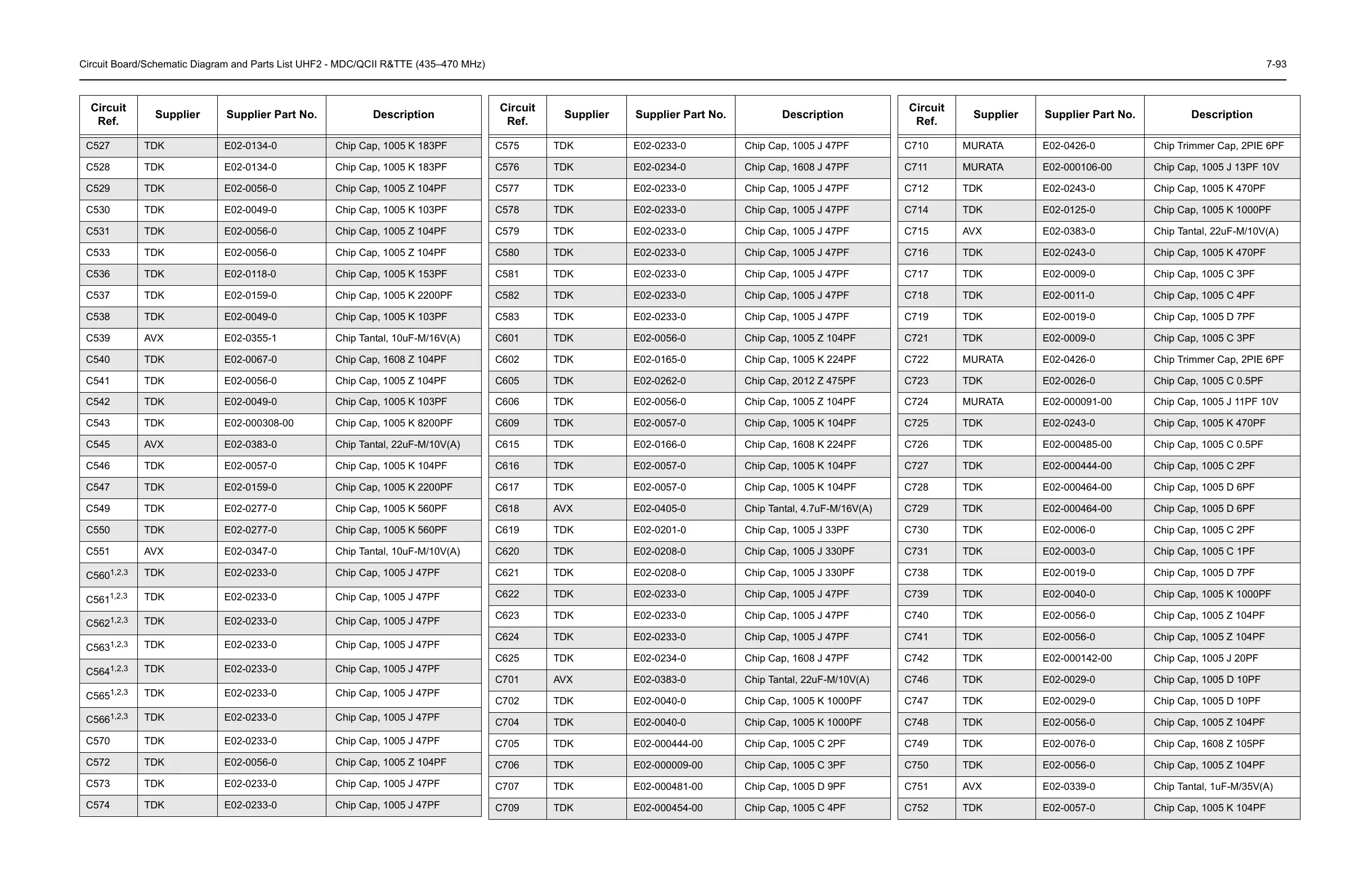

Circuit Board/Schematic Diagram and Parts List UHF2 - MDC/QCII R&TTE (435–470 MHz) 7-93
C527 TDK E02-0134-0 Chip Cap, 1005 K 183PF
C528 TDK E02-0134-0 Chip Cap, 1005 K 183PF
C529 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C530 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C531 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C533 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C536 TDK E02-0118-0 Chip Cap, 1005 K 153PF
C537 TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C538 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C539 AVX E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C540 TDK E02-0067-0 Chip Cap, 1608 Z 104PF
C541 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C542 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C543 TDK E02-000308-00 Chip Cap, 1005 K 8200PF
C545 AVX E02-0383-0 Chip Tantal, 22uF-M/10V(A)
C546 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C547 TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C549 TDK E02-0277-0 Chip Cap, 1005 K 560PF
C550 TDK E02-0277-0 Chip Cap, 1005 K 560PF
C551 AVX E02-0347-0 Chip Tantal, 10uF-M/10V(A)
C560
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C561
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C562
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C563
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C564
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C565
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C566
1,2,3
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C570 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C572 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C573 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C574 TDK E02-0233-0 Chip Cap, 1005 J 47PF
Circuit
Ref.
Supplier Supplier Part No. Description
C575 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C576 TDK E02-0234-0 Chip Cap, 1608 J 47PF
C577 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C578 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C579 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C580 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C581 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C582 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C583 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C601 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C602 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C605 TDK E02-0262-0 Chip Cap, 2012 Z 475PF
C606 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C609 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C615 TDK E02-0166-0 Chip Cap, 1608 K 224PF
C616 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C617 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C618 AVX E02-0405-0 Chip Tantal, 4.7uF-M/16V(A)
C619 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C620 TDK E02-0208-0 Chip Cap, 1005 J 330PF
C621 TDK E02-0208-0 Chip Cap, 1005 J 330PF
C622 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C623 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C624 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C625 TDK E02-0234-0 Chip Cap, 1608 J 47PF
C701 AVX E02-0383-0 Chip Tantal, 22uF-M/10V(A)
C702 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C704 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C705 TDK E02-000444-00 Chip Cap, 1005 C 2PF
C706 TDK E02-000009-00 Chip Cap, 1005 C 3PF
C707 TDK E02-000481-00 Chip Cap, 1005 D 9PF
C709 TDK E02-000454-00 Chip Cap, 1005 C 4PF
Circuit
Ref.
Supplier Supplier Part No. Description
C710 MURATA E02-0426-0 Chip Trimmer Cap, 2PIE 6PF
C711 MURATA E02-000106-00 Chip Cap, 1005 J 13PF 10V
C712 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C714 TDK E02-0125-0 Chip Cap, 1005 K 1000PF
C715 AVX E02-0383-0 Chip Tantal, 22uF-M/10V(A)
C716 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C717 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C718 TDK E02-0011-0 Chip Cap, 1005 C 4PF
C719 TDK E02-0019-0 Chip Cap, 1005 D 7PF
C721 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C722 MURATA E02-0426-0 Chip Trimmer Cap, 2PIE 6PF
C723 TDK E02-0026-0 Chip Cap, 1005 C 0.5PF
C724 MURATA E02-000091-00 Chip Cap, 1005 J 11PF 10V
C725 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C726 TDK E02-000485-00 Chip Cap, 1005 C 0.5PF
C727 TDK E02-000444-00 Chip Cap, 1005 C 2PF
C728 TDK E02-000464-00 Chip Cap, 1005 D 6PF
C729 TDK E02-000464-00 Chip Cap, 1005 D 6PF
C730 TDK E02-0006-0 Chip Cap, 1005 C 2PF
C731 TDK E02-0003-0 Chip Cap, 1005 C 1PF
C738 TDK E02-0019-0 Chip Cap, 1005 D 7PF
C739 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C740 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C741 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C742 TDK E02-000142-00 Chip Cap, 1005 J 20PF
C746 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C747 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C748 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C749 TDK E02-0076-0 Chip Cap, 1608 Z 105PF
C750 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C751 AVX E02-0339-0 Chip Tantal, 1uF-M/35V(A)
C752 TDK E02-0057-0 Chip Cap, 1005 K 104PF
Circuit
Ref.
Supplier Supplier Part No. Description
