Motorola P100 Series Detailed Service Manual

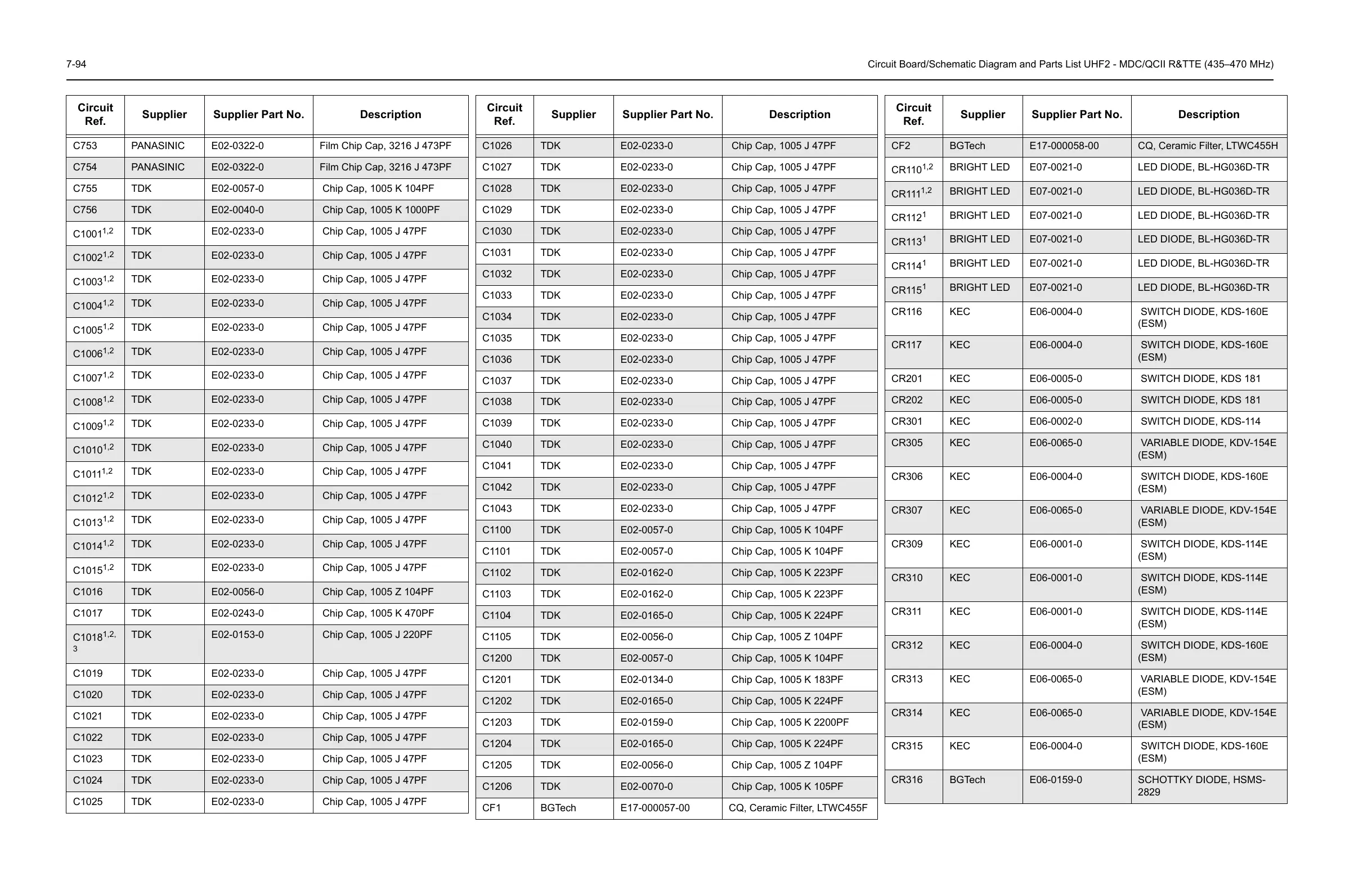

7-94 Circuit Board/Schematic Diagram and Parts List UHF2 - MDC/QCII R&TTE (435–470 MHz)
C753 PANASINIC E02-0322-0 Film Chip Cap, 3216 J 473PF
C754 PANASINIC E02-0322-0 Film Chip Cap, 3216 J 473PF
C755 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C756 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C1001
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1002
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1003
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1004
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1005
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1006
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1007
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1008
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1009
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1010
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1011
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1012
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1013
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1014
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1015
1,2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1016 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C1017 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C1018
1,2,
3
TDK E02-0153-0 Chip Cap, 1005 J 220PF
C1019 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1020 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1021 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1022 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1023 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1024 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1025 TDK E02-0233-0 Chip Cap, 1005 J 47PF
Circuit
Ref.
Supplier Supplier Part No. Description
C1026 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1027 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1028 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1029 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1030 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1031 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1032 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1033 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1034 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1035 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1036 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1037 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1038 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1039 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1040 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1041 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1042 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1043 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1100 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C1101 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C1102 TDK E02-0162-0 Chip Cap, 1005 K 223PF
C1103 TDK E02-0162-0 Chip Cap, 1005 K 223PF
C1104 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C1105 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C1200 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C1201 TDK E02-0134-0 Chip Cap, 1005 K 183PF
C1202 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C1203 TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C1204 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C1205 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C1206 TDK E02-0070-0 Chip Cap, 1005 K 105PF
CF1 BGTech E17-000057-00 CQ, Ceramic Filter, LTWC455F
Circuit
Ref.
Supplier Supplier Part No. Description
CF2 BGTech E17-000058-00 CQ, Ceramic Filter, LTWC455H
CR110
1,2
BRIGHT LED E07-0021-0 LED DIODE, BL-HG036D-TR
CR111
1,2
BRIGHT LED E07-0021-0 LED DIODE, BL-HG036D-TR
CR112
1
BRIGHT LED E07-0021-0 LED DIODE, BL-HG036D-TR
CR113
1
BRIGHT LED E07-0021-0 LED DIODE, BL-HG036D-TR
CR114
1
BRIGHT LED E07-0021-0 LED DIODE, BL-HG036D-TR
CR115
1
BRIGHT LED E07-0021-0 LED DIODE, BL-HG036D-TR
CR116 KEC E06-0004-0 SWITCH DIODE, KDS-160E
(ESM)
CR117 KEC E06-0004-0 SWITCH DIODE, KDS-160E
(ESM)
CR201 KEC E06-0005-0 SWITCH DIODE, KDS 181
CR202 KEC E06-0005-0 SWITCH DIODE, KDS 181
CR301 KEC E06-0002-0 SWITCH DIODE, KDS-114
CR305 KEC E06-0065-0 VARIABLE DIODE, KDV-154E
(ESM)
CR306 KEC E06-0004-0 SWITCH DIODE, KDS-160E
(ESM)
CR307 KEC E06-0065-0 VARIABLE DIODE, KDV-154E
(ESM)
CR309 KEC E06-0001-0 SWITCH DIODE, KDS-114E
(ESM)
CR310 KEC E06-0001-0 SWITCH DIODE, KDS-114E
(ESM)
CR311 KEC E06-0001-0 SWITCH DIODE, KDS-114E
(ESM)
CR312 KEC E06-0004-0 SWITCH DIODE, KDS-160E
(ESM)
CR313 KEC E06-0065-0 VARIABLE DIODE, KDV-154E
(ESM)
CR314 KEC E06-0065-0 VARIABLE DIODE, KDV-154E
(ESM)
CR315 KEC E06-0004-0 SWITCH DIODE, KDS-160E
(ESM)
CR316 BGTech E06-0159-0 SCHOTTKY DIODE, HSMS-
2829
Circuit
Ref.
Supplier Supplier Part No. Description
