Motorola P100 Series Detailed Service Manual

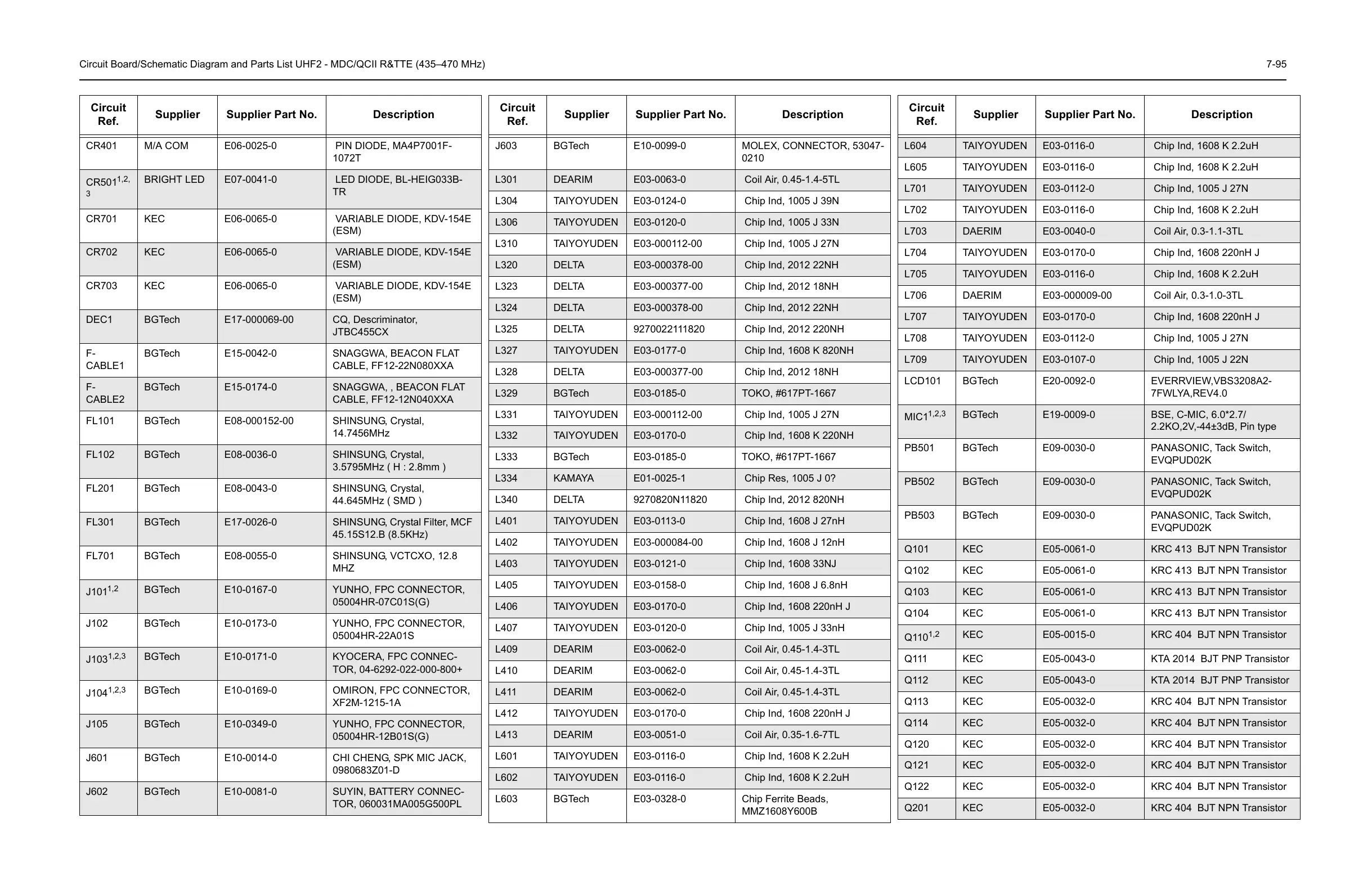

Circuit Board/Schematic Diagram and Parts List UHF2 - MDC/QCII R&TTE (435–470 MHz) 7-95
CR401 M/A COM E06-0025-0 PIN DIODE, MA4P7001F-
1072T
CR501
1,2,
3
BRIGHT LED E07-0041-0 LED DIODE, BL-HEIG033B-
TR
CR701 KEC E06-0065-0 VARIABLE DIODE, KDV-154E
(ESM)
CR702 KEC E06-0065-0 VARIABLE DIODE, KDV-154E
(ESM)
CR703 KEC E06-0065-0 VARIABLE DIODE, KDV-154E
(ESM)
DEC1 BGTech E17-000069-00 CQ, Descriminator,
JTBC455CX
F-
CABLE1
BGTech E15-0042-0 SNAGGWA, BEACON FLAT
CABLE, FF12-22N080XXA
F-
CABLE2
BGTech E15-0174-0 SNAGGWA, , BEACON FLAT
CABLE, FF12-12N040XXA
FL101 BGTech E08-000152-00 SHINSUNG, Crystal,
14.7456MHz
FL102 BGTech E08-0036-0 SHINSUNG, Crystal,
3.5795MHz ( H : 2.8mm )
FL201 BGTech E08-0043-0 SHINSUNG, Crystal,
44.645MHz ( SMD )
FL301 BGTech E17-0026-0 SHINSUNG, Crystal Filter, MCF
45.15S12.B (8.5KHz)
FL701 BGTech E08-0055-0 SHINSUNG, VCTCXO, 12.8
MHZ
J101
1,2
BGTech E10-0167-0 YUNHO, FPC CONNECTOR,
05004HR-07C01S(G)
J102 BGTech E10-0173-0 YUNHO, FPC CONNECTOR,
05004HR-22A01S
J103
1,2,3
BGTech E10-0171-0 KYOCERA, FPC CONNEC-
TOR, 04-6292-022-000-800+
J104
1,2,3
BGTech E10-0169-0 OMIRON, FPC CONNECTOR,
XF2M-1215-1A
J105 BGTech E10-0349-0 YUNHO, FPC CONNECTOR,
05004HR-12B01S(G)
J601 BGTech E10-0014-0 CHI CHENG, SPK MIC JACK,
0980683Z01-D
J602 BGTech E10-0081-0 SUYIN, BATTERY CONNEC-
TOR, 060031MA005G500PL
Circuit
Ref.
Supplier Supplier Part No. Description
J603 BGTech E10-0099-0 MOLEX, CONNECTOR, 53047-
0210
L301 DEARIM E03-0063-0 Coil Air, 0.45-1.4-5TL
L304 TAIYOYUDEN E03-0124-0 Chip Ind, 1005 J 39N
L306 TAIYOYUDEN E03-0120-0 Chip Ind, 1005 J 33N
L310 TAIYOYUDEN E03-000112-00 Chip Ind, 1005 J 27N
L320 DELTA E03-000378-00 Chip Ind, 2012 22NH
L323 DELTA E03-000377-00 Chip Ind, 2012 18NH
L324 DELTA E03-000378-00 Chip Ind, 2012 22NH
L325 DELTA 9270022111820 Chip Ind, 2012 220NH
L327 TAIYOYUDEN E03-0177-0 Chip Ind, 1608 K 820NH
L328 DELTA E03-000377-00 Chip Ind, 2012 18NH
L329 BGTech E03-0185-0 TOKO, #617PT-1667
L331 TAIYOYUDEN E03-000112-00 Chip Ind, 1005 J 27N
L332 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 K 220NH
L333 BGTech E03-0185-0 TOKO, #617PT-1667
L334 KAMAYA E01-0025-1 Chip Res, 1005 J 0?
L340 DELTA 9270820N11820 Chip Ind, 2012 820NH
L401 TAIYOYUDEN E03-0113-0 Chip Ind, 1608 J 27nH
L402 TAIYOYUDEN E03-000084-00 Chip Ind, 1608 J 12nH
L403 TAIYOYUDEN E03-0121-0 Chip Ind, 1608 33NJ
L405 TAIYOYUDEN E03-0158-0 Chip Ind, 1608 J 6.8nH
L406 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L407 TAIYOYUDEN E03-0120-0 Chip Ind, 1005 J 33nH
L409 DEARIM E03-0062-0 Coil Air, 0.45-1.4-3TL
L410 DEARIM E03-0062-0 Coil Air, 0.45-1.4-3TL
L411 DEARIM E03-0062-0 Coil Air, 0.45-1.4-3TL
L412 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L413 DEARIM E03-0051-0 Coil Air, 0.35-1.6-7TL
L601 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L602 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L603 BGTech E03-0328-0 Chip Ferrite Beads,
MMZ1608Y600B
Circuit
Ref.
Supplier Supplier Part No. Description
L604 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L605 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L701 TAIYOYUDEN E03-0112-0 Chip Ind, 1005 J 27N
L702 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L703 DAERIM E03-0040-0 Coil Air, 0.3-1.1-3TL
L704 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L705 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L706 DAERIM E03-000009-00 Coil Air, 0.3-1.0-3TL
L707 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L708 TAIYOYUDEN E03-0112-0 Chip Ind, 1005 J 27N
L709 TAIYOYUDEN E03-0107-0 Chip Ind, 1005 J 22N
LCD101 BGTech E20-0092-0 EVERRVIEW,VBS3208A2-
7FWLYA,REV4.0
MIC1
1,2,3
BGTech E19-0009-0 BSE, C-MIC, 6.0*2.7/
2.2KO,2V,-44±3dB, Pin type
PB501 BGTech E09-0030-0 PANASONIC, Tack Switch,
EVQPUD02K
PB502 BGTech E09-0030-0 PANASONIC, Tack Switch,
EVQPUD02K
PB503 BGTech E09-0030-0 PANASONIC, Tack Switch,
EVQPUD02K
Q101 KEC E05-0061-0 KRC 413 BJT NPN Transistor
Q102 KEC E05-0061-0 KRC 413 BJT NPN Transistor
Q103 KEC E05-0061-0 KRC 413 BJT NPN Transistor
Q104 KEC E05-0061-0 KRC 413 BJT NPN Transistor
Q110
1,2
KEC E05-0015-0 KRC 404 BJT NPN Transistor
Q111 KEC E05-0043-0 KTA 2014 BJT PNP Transistor
Q112 KEC E05-0043-0 KTA 2014 BJT PNP Transistor
Q113 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q114 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q120 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q121 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q122 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q201 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Circuit
Ref.
Supplier Supplier Part No. Description
