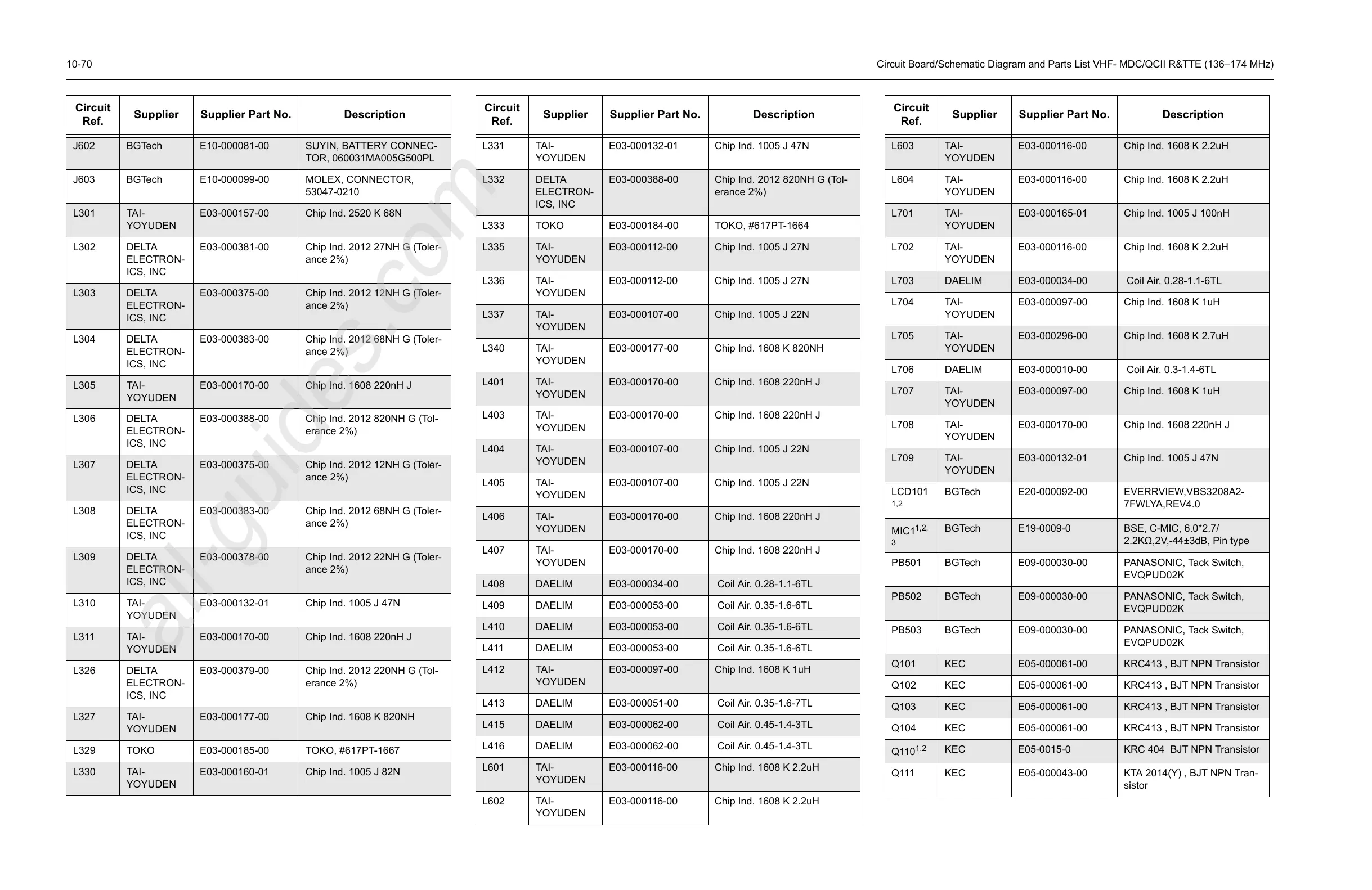

10-70 Circuit Board/Schematic Diagram and Parts List VHF- MDC/QCII R&TTE (136–174 MHz)
J602 BGTech E10-000081-00 SUYIN, BATTERY CONNEC-
TOR, 060031MA005G500PL
J603 BGTech E10-000099-00 MOLEX, CONNECTOR,
53047-0210
L301 TAI-
YOYUDEN
E03-000157-00 Chip Ind. 2520 K 68N
L302 DELTA
ELECTRON-
ICS, INC
E03-000381-00 Chip Ind. 2012 27NH G (Toler-
ance 2%)
L303 DELTA
ELECTRON-
ICS, INC
E03-000375-00 Chip Ind. 2012 12NH G (Toler-
ance 2%)
L304 DELTA
ELECTRON-
ICS, INC
E03-000383-00 Chip Ind. 2012 68NH G (Toler-
ance 2%)
L305 TAI-
YOYUDEN
E03-000170-00 Chip Ind. 1608 220nH J
L306 DELTA
ELECTRON-
ICS, INC
E03-000388-00 Chip Ind. 2012 820NH G (Tol-
erance 2%)
L307 DELTA
ELECTRON-
ICS, INC
E03-000375-00 Chip Ind. 2012 12NH G (Toler-
ance 2%)
L308 DELTA
ELECTRON-
ICS, INC
E03-000383-00 Chip Ind. 2012 68NH G (Toler-
ance 2%)
L309 DELTA
ELECTRON-
ICS, INC
E03-000378-00 Chip Ind. 2012 22NH G (Toler-
ance 2%)
L310 TAI-
YOYUDEN
E03-000132-01 Chip Ind. 1005 J 47N
L311 TAI-
YOYUDEN
E03-000170-00 Chip Ind. 1608 220nH J
L326 DELTA
ELECTRON-
ICS, INC
E03-000379-00 Chip Ind. 2012 220NH G (Tol-
erance 2%)
L327 TAI-
YOYUDEN
E03-000177-00 Chip Ind. 1608 K 820NH
L329 TOKO E03-000185-00 TOKO, #617PT-1667
L330 TAI-
YOYUDEN
E03-000160-01 Chip Ind. 1005 J 82N
Circuit
Ref.
Supplier Supplier Part No. Description
L331 TAI-
YOYUDEN
E03-000132-01 Chip Ind. 1005 J 47N
L332 DELTA
ELECTRON-
ICS, INC
E03-000388-00 Chip Ind. 2012 820NH G (Tol-
erance 2%)
L333 TOKO E03-000184-00 TOKO, #617PT-1664
L335 TAI-
YOYUDEN
E03-000112-00 Chip Ind. 1005 J 27N
L336 TAI-
YOYUDEN
E03-000112-00 Chip Ind. 1005 J 27N
L337 TAI-
YOYUDEN
E03-000107-00 Chip Ind. 1005 J 22N
L340 TAI-
YOYUDEN
E03-000177-00 Chip Ind. 1608 K 820NH
L401 TAI-
YOYUDEN
E03-000170-00 Chip Ind. 1608 220nH J
L403 TAI-
YOYUDEN
E03-000170-00 Chip Ind. 1608 220nH J
L404 TAI-
YOYUDEN
E03-000107-00 Chip Ind. 1005 J 22N
L405 TAI-
YOYUDEN
E03-000107-00 Chip Ind. 1005 J 22N
L406 TAI-
YOYUDEN
E03-000170-00 Chip Ind. 1608 220nH J
L407 TAI-
YOYUDEN
E03-000170-00 Chip Ind. 1608 220nH J
L408 DAELIM E03-000034-00 Coil Air. 0.28-1.1-6TL
L409 DAELIM E03-000053-00 Coil Air. 0.35-1.6-6TL
L410 DAELIM E03-000053-00 Coil Air. 0.35-1.6-6TL
L411 DAELIM E03-000053-00 Coil Air. 0.35-1.6-6TL
L412 TAI-
YOYUDEN
E03-000097-00 Chip Ind. 1608 K 1uH
L413 DAELIM E03-000051-00 Coil Air. 0.35-1.6-7TL
L415 DAELIM E03-000062-00 Coil Air. 0.45-1.4-3TL
L416 DAELIM E03-000062-00 Coil Air. 0.45-1.4-3TL
L601 TAI-
YOYUDEN
E03-000116-00 Chip Ind. 1608 K 2.2uH
L602 TAI-
YOYUDEN
E03-000116-00 Chip Ind. 1608 K 2.2uH
Circuit
Ref.
Supplier Supplier Part No. Description
L603 TAI-
YOYUDEN
E03-000116-00 Chip Ind. 1608 K 2.2uH
L604 TAI-
YOYUDEN
E03-000116-00 Chip Ind. 1608 K 2.2uH
L701 TAI-
YOYUDEN
E03-000165-01 Chip Ind. 1005 J 100nH
L702 TAI-
YOYUDEN
E03-000116-00 Chip Ind. 1608 K 2.2uH
L703 DAELIM E03-000034-00 Coil Air. 0.28-1.1-6TL
L704 TAI-
YOYUDEN
E03-000097-00 Chip Ind. 1608 K 1uH
L705 TAI-
YOYUDEN
E03-000296-00 Chip Ind. 1608 K 2.7uH
L706 DAELIM E03-000010-00 Coil Air. 0.3-1.4-6TL
L707 TAI-
YOYUDEN
E03-000097-00 Chip Ind. 1608 K 1uH
L708 TAI-
YOYUDEN
E03-000170-00 Chip Ind. 1608 220nH J
L709 TAI-
YOYUDEN
E03-000132-01 Chip Ind. 1005 J 47N
LCD101
1,2
BGTech E20-000092-00 EVERRVIEW,VBS3208A2-
7FWLYA,REV4.0
MIC1
1,2,
3
BGTech E19-0009-0 BSE, C-MIC, 6.0*2.7/
2.2K,2V,-44±3dB, Pin type
PB501 BGTech E09-000030-00 PANASONIC, Tack Switch,
EVQPUD02K
PB502 BGTech E09-000030-00 PANASONIC, Tack Switch,
EVQPUD02K
PB503 BGTech E09-000030-00 PANASONIC, Tack Switch,
EVQPUD02K
Q101 KEC E05-000061-00 KRC413 , BJT NPN Transistor
Q102 KEC E05-000061-00 KRC413 , BJT NPN Transistor
Q103 KEC E05-000061-00 KRC413 , BJT NPN Transistor
Q104 KEC E05-000061-00 KRC413 , BJT NPN Transistor
Q110
1,2
KEC E05-0015-0 KRC 404 BJT NPN Transistor
Q111 KEC E05-000043-00 KTA 2014(Y) , BJT NPN Tran-
sistor
