Motorola P100 Series Detailed Service Manual

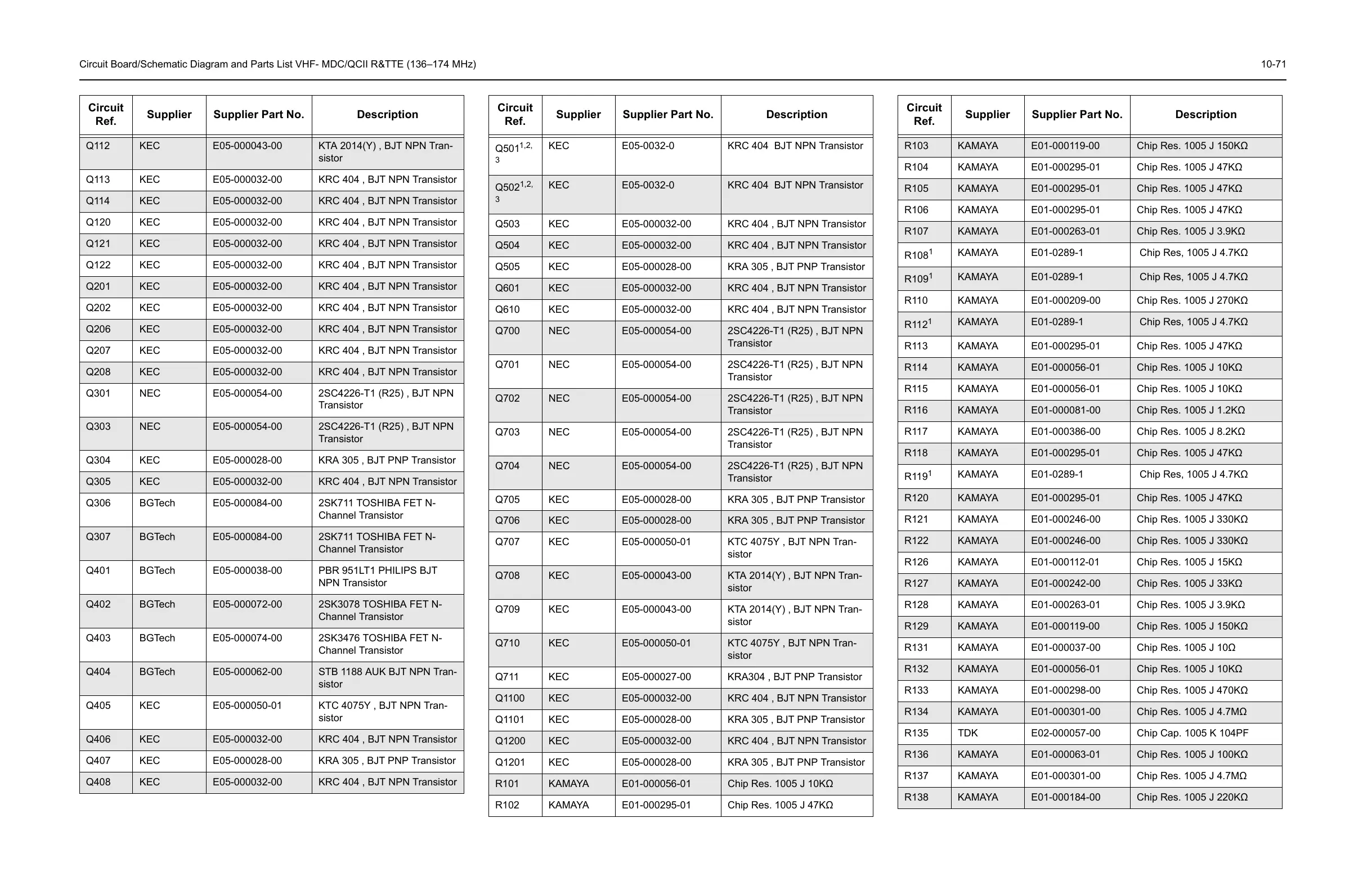

Circuit Board/Schematic Diagram and Parts List VHF- MDC/QCII R&TTE (136–174 MHz) 10-71
Q112 KEC E05-000043-00 KTA 2014(Y) , BJT NPN Tran-
sistor
Q113 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q114 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q120 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q121 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q122 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q201 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q202 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q206 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q207 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q208 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q301 NEC E05-000054-00 2SC4226-T1 (R25) , BJT NPN
Transistor
Q303 NEC E05-000054-00 2SC4226-T1 (R25) , BJT NPN
Transistor
Q304 KEC E05-000028-00 KRA 305 , BJT PNP Transistor
Q305 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q306 BGTech E05-000084-00 2SK711 TOSHIBA FET N-
Channel Transistor
Q307 BGTech E05-000084-00 2SK711 TOSHIBA FET N-
Channel Transistor
Q401 BGTech E05-000038-00 PBR 951LT1 PHILIPS BJT
NPN Transistor
Q402 BGTech E05-000072-00 2SK3078 TOSHIBA FET N-
Channel Transistor
Q403 BGTech E05-000074-00 2SK3476 TOSHIBA FET N-
Channel Transistor
Q404 BGTech E05-000062-00 STB 1188 AUK BJT NPN Tran-
sistor
Q405 KEC E05-000050-01 KTC 4075Y , BJT NPN Tran-
sistor
Q406 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q407 KEC E05-000028-00 KRA 305 , BJT PNP Transistor
Q408 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Circuit
Ref.
Supplier Supplier Part No. Description
Q501
1,2,
3
KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q502
1,2,
3
KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q503 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q504 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q505 KEC E05-000028-00 KRA 305 , BJT PNP Transistor
Q601 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q610 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q700 NEC E05-000054-00 2SC4226-T1 (R25) , BJT NPN
Transistor
Q701 NEC E05-000054-00 2SC4226-T1 (R25) , BJT NPN
Transistor
Q702 NEC E05-000054-00 2SC4226-T1 (R25) , BJT NPN
Transistor
Q703 NEC E05-000054-00 2SC4226-T1 (R25) , BJT NPN
Transistor
Q704 NEC E05-000054-00 2SC4226-T1 (R25) , BJT NPN
Transistor
Q705 KEC E05-000028-00 KRA 305 , BJT PNP Transistor
Q706 KEC E05-000028-00 KRA 305 , BJT PNP Transistor
Q707 KEC E05-000050-01 KTC 4075Y , BJT NPN Tran-
sistor
Q708 KEC E05-000043-00 KTA 2014(Y) , BJT NPN Tran-
sistor
Q709 KEC E05-000043-00 KTA 2014(Y) , BJT NPN Tran-
sistor
Q710 KEC E05-000050-01 KTC 4075Y , BJT NPN Tran-
sistor
Q711 KEC E05-000027-00 KRA304 , BJT PNP Transistor
Q1100 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q1101 KEC E05-000028-00 KRA 305 , BJT PNP Transistor
Q1200 KEC E05-000032-00 KRC 404 , BJT NPN Transistor
Q1201 KEC E05-000028-00 KRA 305 , BJT PNP Transistor
R101 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R102 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
Circuit
Ref.
Supplier Supplier Part No. Description
R103 KAMAYA E01-000119-00 Chip Res. 1005 J 150K
R104 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R105 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R106 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R107 KAMAYA E01-000263-01 Chip Res. 1005 J 3.9K
R108
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R109
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R110 KAMAYA E01-000209-00 Chip Res. 1005 J 270K
R112
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R113 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R114 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R115 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R116 KAMAYA E01-000081-00 Chip Res. 1005 J 1.2K
R117 KAMAYA E01-000386-00 Chip Res. 1005 J 8.2K
R118 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R119
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R120 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R121 KAMAYA E01-000246-00 Chip Res. 1005 J 330K
R122 KAMAYA E01-000246-00 Chip Res. 1005 J 330K
R126 KAMAYA E01-000112-01 Chip Res. 1005 J 15K
R127 KAMAYA E01-000242-00 Chip Res. 1005 J 33K
R128 KAMAYA E01-000263-01 Chip Res. 1005 J 3.9K
R129 KAMAYA E01-000119-00 Chip Res. 1005 J 150K
R131 KAMAYA E01-000037-00 Chip Res. 1005 J 10
R132 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R133 KAMAYA E01-000298-00 Chip Res. 1005 J 470K
R134 KAMAYA E01-000301-00 Chip Res. 1005 J 4.7M
R135 TDK E02-000057-00 Chip Cap. 1005 K 104PF
R136 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R137 KAMAYA E01-000301-00 Chip Res. 1005 J 4.7M
R138 KAMAYA E01-000184-00 Chip Res. 1005 J 220K
Circuit
Ref.
Supplier Supplier Part No. Description
