Motorola P100 Series Detailed Service Manual

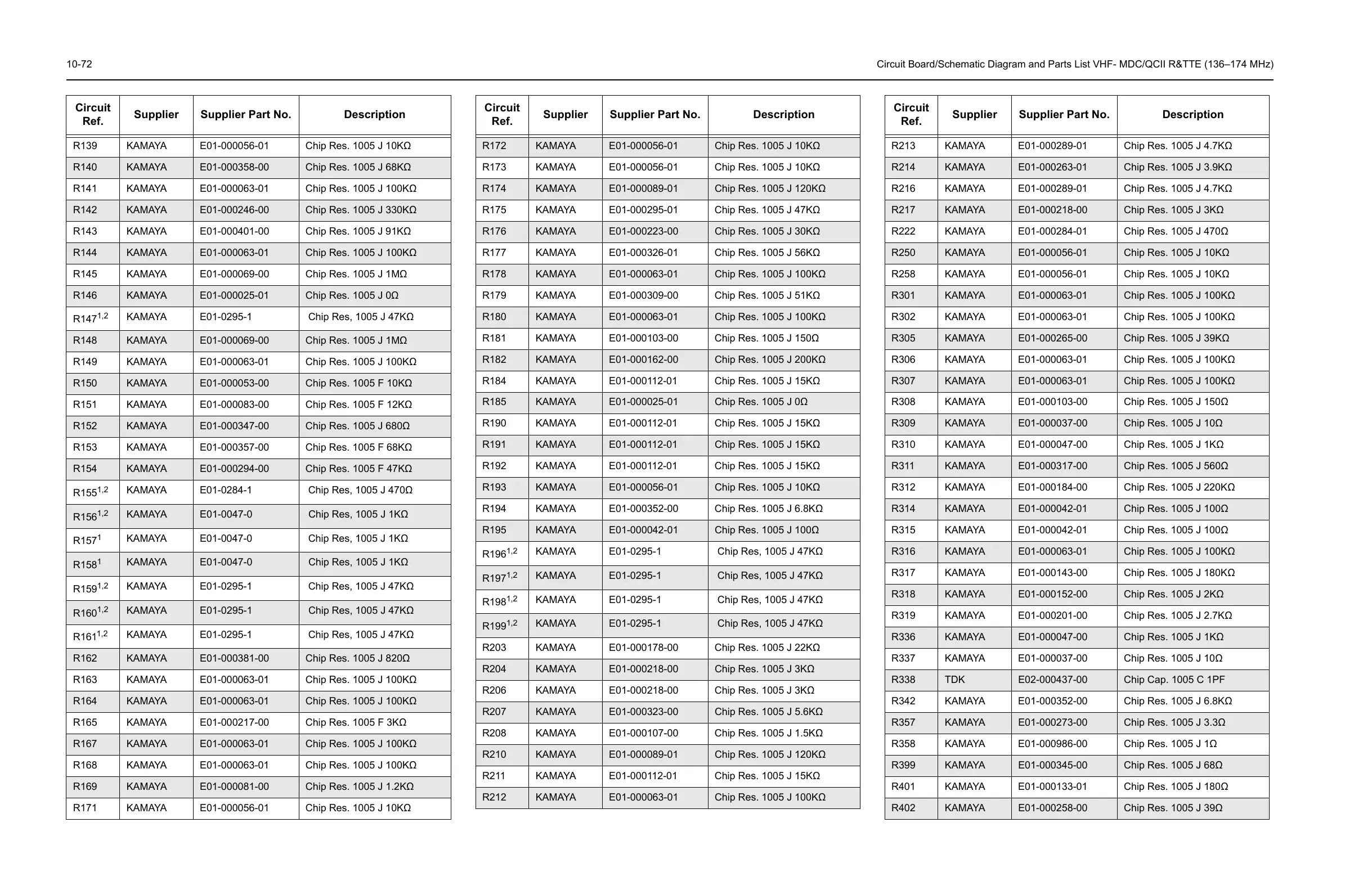

10-72 Circuit Board/Schematic Diagram and Parts List VHF- MDC/QCII R&TTE (136–174 MHz)
R139 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R140 KAMAYA E01-000358-00 Chip Res. 1005 J 68K
R141 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R142 KAMAYA E01-000246-00 Chip Res. 1005 J 330K
R143 KAMAYA E01-000401-00 Chip Res. 1005 J 91K
R144 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R145 KAMAYA E01-000069-00 Chip Res. 1005 J 1M
R146 KAMAYA E01-000025-01 Chip Res. 1005 J 0
R147
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R148 KAMAYA E01-000069-00 Chip Res. 1005 J 1M
R149 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R150 KAMAYA E01-000053-00 Chip Res. 1005 F 10K
R151 KAMAYA E01-000083-00 Chip Res. 1005 F 12K
R152 KAMAYA E01-000347-00 Chip Res. 1005 J 680
R153 KAMAYA E01-000357-00 Chip Res. 1005 F 68K
R154 KAMAYA E01-000294-00 Chip Res. 1005 F 47K
R155
1,2
KAMAYA E01-0284-1 Chip Res, 1005 J 470
R156
1,2
KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R157
1
KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R158
1
KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R159
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R160
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R161
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R162 KAMAYA E01-000381-00 Chip Res. 1005 J 820
R163 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R164 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R165 KAMAYA E01-000217-00 Chip Res. 1005 F 3K
R167 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R168 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R169 KAMAYA E01-000081-00 Chip Res. 1005 J 1.2K
R171 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
Circuit
Ref.
Supplier Supplier Part No. Description
R172 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R173 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R174 KAMAYA E01-000089-01 Chip Res. 1005 J 120K
R175 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R176 KAMAYA E01-000223-00 Chip Res. 1005 J 30K
R177 KAMAYA E01-000326-01 Chip Res. 1005 J 56K
R178 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R179 KAMAYA E01-000309-00 Chip Res. 1005 J 51K
R180 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R181 KAMAYA E01-000103-00 Chip Res. 1005 J 150
R182 KAMAYA E01-000162-00 Chip Res. 1005 J 200K
R184 KAMAYA E01-000112-01 Chip Res. 1005 J 15K
R185 KAMAYA E01-000025-01 Chip Res. 1005 J 0
R190 KAMAYA E01-000112-01 Chip Res. 1005 J 15K
R191 KAMAYA E01-000112-01 Chip Res. 1005 J 15K
R192 KAMAYA E01-000112-01 Chip Res. 1005 J 15K
R193 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R194 KAMAYA E01-000352-00 Chip Res. 1005 J 6.8K
R195 KAMAYA E01-000042-01 Chip Res. 1005 J 100
R196
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R197
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R198
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R199
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R203 KAMAYA E01-000178-00 Chip Res. 1005 J 22K
R204 KAMAYA E01-000218-00 Chip Res. 1005 J 3K
R206 KAMAYA E01-000218-00 Chip Res. 1005 J 3K
R207 KAMAYA E01-000323-00 Chip Res. 1005 J 5.6K
R208 KAMAYA E01-000107-00 Chip Res. 1005 J 1.5K
R210 KAMAYA E01-000089-01 Chip Res. 1005 J 120K
R211 KAMAYA E01-000112-01 Chip Res. 1005 J 15K
R212 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
Circuit
Ref.
Supplier Supplier Part No. Description
R213 KAMAYA E01-000289-01 Chip Res. 1005 J 4.7K
R214 KAMAYA E01-000263-01 Chip Res. 1005 J 3.9K
R216 KAMAYA E01-000289-01 Chip Res. 1005 J 4.7K
R217 KAMAYA E01-000218-00 Chip Res. 1005 J 3K
R222 KAMAYA E01-000284-01 Chip Res. 1005 J 470
R250 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R258 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R301 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R302 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R305 KAMAYA E01-000265-00 Chip Res. 1005 J 39K
R306 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R307 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R308 KAMAYA E01-000103-00 Chip Res. 1005 J 150
R309 KAMAYA E01-000037-00 Chip Res. 1005 J 10
R310 KAMAYA E01-000047-00 Chip Res. 1005 J 1K
R311 KAMAYA E01-000317-00 Chip Res. 1005 J 560
R312 KAMAYA E01-000184-00 Chip Res. 1005 J 220K
R314 KAMAYA E01-000042-01 Chip Res. 1005 J 100
R315 KAMAYA E01-000042-01 Chip Res. 1005 J 100
R316 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R317 KAMAYA E01-000143-00 Chip Res. 1005 J 180K
R318 KAMAYA E01-000152-00 Chip Res. 1005 J 2K
R319 KAMAYA E01-000201-00 Chip Res. 1005 J 2.7K
R336 KAMAYA E01-000047-00 Chip Res. 1005 J 1K
R337 KAMAYA E01-000037-00 Chip Res. 1005 J 10
R338 TDK E02-000437-00 Chip Cap. 1005 C 1PF
R342 KAMAYA E01-000352-00 Chip Res. 1005 J 6.8K
R357 KAMAYA E01-000273-00 Chip Res. 1005 J 3.3
R358 KAMAYA E01-000986-00 Chip Res. 1005 J 1
R399 KAMAYA E01-000345-00 Chip Res. 1005 J 68
R401 KAMAYA E01-000133-01 Chip Res. 1005 J 180
R402 KAMAYA E01-000258-00 Chip Res. 1005 J 39
Circuit
Ref.
Supplier Supplier Part No. Description
