Motorola P100 Series Detailed Service Manual

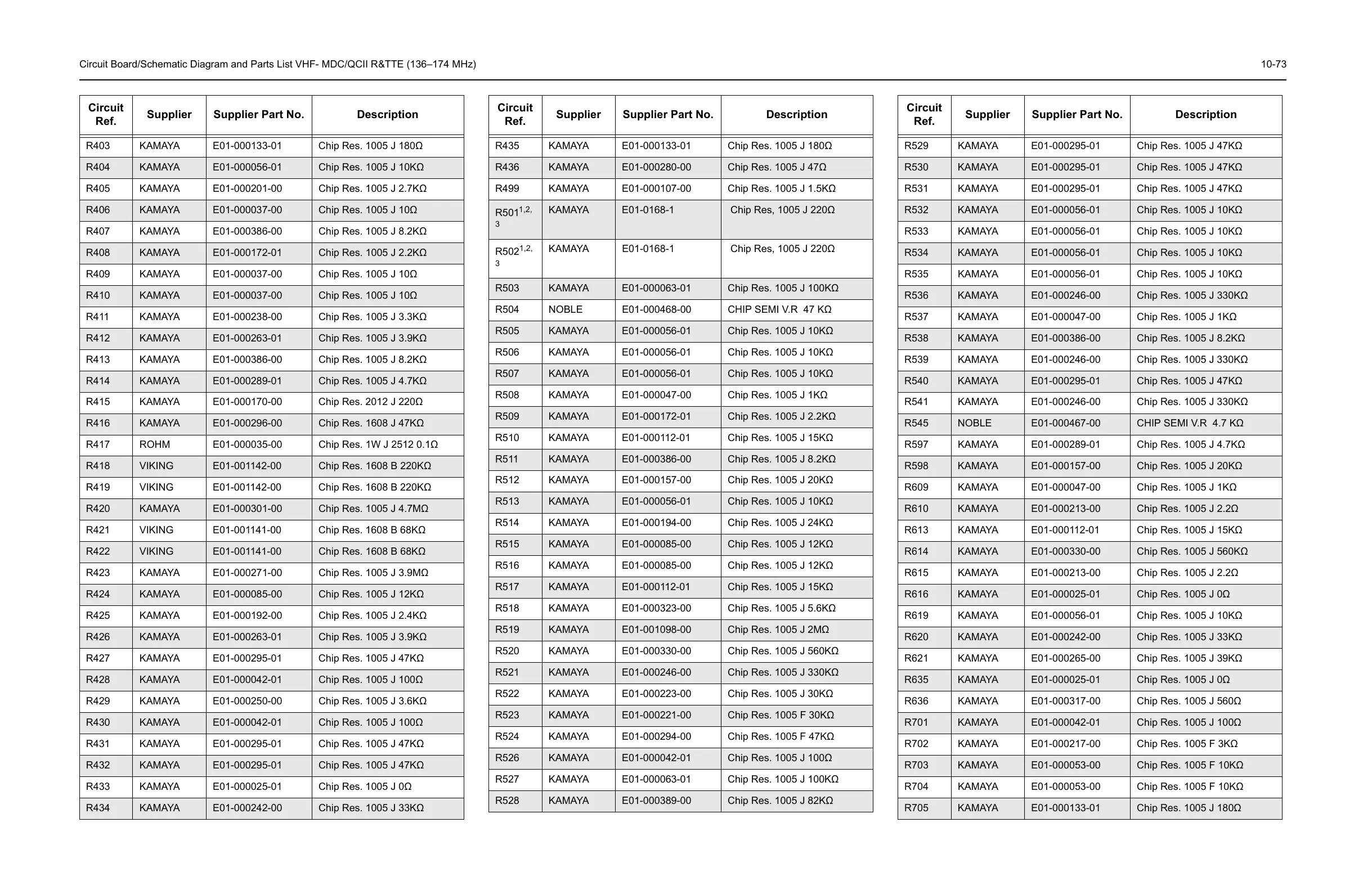

Circuit Board/Schematic Diagram and Parts List VHF- MDC/QCII R&TTE (136–174 MHz) 10-73
R403 KAMAYA E01-000133-01 Chip Res. 1005 J 180
R404 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R405 KAMAYA E01-000201-00 Chip Res. 1005 J 2.7K
R406 KAMAYA E01-000037-00 Chip Res. 1005 J 10
R407 KAMAYA E01-000386-00 Chip Res. 1005 J 8.2K
R408 KAMAYA E01-000172-01 Chip Res. 1005 J 2.2K
R409 KAMAYA E01-000037-00 Chip Res. 1005 J 10
R410 KAMAYA E01-000037-00 Chip Res. 1005 J 10
R411 KAMAYA E01-000238-00 Chip Res. 1005 J 3.3K
R412 KAMAYA E01-000263-01 Chip Res. 1005 J 3.9K
R413 KAMAYA E01-000386-00 Chip Res. 1005 J 8.2K
R414 KAMAYA E01-000289-01 Chip Res. 1005 J 4.7K
R415 KAMAYA E01-000170-00 Chip Res. 2012 J 220
R416 KAMAYA E01-000296-00 Chip Res. 1608 J 47K
R417 ROHM E01-000035-00 Chip Res. 1W J 2512 0.1
R418 VIKING E01-001142-00 Chip Res. 1608 B 220K
R419 VIKING E01-001142-00 Chip Res. 1608 B 220K
R420 KAMAYA E01-000301-00 Chip Res. 1005 J 4.7M
R421 VIKING E01-001141-00 Chip Res. 1608 B 68K
R422 VIKING E01-001141-00 Chip Res. 1608 B 68K
R423 KAMAYA E01-000271-00 Chip Res. 1005 J 3.9M
R424 KAMAYA E01-000085-00 Chip Res. 1005 J 12K
R425 KAMAYA E01-000192-00 Chip Res. 1005 J 2.4K
R426 KAMAYA E01-000263-01 Chip Res. 1005 J 3.9K
R427 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R428 KAMAYA E01-000042-01 Chip Res. 1005 J 100
R429 KAMAYA E01-000250-00 Chip Res. 1005 J 3.6K
R430 KAMAYA E01-000042-01 Chip Res. 1005 J 100
R431 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R432 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R433 KAMAYA E01-000025-01 Chip Res. 1005 J 0
R434 KAMAYA E01-000242-00 Chip Res. 1005 J 33K
Circuit
Ref.
Supplier Supplier Part No. Description
R435 KAMAYA E01-000133-01 Chip Res. 1005 J 180
R436 KAMAYA E01-000280-00 Chip Res. 1005 J 47
R499 KAMAYA E01-000107-00 Chip Res. 1005 J 1.5K
R501
1,2,
3
KAMAYA E01-0168-1 Chip Res, 1005 J 220
R502
1,2,
3
KAMAYA E01-0168-1 Chip Res, 1005 J 220
R503 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R504 NOBLE E01-000468-00 CHIP SEMI V.R 47 K
R505 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R506 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R507 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R508 KAMAYA E01-000047-00 Chip Res. 1005 J 1K
R509 KAMAYA E01-000172-01 Chip Res. 1005 J 2.2K
R510 KAMAYA E01-000112-01 Chip Res. 1005 J 15K
R511 KAMAYA E01-000386-00 Chip Res. 1005 J 8.2K
R512 KAMAYA E01-000157-00 Chip Res. 1005 J 20K
R513 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R514 KAMAYA E01-000194-00 Chip Res. 1005 J 24K
R515 KAMAYA E01-000085-00 Chip Res. 1005 J 12K
R516 KAMAYA E01-000085-00 Chip Res. 1005 J 12K
R517 KAMAYA E01-000112-01 Chip Res. 1005 J 15K
R518 KAMAYA E01-000323-00 Chip Res. 1005 J 5.6K
R519 KAMAYA E01-001098-00 Chip Res. 1005 J 2M
R520 KAMAYA E01-000330-00 Chip Res. 1005 J 560K
R521 KAMAYA E01-000246-00 Chip Res. 1005 J 330K
R522 KAMAYA E01-000223-00 Chip Res. 1005 J 30K
R523 KAMAYA E01-000221-00 Chip Res. 1005 F 30K
R524 KAMAYA E01-000294-00 Chip Res. 1005 F 47K
R526 KAMAYA E01-000042-01 Chip Res. 1005 J 100
R527 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R528 KAMAYA E01-000389-00 Chip Res. 1005 J 82K
Circuit
Ref.
Supplier Supplier Part No. Description
R529 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R530 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R531 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R532 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R533 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R534 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R535 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R536 KAMAYA E01-000246-00 Chip Res. 1005 J 330K
R537 KAMAYA E01-000047-00 Chip Res. 1005 J 1K
R538 KAMAYA E01-000386-00 Chip Res. 1005 J 8.2K
R539 KAMAYA E01-000246-00 Chip Res. 1005 J 330K
R540 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R541 KAMAYA E01-000246-00 Chip Res. 1005 J 330K
R545 NOBLE E01-000467-00 CHIP SEMI V.R 4.7 K
R597 KAMAYA E01-000289-01 Chip Res. 1005 J 4.7K
R598 KAMAYA E01-000157-00 Chip Res. 1005 J 20K
R609 KAMAYA E01-000047-00 Chip Res. 1005 J 1K
R610 KAMAYA E01-000213-00 Chip Res. 1005 J 2.2
R613 KAMAYA E01-000112-01 Chip Res. 1005 J 15K
R614 KAMAYA E01-000330-00 Chip Res. 1005 J 560K
R615 KAMAYA E01-000213-00 Chip Res. 1005 J 2.2
R616 KAMAYA E01-000025-01 Chip Res. 1005 J 0
R619 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R620 KAMAYA E01-000242-00 Chip Res. 1005 J 33K
R621 KAMAYA E01-000265-00 Chip Res. 1005 J 39K
R635 KAMAYA E01-000025-01 Chip Res. 1005 J 0
R636 KAMAYA E01-000317-00 Chip Res. 1005 J 560
R701 KAMAYA E01-000042-01 Chip Res. 1005 J 100
R702 KAMAYA E01-000217-00 Chip Res. 1005 F 3K
R703 KAMAYA E01-000053-00 Chip Res. 1005 F 10K
R704 KAMAYA E01-000053-00 Chip Res. 1005 F 10K
R705 KAMAYA E01-000133-01 Chip Res. 1005 J 180
Circuit
Ref.
Supplier Supplier Part No. Description
