Motorola P100 Series Detailed Service Manual

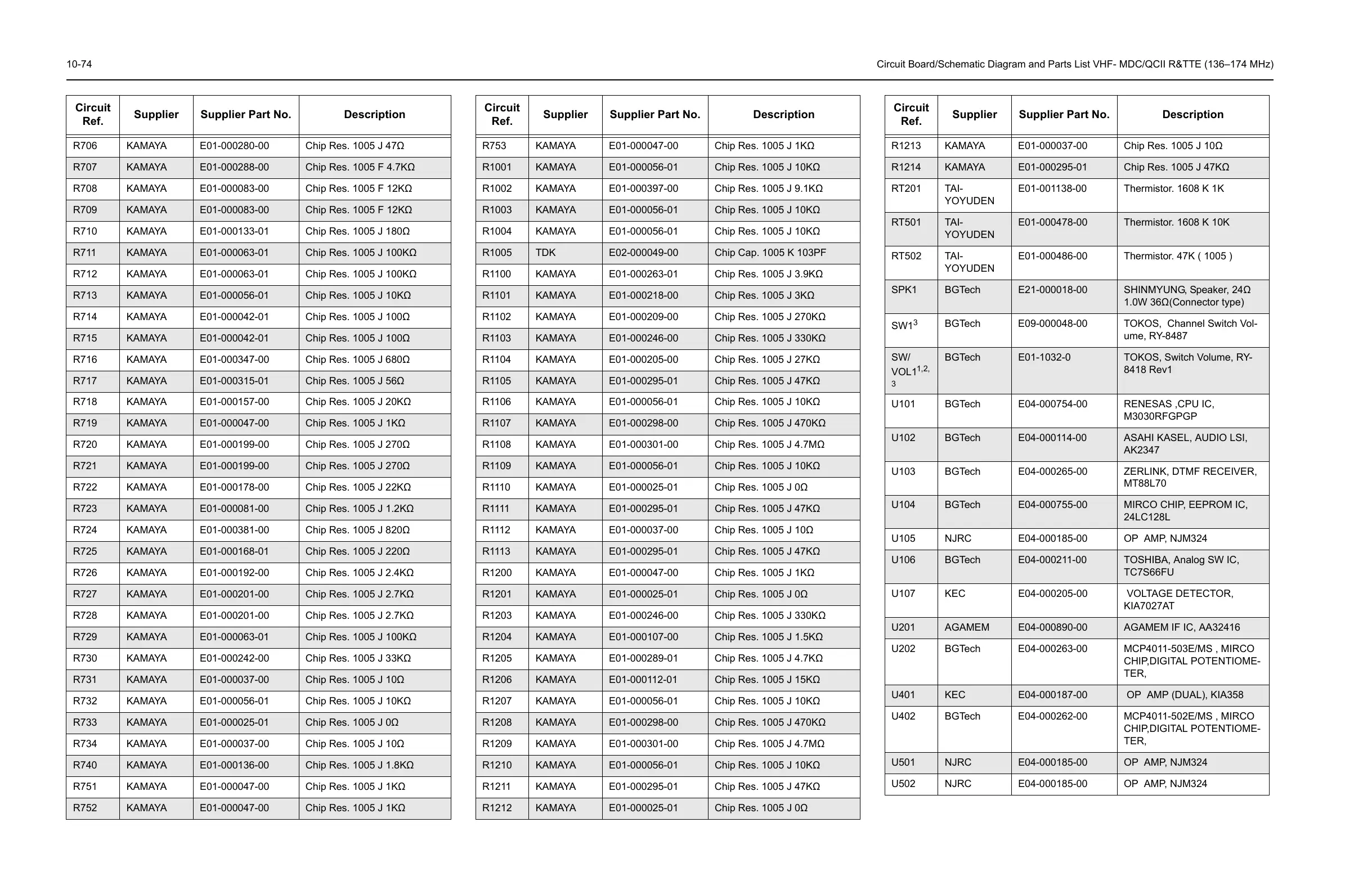

10-74 Circuit Board/Schematic Diagram and Parts List VHF- MDC/QCII R&TTE (136–174 MHz)
R706 KAMAYA E01-000280-00 Chip Res. 1005 J 47
R707 KAMAYA E01-000288-00 Chip Res. 1005 F 4.7K
R708 KAMAYA E01-000083-00 Chip Res. 1005 F 12K
R709 KAMAYA E01-000083-00 Chip Res. 1005 F 12K
R710 KAMAYA E01-000133-01 Chip Res. 1005 J 180
R711 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R712 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R713 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R714 KAMAYA E01-000042-01 Chip Res. 1005 J 100
R715 KAMAYA E01-000042-01 Chip Res. 1005 J 100
R716 KAMAYA E01-000347-00 Chip Res. 1005 J 680
R717 KAMAYA E01-000315-01 Chip Res. 1005 J 56
R718 KAMAYA E01-000157-00 Chip Res. 1005 J 20K
R719 KAMAYA E01-000047-00 Chip Res. 1005 J 1K
R720 KAMAYA E01-000199-00 Chip Res. 1005 J 270
R721 KAMAYA E01-000199-00 Chip Res. 1005 J 270
R722 KAMAYA E01-000178-00 Chip Res. 1005 J 22K
R723 KAMAYA E01-000081-00 Chip Res. 1005 J 1.2K
R724 KAMAYA E01-000381-00 Chip Res. 1005 J 820
R725 KAMAYA E01-000168-01 Chip Res. 1005 J 220
R726 KAMAYA E01-000192-00 Chip Res. 1005 J 2.4K
R727 KAMAYA E01-000201-00 Chip Res. 1005 J 2.7K
R728 KAMAYA E01-000201-00 Chip Res. 1005 J 2.7K
R729 KAMAYA E01-000063-01 Chip Res. 1005 J 100K
R730 KAMAYA E01-000242-00 Chip Res. 1005 J 33K
R731 KAMAYA E01-000037-00 Chip Res. 1005 J 10
R732 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R733 KAMAYA E01-000025-01 Chip Res. 1005 J 0
R734 KAMAYA E01-000037-00 Chip Res. 1005 J 10
R740 KAMAYA E01-000136-00 Chip Res. 1005 J 1.8K
R751 KAMAYA E01-000047-00 Chip Res. 1005 J 1K
R752 KAMAYA E01-000047-00 Chip Res. 1005 J 1K
Circuit
Ref.
Supplier Supplier Part No. Description
R753 KAMAYA E01-000047-00 Chip Res. 1005 J 1K
R1001 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R1002 KAMAYA E01-000397-00 Chip Res. 1005 J 9.1K
R1003 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R1004 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R1005 TDK E02-000049-00 Chip Cap. 1005 K 103PF
R1100 KAMAYA E01-000263-01 Chip Res. 1005 J 3.9K
R1101 KAMAYA E01-000218-00 Chip Res. 1005 J 3K
R1102 KAMAYA E01-000209-00 Chip Res. 1005 J 270K
R1103 KAMAYA E01-000246-00 Chip Res. 1005 J 330K
R1104 KAMAYA E01-000205-00 Chip Res. 1005 J 27K
R1105 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R1106 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R1107 KAMAYA E01-000298-00 Chip Res. 1005 J 470K
R1108 KAMAYA E01-000301-00 Chip Res. 1005 J 4.7M
R1109 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R1110 KAMAYA E01-000025-01 Chip Res. 1005 J 0
R1111 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R1112 KAMAYA E01-000037-00 Chip Res. 1005 J 10
R1113 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R1200 KAMAYA E01-000047-00 Chip Res. 1005 J 1K
R1201 KAMAYA E01-000025-01 Chip Res. 1005 J 0
R1203 KAMAYA E01-000246-00 Chip Res. 1005 J 330K
R1204 KAMAYA E01-000107-00 Chip Res. 1005 J 1.5K
R1205 KAMAYA E01-000289-01 Chip Res. 1005 J 4.7K
R1206 KAMAYA E01-000112-01 Chip Res. 1005 J 15K
R1207 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R1208 KAMAYA E01-000298-00 Chip Res. 1005 J 470K
R1209 KAMAYA E01-000301-00 Chip Res. 1005 J 4.7M
R1210 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
R1211 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
R1212 KAMAYA E01-000025-01 Chip Res. 1005 J 0
Circuit
Ref.
Supplier Supplier Part No. Description
R1213 KAMAYA E01-000037-00 Chip Res. 1005 J 10
R1214 KAMAYA E01-000295-01 Chip Res. 1005 J 47K
RT201 TAI-
YOYUDEN
E01-001138-00 Thermistor. 1608 K 1K
RT501 TAI-
YOYUDEN
E01-000478-00 Thermistor. 1608 K 10K
RT502 TAI-
YOYUDEN
E01-000486-00 Thermistor. 47K ( 1005 )
SPK1 BGTech E21-000018-00 SHINMYUNG, Speaker, 24
1.0W 36(Connector type)
SW1
3
BGTech E09-000048-00 TOKOS, Channel Switch Vol-
ume, RY-8487
SW/
VOL1
1,2,
3
BGTech E01-1032-0 TOKOS, Switch Volume, RY-
8418 Rev1
U101 BGTech E04-000754-00 RENESAS ,CPU IC,
M3030RFGPGP
U102 BGTech E04-000114-00 ASAHI KASEL, AUDIO LSI,
AK2347
U103 BGTech E04-000265-00 ZERLINK, DTMF RECEIVER,
MT88L70
U104 BGTech E04-000755-00 MIRCO CHIP, EEPROM IC,
24LC128L
U105 NJRC E04-000185-00 OP AMP, NJM324
U106 BGTech E04-000211-00 TOSHIBA, Analog SW IC,
TC7S66FU
U107 KEC E04-000205-00 VOLTAGE DETECTOR,
KIA7027AT
U201 AGAMEM E04-000890-00 AGAMEM IF IC, AA32416
U202 BGTech E04-000263-00 MCP4011-503E/MS , MIRCO
CHIP,DIGITAL POTENTIOME-
TER,
U401 KEC E04-000187-00 OP AMP (DUAL), KIA358
U402 BGTech E04-000262-00 MCP4011-502E/MS , MIRCO
CHIP,DIGITAL POTENTIOME-
TER,
U501 NJRC E04-000185-00 OP AMP, NJM324
U502 NJRC E04-000185-00 OP AMP, NJM324
Circuit
Ref.
Supplier Supplier Part No. Description
