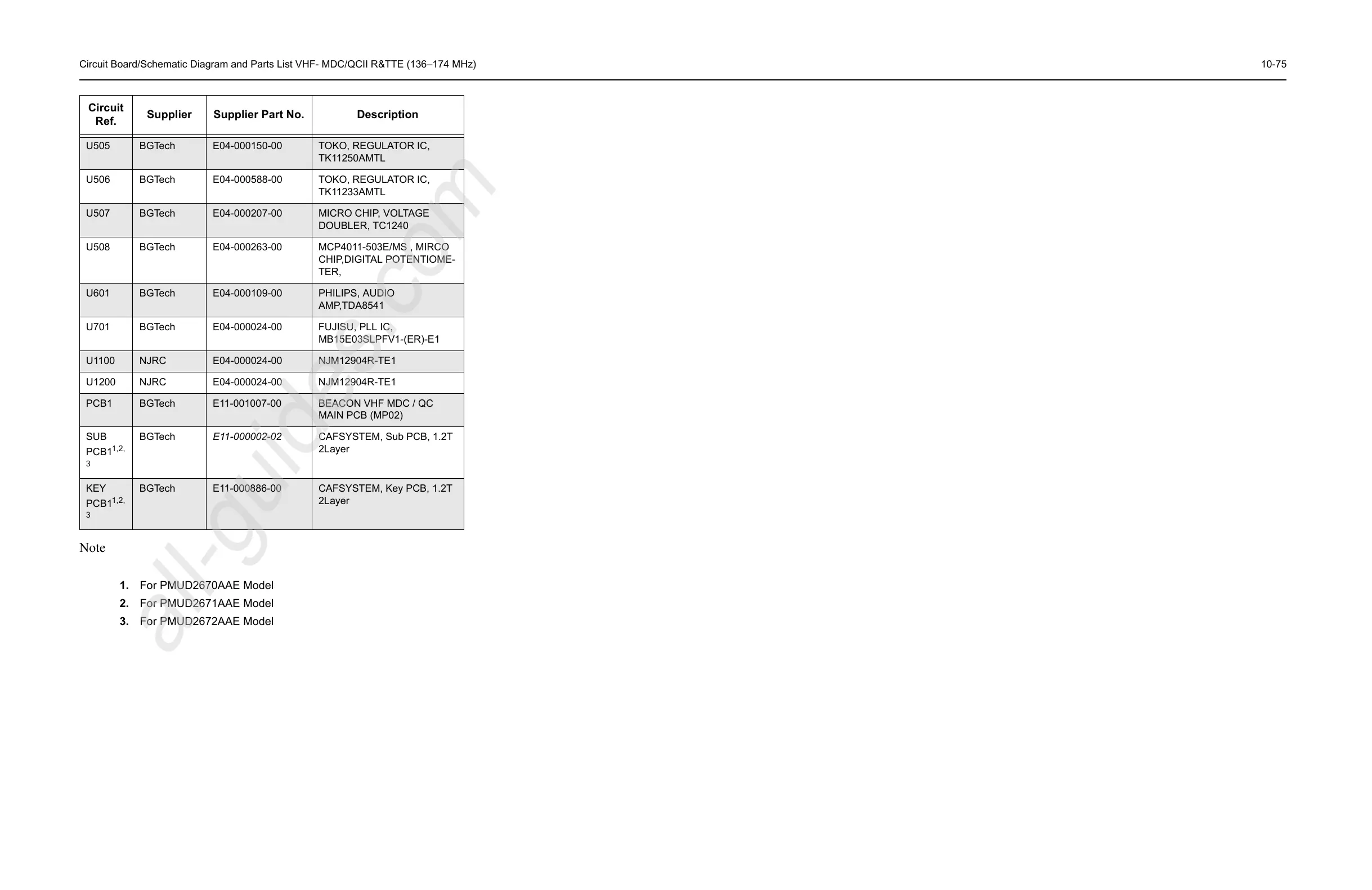

Circuit Board/Schematic Diagram and Parts List VHF- MDC/QCII R&TTE (136–174 MHz) 10-75
Note
1. For PMUD2670AAE Model
2. For PMUD2671AAE Model
3. For PMUD2672AAE Model
U505 BGTech E04-000150-00 TOKO, REGULATOR IC,
TK11250AMTL
U506 BGTech E04-000588-00 TOKO, REGULATOR IC,
TK11233AMTL
U507 BGTech E04-000207-00 MICRO CHIP, VOLTAGE
DOUBLER, TC1240
U508 BGTech E04-000263-00 MCP4011-503E/MS , MIRCO
CHIP,DIGITAL POTENTIOME-
TER,
U601 BGTech E04-000109-00 PHILIPS, AUDIO
AMP,TDA8541
U701 BGTech E04-000024-00 FUJISU, PLL IC,
MB15E03SLPFV1-(ER)-E1
U1100 NJRC E04-000024-00 NJM12904R-TE1
U1200 NJRC E04-000024-00 NJM12904R-TE1
PCB1 BGTech E11-001007-00 BEACON VHF MDC / QC
MAIN PCB (MP02)
SUB
PCB1
1,2,
3
BGTech E11-000002-02 CAFSYSTEM, Sub PCB, 1.2T
2Layer
KEY
PCB1
1,2,
3
BGTech E11-000886-00 CAFSYSTEM, Key PCB, 1.2T
2Layer
Circuit
Ref.
Supplier Supplier Part No. Description
