Motorola P100 Series Detailed Service Manual

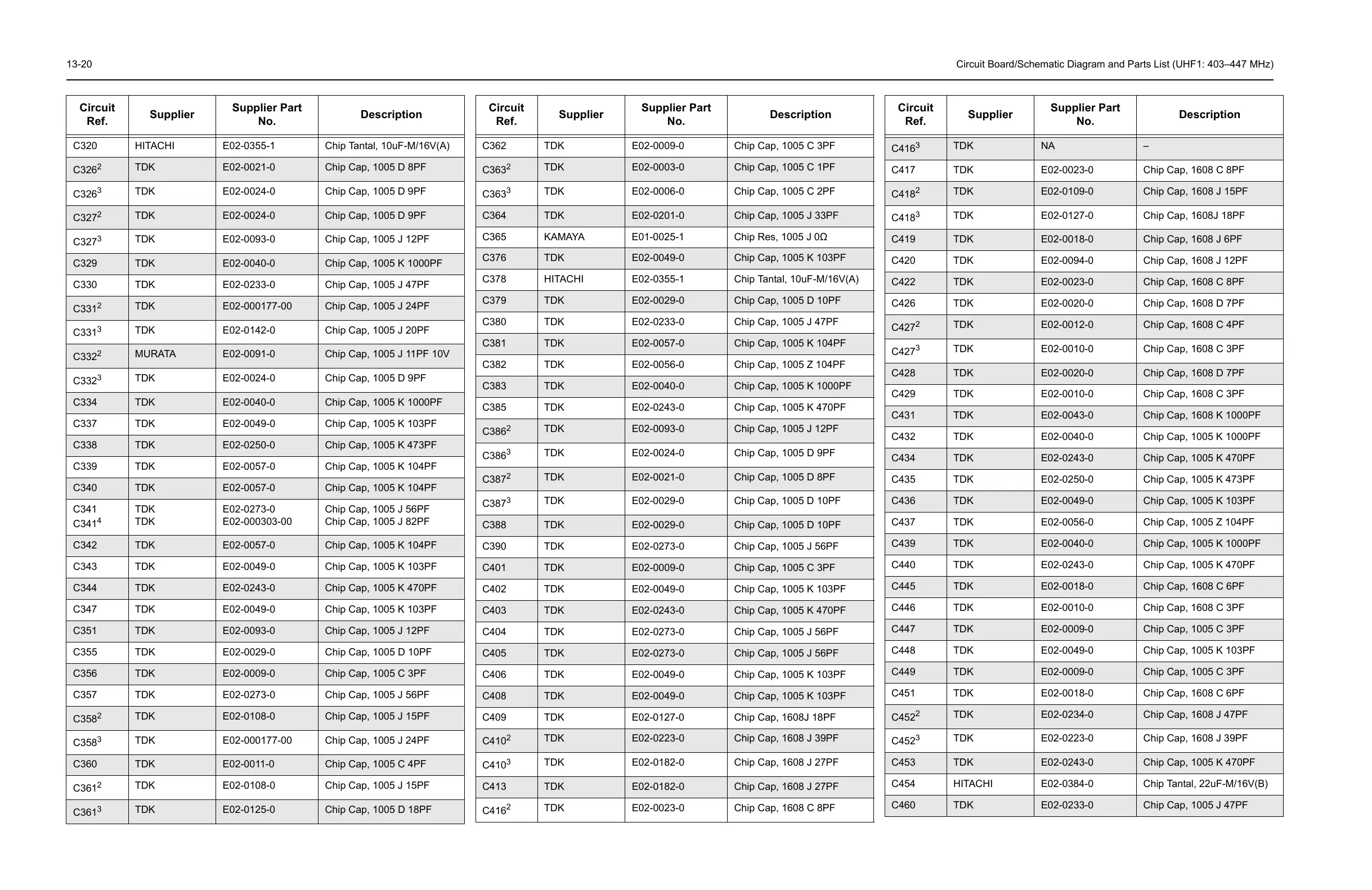

13-20 Circuit Board/Schematic Diagram and Parts List (UHF1: 403–447 MHz)
C320 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C326
2
TDK E02-0021-0 Chip Cap, 1005 D 8PF
C326
3
TDK E02-0024-0 Chip Cap, 1005 D 9PF
C327
2
TDK E02-0024-0 Chip Cap, 1005 D 9PF
C327
3
TDK E02-0093-0 Chip Cap, 1005 J 12PF
C329 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C330 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C331
2
TDK E02-000177-00 Chip Cap, 1005 J 24PF
C331
3
TDK E02-0142-0 Chip Cap, 1005 J 20PF
C332
2
MURATA E02-0091-0 Chip Cap, 1005 J 11PF 10V
C332
3
TDK E02-0024-0 Chip Cap, 1005 D 9PF
C334 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C337 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C338 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C339 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C340 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C341
C341
4
TDK
TDK
E02-0273-0
E02-000303-00
Chip Cap, 1005 J 56PF
Chip Cap, 1005 J 82PF
C342 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C343 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C344 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C347 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C351 TDK E02-0093-0 Chip Cap, 1005 J 12PF
C355 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C356 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C357 TDK E02-0273-0 Chip Cap, 1005 J 56PF
C358
2
TDK E02-0108-0 Chip Cap, 1005 J 15PF
C358
3
TDK E02-000177-00 Chip Cap, 1005 J 24PF
C360 TDK E02-0011-0 Chip Cap, 1005 C 4PF
C361
2
TDK E02-0108-0 Chip Cap, 1005 J 15PF
C361
3
TDK E02-0125-0 Chip Cap, 1005 D 18PF
Circuit
Ref.
Supplier
Supplier Part
No.
Description
C362 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C363
2
TDK E02-0003-0 Chip Cap, 1005 C 1PF
C363
3
TDK E02-0006-0 Chip Cap, 1005 C 2PF
C364 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C365 KAMAYA E01-0025-1 Chip Res, 1005 J 0
C376 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C378 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C379 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C380 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C381 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C382 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C383 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C385 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C386
2
TDK E02-0093-0 Chip Cap, 1005 J 12PF
C386
3
TDK E02-0024-0 Chip Cap, 1005 D 9PF
C387
2
TDK E02-0021-0 Chip Cap, 1005 D 8PF
C387
3
TDK E02-0029-0 Chip Cap, 1005 D 10PF
C388 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C390 TDK E02-0273-0 Chip Cap, 1005 J 56PF
C401 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C402 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C403 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C404 TDK E02-0273-0 Chip Cap, 1005 J 56PF
C405 TDK E02-0273-0 Chip Cap, 1005 J 56PF
C406 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C408 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C409 TDK E02-0127-0 Chip Cap, 1608J 18PF
C410
2
TDK E02-0223-0 Chip Cap, 1608 J 39PF
C410
3
TDK E02-0182-0 Chip Cap, 1608 J 27PF
C413 TDK E02-0182-0 Chip Cap, 1608 J 27PF
C416
2
TDK E02-0023-0 Chip Cap, 1608 C 8PF
Circuit
Ref.
Supplier
Supplier Part
No.
Description
C416
3
TDK NA –
C417 TDK E02-0023-0 Chip Cap, 1608 C 8PF
C418
2
TDK E02-0109-0 Chip Cap, 1608 J 15PF
C418
3
TDK E02-0127-0 Chip Cap, 1608J 18PF
C419 TDK E02-0018-0 Chip Cap, 1608 J 6PF
C420 TDK E02-0094-0 Chip Cap, 1608 J 12PF
C422 TDK E02-0023-0 Chip Cap, 1608 C 8PF
C426 TDK E02-0020-0 Chip Cap, 1608 D 7PF
C427
2
TDK E02-0012-0 Chip Cap, 1608 C 4PF
C427
3
TDK E02-0010-0 Chip Cap, 1608 C 3PF
C428 TDK E02-0020-0 Chip Cap, 1608 D 7PF
C429 TDK E02-0010-0 Chip Cap, 1608 C 3PF
C431 TDK E02-0043-0 Chip Cap, 1608 K 1000PF
C432 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C434 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C435 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C436 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C437 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C439 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C440 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C445 TDK E02-0018-0 Chip Cap, 1608 C 6PF
C446 TDK E02-0010-0 Chip Cap, 1608 C 3PF
C447 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C448 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C449 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C451 TDK E02-0018-0 Chip Cap, 1608 C 6PF
C452
2
TDK E02-0234-0 Chip Cap, 1608 J 47PF
C452
3
TDK E02-0223-0 Chip Cap, 1608 J 39PF
C453 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C454 HITACHI E02-0384-0 Chip Tantal, 22uF-M/16V(B)
C460 TDK E02-0233-0 Chip Cap, 1005 J 47PF
Circuit
Ref.
Supplier
Supplier Part
No.
Description
