Motorola P100 Series Detailed Service Manual

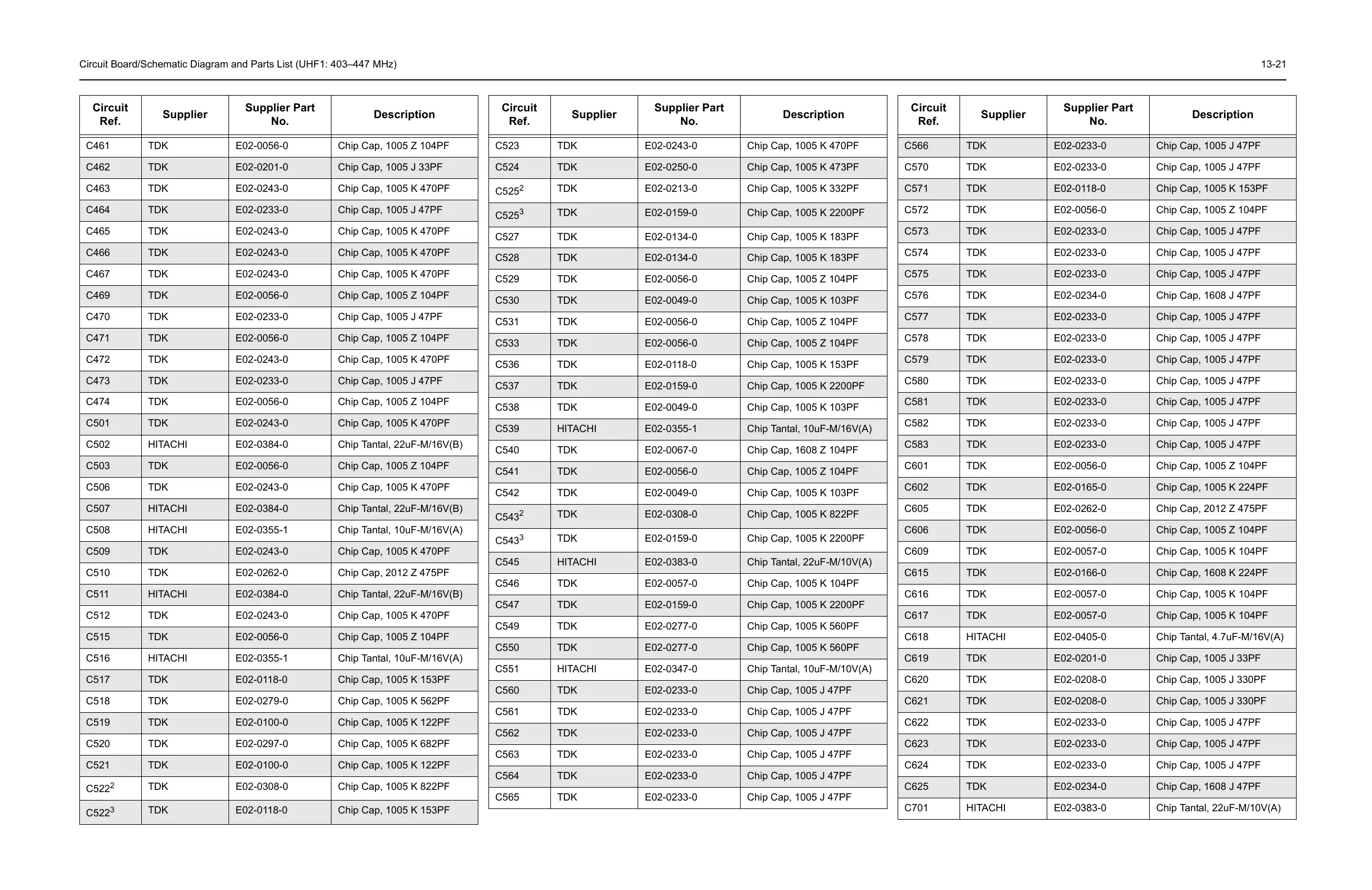

Circuit Board/Schematic Diagram and Parts List (UHF1: 403–447 MHz) 13-21
C461 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C462 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C463 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C464 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C465 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C466 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C467 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C469 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C470 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C471 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C472 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C473 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C474 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C501 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C502 HITACHI E02-0384-0 Chip Tantal, 22uF-M/16V(B)
C503 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C506 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C507 HITACHI E02-0384-0 Chip Tantal, 22uF-M/16V(B)
C508 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C509 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C510 TDK E02-0262-0 Chip Cap, 2012 Z 475PF
C511 HITACHI E02-0384-0 Chip Tantal, 22uF-M/16V(B)
C512 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C515 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C516 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C517 TDK E02-0118-0 Chip Cap, 1005 K 153PF
C518 TDK E02-0279-0 Chip Cap, 1005 K 562PF
C519 TDK E02-0100-0 Chip Cap, 1005 K 122PF
C520 TDK E02-0297-0 Chip Cap, 1005 K 682PF
C521 TDK E02-0100-0 Chip Cap, 1005 K 122PF
C522
2
TDK E02-0308-0 Chip Cap, 1005 K 822PF
C522
3
TDK E02-0118-0 Chip Cap, 1005 K 153PF
Circuit
Ref.
Supplier
Supplier Part
No.
Description
C523 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C524 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C525
2
TDK E02-0213-0 Chip Cap, 1005 K 332PF
C525
3
TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C527 TDK E02-0134-0 Chip Cap, 1005 K 183PF
C528 TDK E02-0134-0 Chip Cap, 1005 K 183PF
C529 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C530 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C531 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C533 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C536 TDK E02-0118-0 Chip Cap, 1005 K 153PF
C537 TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C538 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C539 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C540 TDK E02-0067-0 Chip Cap, 1608 Z 104PF
C541 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C542 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C543
2
TDK E02-0308-0 Chip Cap, 1005 K 822PF
C543
3
TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C545 HITACHI E02-0383-0 Chip Tantal, 22uF-M/10V(A)
C546 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C547 TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C549 TDK E02-0277-0 Chip Cap, 1005 K 560PF
C550 TDK E02-0277-0 Chip Cap, 1005 K 560PF
C551 HITACHI E02-0347-0 Chip Tantal, 10uF-M/10V(A)
C560 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C561 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C562 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C563 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C564 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C565 TDK E02-0233-0 Chip Cap, 1005 J 47PF
Circuit
Ref.
Supplier
Supplier Part
No.
Description
C566 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C570 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C571 TDK E02-0118-0 Chip Cap, 1005 K 153PF
C572 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C573 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C574 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C575 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C576 TDK E02-0234-0 Chip Cap, 1608 J 47PF
C577 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C578 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C579 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C580 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C581 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C582 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C583 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C601 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C602 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C605 TDK E02-0262-0 Chip Cap, 2012 Z 475PF
C606 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C609 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C615 TDK E02-0166-0 Chip Cap, 1608 K 224PF
C616 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C617 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C618 HITACHI E02-0405-0 Chip Tantal, 4.7uF-M/16V(A)
C619 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C620 TDK E02-0208-0 Chip Cap, 1005 J 330PF
C621 TDK E02-0208-0 Chip Cap, 1005 J 330PF
C622 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C623 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C624 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C625 TDK E02-0234-0 Chip Cap, 1608 J 47PF
C701 HITACHI E02-0383-0 Chip Tantal, 22uF-M/10V(A)
Circuit
Ref.
Supplier
Supplier Part
No.
Description
