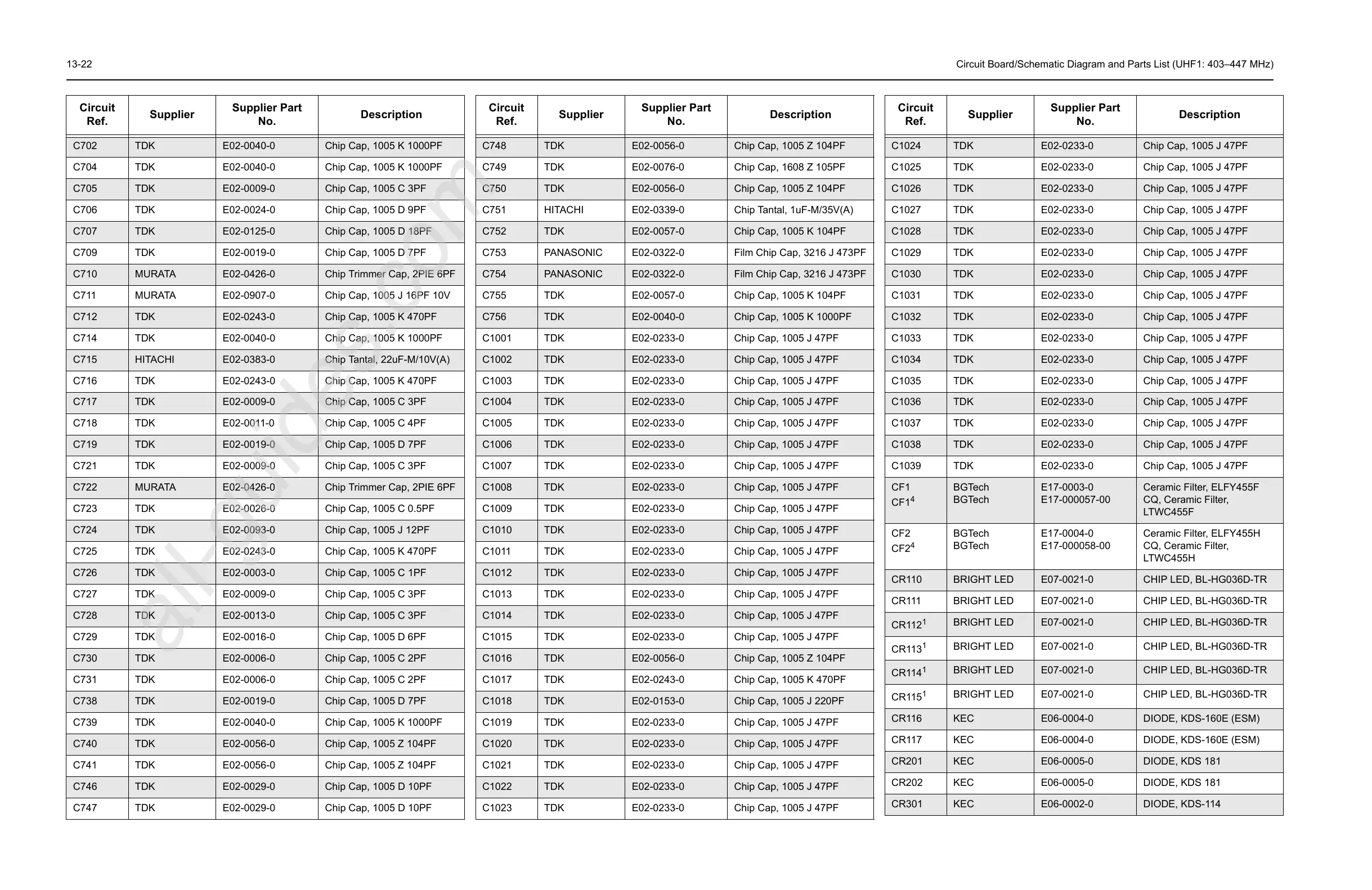

Motorola P100 Series Detailed Service Manual

13-22 Circuit Board/Schematic Diagram and Parts List (UHF1: 403–447 MHz)
C702 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C704 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C705 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C706 TDK E02-0024-0 Chip Cap, 1005 D 9PF
C707 TDK E02-0125-0 Chip Cap, 1005 D 18PF
C709 TDK E02-0019-0 Chip Cap, 1005 D 7PF
C710 MURATA E02-0426-0 Chip Trimmer Cap, 2PIE 6PF
C711 MURATA E02-0907-0 Chip Cap, 1005 J 16PF 10V
C712 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C714 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C715 HITACHI E02-0383-0 Chip Tantal, 22uF-M/10V(A)
C716 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C717 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C718 TDK E02-0011-0 Chip Cap, 1005 C 4PF
C719 TDK E02-0019-0 Chip Cap, 1005 D 7PF
C721 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C722 MURATA E02-0426-0 Chip Trimmer Cap, 2PIE 6PF
C723 TDK E02-0026-0 Chip Cap, 1005 C 0.5PF
C724 TDK E02-0093-0 Chip Cap, 1005 J 12PF
C725 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C726 TDK E02-0003-0 Chip Cap, 1005 C 1PF
C727 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C728 TDK E02-0013-0 Chip Cap, 1005 C 3PF
C729 TDK E02-0016-0 Chip Cap, 1005 D 6PF
C730 TDK E02-0006-0 Chip Cap, 1005 C 2PF
C731 TDK E02-0006-0 Chip Cap, 1005 C 2PF
C738 TDK E02-0019-0 Chip Cap, 1005 D 7PF
C739 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C740 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C741 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C746 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C747 TDK E02-0029-0 Chip Cap, 1005 D 10PF
Circuit
Ref.
Supplier
Supplier Part
No.
Description
C748 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C749 TDK E02-0076-0 Chip Cap, 1608 Z 105PF
C750 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C751 HITACHI E02-0339-0 Chip Tantal, 1uF-M/35V(A)
C752 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C753 PANASONIC E02-0322-0 Film Chip Cap, 3216 J 473PF
C754 PANASONIC E02-0322-0 Film Chip Cap, 3216 J 473PF
C755 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C756 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C1001 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1002 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1003 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1004 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1005 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1006 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1007 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1008 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1009 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1010 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1011 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1012 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1013 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1014 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1015 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1016 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C1017 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C1018 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C1019 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1020 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1021 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1022 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1023 TDK E02-0233-0 Chip Cap, 1005 J 47PF
Circuit
Ref.
Supplier
Supplier Part
No.
Description
C1024 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1025 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1026 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1027 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1028 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1029 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1030 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1031 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1032 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1033 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1034 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1035 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1036 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1037 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1038 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1039 TDK E02-0233-0 Chip Cap, 1005 J 47PF
CF1
CF1
4
BGTech
BGTech
E17-0003-0
E17-000057-00
Ceramic Filter, ELFY455F
CQ, Ceramic Filter,
LTWC455F
CF2
CF2
4
BGTech
BGTech
E17-0004-0
E17-000058-00
Ceramic Filter, ELFY455H
CQ, Ceramic Filter,
LTWC455H
CR110 BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
CR111 BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
CR112
1
BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
CR113
1
BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
CR114
1
BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
CR115
1
BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
CR116 KEC E06-0004-0 DIODE, KDS-160E (ESM)
CR117 KEC E06-0004-0 DIODE, KDS-160E (ESM)
CR201 KEC E06-0005-0 DIODE, KDS 181
CR202 KEC E06-0005-0 DIODE, KDS 181
CR301 KEC E06-0002-0 DIODE, KDS-114
