Motorola P100 Series Detailed Service Manual

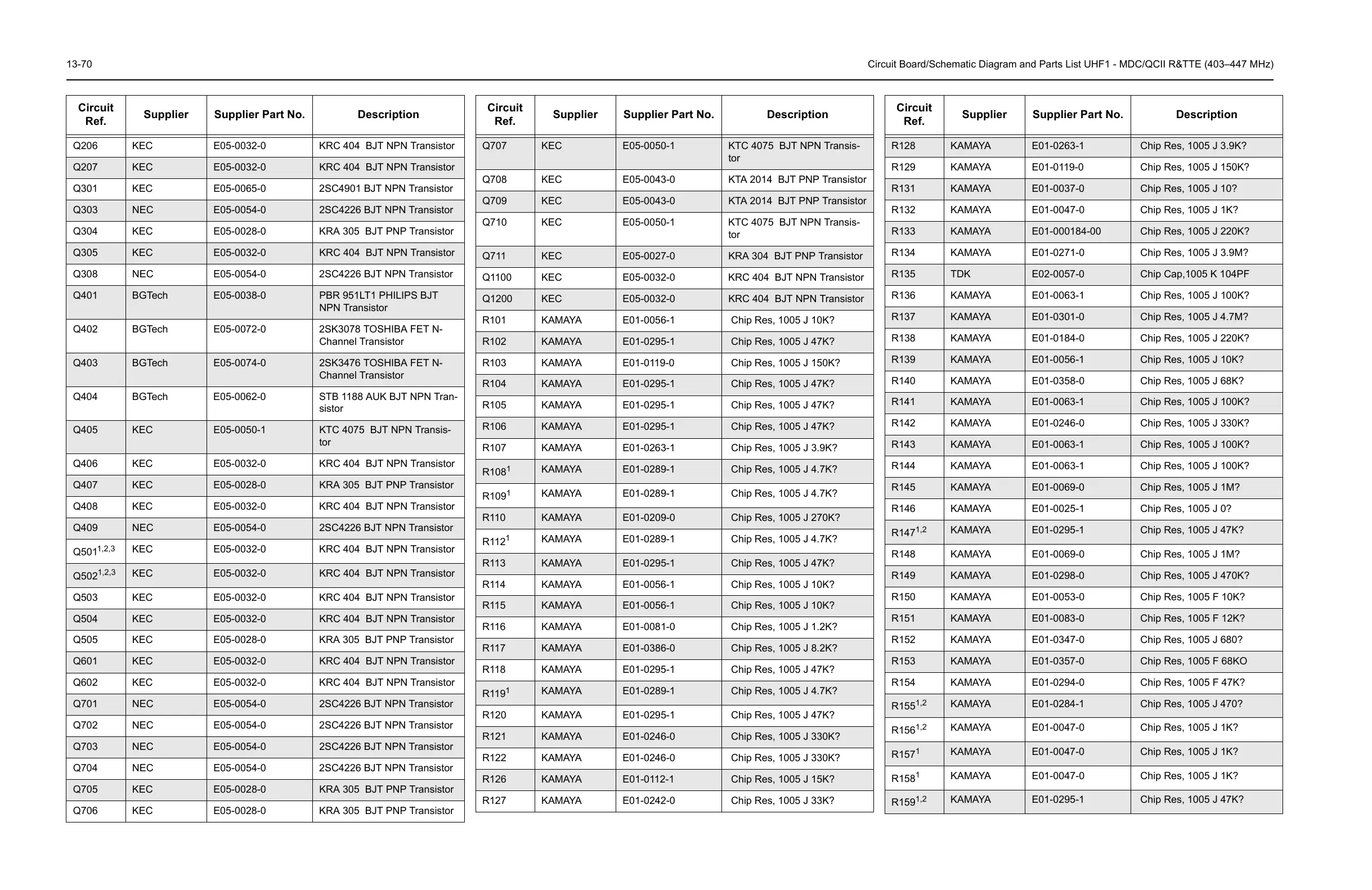

13-70 Circuit Board/Schematic Diagram and Parts List UHF1 - MDC/QCII R&TTE (403–447 MHz)
Q206 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q207 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q301 KEC E05-0065-0 2SC4901 BJT NPN Transistor
Q303 NEC E05-0054-0 2SC4226 BJT NPN Transistor
Q304 KEC E05-0028-0 KRA 305 BJT PNP Transistor
Q305 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q308 NEC E05-0054-0 2SC4226 BJT NPN Transistor
Q401 BGTech E05-0038-0 PBR 951LT1 PHILIPS BJT
NPN Transistor
Q402 BGTech E05-0072-0 2SK3078 TOSHIBA FET N-
Channel Transistor
Q403 BGTech E05-0074-0 2SK3476 TOSHIBA FET N-
Channel Transistor
Q404 BGTech E05-0062-0 STB 1188 AUK BJT NPN Tran-
sistor
Q405 KEC E05-0050-1 KTC 4075 BJT NPN Transis-
tor
Q406 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q407 KEC E05-0028-0 KRA 305 BJT PNP Transistor
Q408 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q409 NEC E05-0054-0 2SC4226 BJT NPN Transistor
Q501
1,2,3
KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q502
1,2,3
KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q503 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q504 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q505 KEC E05-0028-0 KRA 305 BJT PNP Transistor
Q601 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q602 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q701 NEC E05-0054-0 2SC4226 BJT NPN Transistor
Q702 NEC E05-0054-0 2SC4226 BJT NPN Transistor
Q703 NEC E05-0054-0 2SC4226 BJT NPN Transistor
Q704 NEC E05-0054-0 2SC4226 BJT NPN Transistor
Q705 KEC E05-0028-0 KRA 305 BJT PNP Transistor
Q706 KEC E05-0028-0 KRA 305 BJT PNP Transistor
Circuit
Ref.
Supplier Supplier Part No. Description
Q707 KEC E05-0050-1 KTC 4075 BJT NPN Transis-
tor
Q708 KEC E05-0043-0 KTA 2014 BJT PNP Transistor
Q709 KEC E05-0043-0 KTA 2014 BJT PNP Transistor
Q710 KEC E05-0050-1 KTC 4075 BJT NPN Transis-
tor
Q711 KEC E05-0027-0 KRA 304 BJT PNP Transistor
Q1100 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q1200 KEC E05-0032-0 KRC 404 BJT NPN Transistor
R101 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R102 KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R103 KAMAYA E01-0119-0 Chip Res, 1005 J 150K?
R104 KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R105 KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R106 KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R107 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K?
R108
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K?
R109
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K?
R110 KAMAYA E01-0209-0 Chip Res, 1005 J 270K?
R112
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K?
R113 KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R114 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R115 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R116 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K?
R117 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K?
R118 KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R119
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K?
R120 KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R121 KAMAYA E01-0246-0 Chip Res, 1005 J 330K?
R122 KAMAYA E01-0246-0 Chip Res, 1005 J 330K?
R126 KAMAYA E01-0112-1 Chip Res, 1005 J 15K?
R127 KAMAYA E01-0242-0 Chip Res, 1005 J 33K?
Circuit
Ref.
Supplier Supplier Part No. Description
R128 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K?
R129 KAMAYA E01-0119-0 Chip Res, 1005 J 150K?
R131 KAMAYA E01-0037-0 Chip Res, 1005 J 10?
R132 KAMAYA E01-0047-0 Chip Res, 1005 J 1K?
R133 KAMAYA E01-000184-00 Chip Res, 1005 J 220K?
R134 KAMAYA E01-0271-0 Chip Res, 1005 J 3.9M?
R135 TDK E02-0057-0 Chip Cap,1005 K 104PF
R136 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R137 KAMAYA E01-0301-0 Chip Res, 1005 J 4.7M?
R138 KAMAYA E01-0184-0 Chip Res, 1005 J 220K?
R139 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R140 KAMAYA E01-0358-0 Chip Res, 1005 J 68K?
R141 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R142 KAMAYA E01-0246-0 Chip Res, 1005 J 330K?
R143 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R144 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R145 KAMAYA E01-0069-0 Chip Res, 1005 J 1M?
R146 KAMAYA E01-0025-1 Chip Res, 1005 J 0?
R147
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R148 KAMAYA E01-0069-0 Chip Res, 1005 J 1M?
R149 KAMAYA E01-0298-0 Chip Res, 1005 J 470K?
R150 KAMAYA E01-0053-0 Chip Res, 1005 F 10K?
R151 KAMAYA E01-0083-0 Chip Res, 1005 F 12K?
R152 KAMAYA E01-0347-0 Chip Res, 1005 J 680?
R153 KAMAYA E01-0357-0 Chip Res, 1005 F 68KO
R154 KAMAYA E01-0294-0 Chip Res, 1005 F 47K?
R155
1,2
KAMAYA E01-0284-1 Chip Res, 1005 J 470?
R156
1,2
KAMAYA E01-0047-0 Chip Res, 1005 J 1K?
R157
1
KAMAYA E01-0047-0 Chip Res, 1005 J 1K?
R158
1
KAMAYA E01-0047-0 Chip Res, 1005 J 1K?
R159
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
Circuit
Ref.
Supplier Supplier Part No. Description
