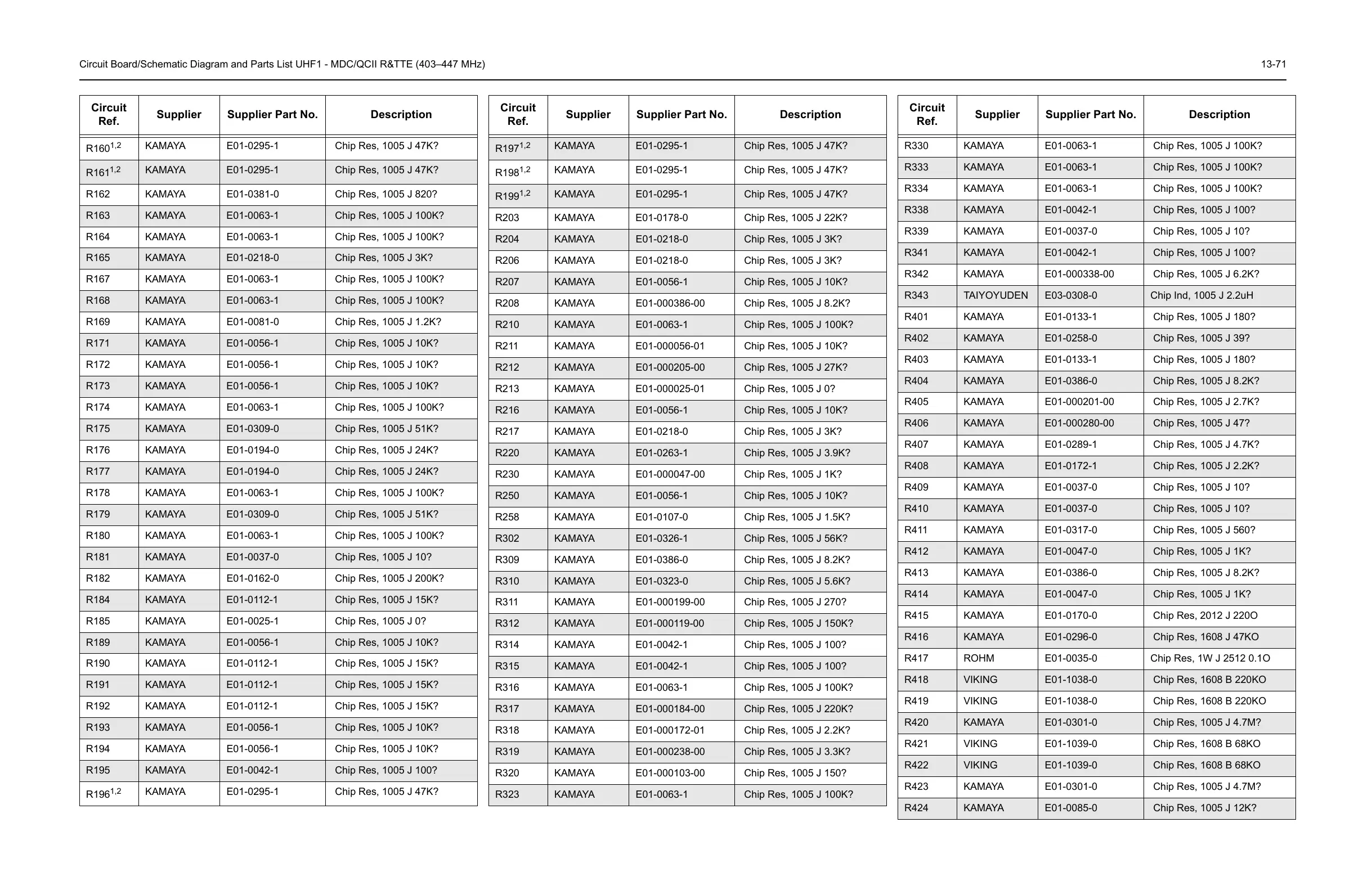

Circuit Board/Schematic Diagram and Parts List UHF1 - MDC/QCII R&TTE (403–447 MHz) 13-71
R160
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R161
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R162 KAMAYA E01-0381-0 Chip Res, 1005 J 820?
R163 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R164 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R165 KAMAYA E01-0218-0 Chip Res, 1005 J 3K?
R167 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R168 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R169 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K?
R171 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R172 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R173 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R174 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R175 KAMAYA E01-0309-0 Chip Res, 1005 J 51K?
R176 KAMAYA E01-0194-0 Chip Res, 1005 J 24K?
R177 KAMAYA E01-0194-0 Chip Res, 1005 J 24K?
R178 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R179 KAMAYA E01-0309-0 Chip Res, 1005 J 51K?
R180 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R181 KAMAYA E01-0037-0 Chip Res, 1005 J 10?
R182 KAMAYA E01-0162-0 Chip Res, 1005 J 200K?
R184 KAMAYA E01-0112-1 Chip Res, 1005 J 15K?
R185 KAMAYA E01-0025-1 Chip Res, 1005 J 0?
R189 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R190 KAMAYA E01-0112-1 Chip Res, 1005 J 15K?
R191 KAMAYA E01-0112-1 Chip Res, 1005 J 15K?
R192 KAMAYA E01-0112-1 Chip Res, 1005 J 15K?
R193 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R194 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R195 KAMAYA E01-0042-1 Chip Res, 1005 J 100?
R196
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
Circuit
Ref.
Supplier Supplier Part No. Description
R197
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R198
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R199
1,2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R203 KAMAYA E01-0178-0 Chip Res, 1005 J 22K?
R204 KAMAYA E01-0218-0 Chip Res, 1005 J 3K?
R206 KAMAYA E01-0218-0 Chip Res, 1005 J 3K?
R207 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R208 KAMAYA E01-000386-00 Chip Res, 1005 J 8.2K?
R210 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R211 KAMAYA E01-000056-01 Chip Res, 1005 J 10K?
R212 KAMAYA E01-000205-00 Chip Res, 1005 J 27K?
R213 KAMAYA E01-000025-01 Chip Res, 1005 J 0?
R216 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R217 KAMAYA E01-0218-0 Chip Res, 1005 J 3K?
R220 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K?
R230 KAMAYA E01-000047-00 Chip Res, 1005 J 1K?
R250 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R258 KAMAYA E01-0107-0 Chip Res, 1005 J 1.5K?
R302 KAMAYA E01-0326-1 Chip Res, 1005 J 56K?
R309 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K?
R310 KAMAYA E01-0323-0 Chip Res, 1005 J 5.6K?
R311 KAMAYA E01-000199-00 Chip Res, 1005 J 270?
R312 KAMAYA E01-000119-00 Chip Res, 1005 J 150K?
R314 KAMAYA E01-0042-1 Chip Res, 1005 J 100?
R315 KAMAYA E01-0042-1 Chip Res, 1005 J 100?
R316 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R317 KAMAYA E01-000184-00 Chip Res, 1005 J 220K?
R318 KAMAYA E01-000172-01 Chip Res, 1005 J 2.2K?
R319 KAMAYA E01-000238-00 Chip Res, 1005 J 3.3K?
R320 KAMAYA E01-000103-00 Chip Res, 1005 J 150?
R323 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
Circuit
Ref.
Supplier Supplier Part No. Description
R330 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R333 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R334 KAMAYA E01-0063-1 Chip Res, 1005 J 100K?
R338 KAMAYA E01-0042-1 Chip Res, 1005 J 100?
R339 KAMAYA E01-0037-0 Chip Res, 1005 J 10?
R341 KAMAYA E01-0042-1 Chip Res, 1005 J 100?
R342 KAMAYA E01-000338-00 Chip Res, 1005 J 6.2K?
R343 TAIYOYUDEN E03-0308-0 Chip Ind, 1005 J 2.2uH
R401 KAMAYA E01-0133-1 Chip Res, 1005 J 180?
R402 KAMAYA E01-0258-0 Chip Res, 1005 J 39?
R403 KAMAYA E01-0133-1 Chip Res, 1005 J 180?
R404 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K?
R405 KAMAYA E01-000201-00 Chip Res, 1005 J 2.7K?
R406 KAMAYA E01-000280-00 Chip Res, 1005 J 47?
R407 KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K?
R408 KAMAYA E01-0172-1 Chip Res, 1005 J 2.2K?
R409 KAMAYA E01-0037-0 Chip Res, 1005 J 10?
R410 KAMAYA E01-0037-0 Chip Res, 1005 J 10?
R411 KAMAYA E01-0317-0 Chip Res, 1005 J 560?
R412 KAMAYA E01-0047-0 Chip Res, 1005 J 1K?
R413 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K?
R414 KAMAYA E01-0047-0 Chip Res, 1005 J 1K?
R415 KAMAYA E01-0170-0 Chip Res, 2012 J 220O
R416 KAMAYA E01-0296-0 Chip Res, 1608 J 47KO
R417 ROHM E01-0035-0 Chip Res, 1W J 2512 0.1O
R418 VIKING E01-1038-0 Chip Res, 1608 B 220KO
R419 VIKING E01-1038-0 Chip Res, 1608 B 220KO
R420 KAMAYA E01-0301-0 Chip Res, 1005 J 4.7M?
R421 VIKING E01-1039-0 Chip Res, 1608 B 68KO
R422 VIKING E01-1039-0 Chip Res, 1608 B 68KO
R423 KAMAYA E01-0301-0 Chip Res, 1005 J 4.7M?
R424 KAMAYA E01-0085-0 Chip Res, 1005 J 12K?
Circuit
Ref.
Supplier Supplier Part No. Description
