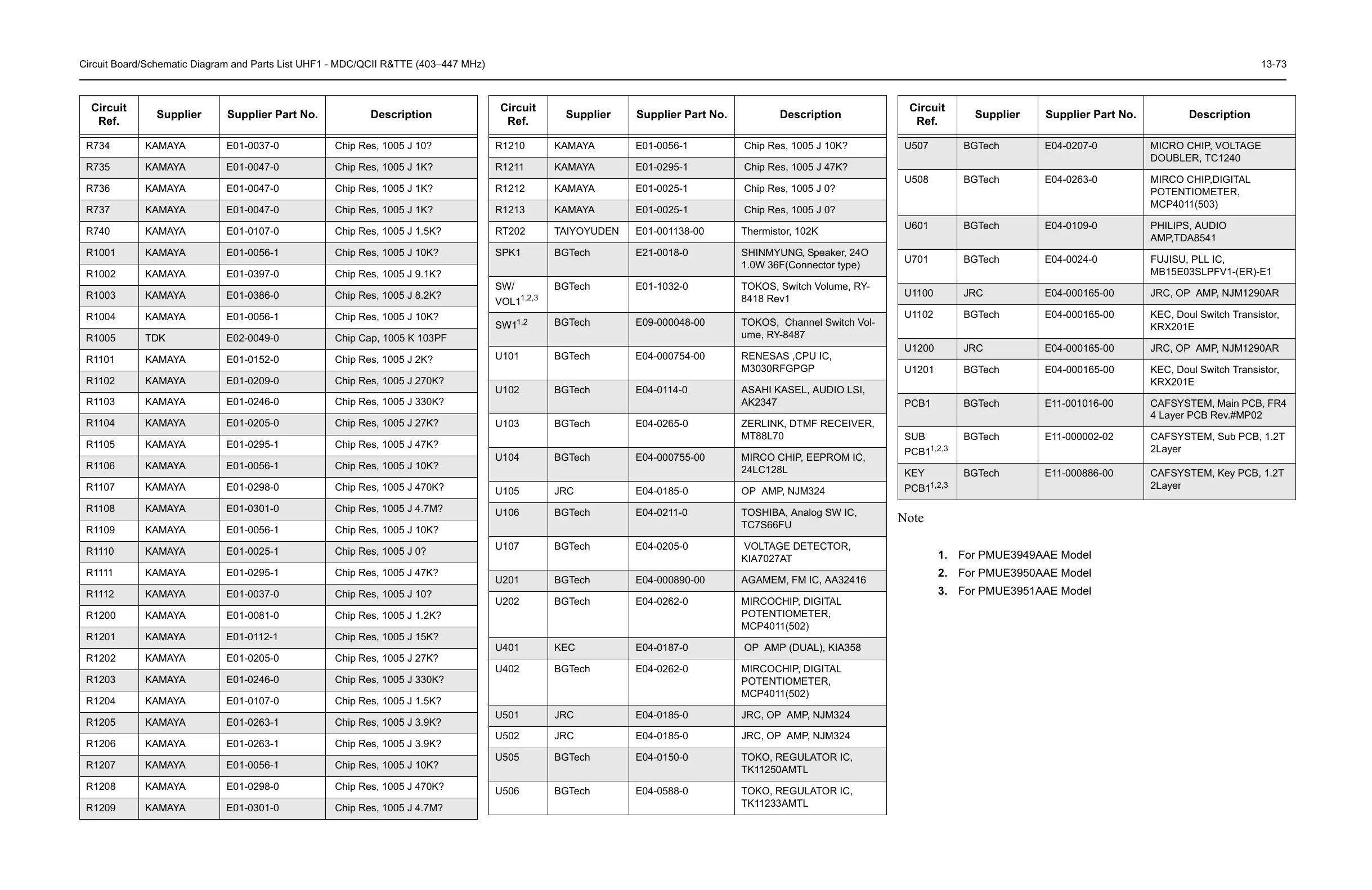

Circuit Board/Schematic Diagram and Parts List UHF1 - MDC/QCII R&TTE (403–447 MHz) 13-73
Note
1. For PMUE3949AAE Model
2. For PMUE3950AAE Model
3. For PMUE3951AAE Model
R734 KAMAYA E01-0037-0 Chip Res, 1005 J 10?
R735 KAMAYA E01-0047-0 Chip Res, 1005 J 1K?
R736 KAMAYA E01-0047-0 Chip Res, 1005 J 1K?
R737 KAMAYA E01-0047-0 Chip Res, 1005 J 1K?
R740 KAMAYA E01-0107-0 Chip Res, 1005 J 1.5K?
R1001 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R1002 KAMAYA E01-0397-0 Chip Res, 1005 J 9.1K?
R1003 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K?
R1004 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R1005 TDK E02-0049-0 Chip Cap, 1005 K 103PF
R1101 KAMAYA E01-0152-0 Chip Res, 1005 J 2K?
R1102 KAMAYA E01-0209-0 Chip Res, 1005 J 270K?
R1103 KAMAYA E01-0246-0 Chip Res, 1005 J 330K?
R1104 KAMAYA E01-0205-0 Chip Res, 1005 J 27K?
R1105 KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R1106 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R1107 KAMAYA E01-0298-0 Chip Res, 1005 J 470K?
R1108 KAMAYA E01-0301-0 Chip Res, 1005 J 4.7M?
R1109 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R1110 KAMAYA E01-0025-1 Chip Res, 1005 J 0?
R1111 KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R1112 KAMAYA E01-0037-0 Chip Res, 1005 J 10?
R1200 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K?
R1201 KAMAYA E01-0112-1 Chip Res, 1005 J 15K?
R1202 KAMAYA E01-0205-0 Chip Res, 1005 J 27K?
R1203 KAMAYA E01-0246-0 Chip Res, 1005 J 330K?
R1204 KAMAYA E01-0107-0 Chip Res, 1005 J 1.5K?
R1205 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K?
R1206 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K?
R1207 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R1208 KAMAYA E01-0298-0 Chip Res, 1005 J 470K?
R1209 KAMAYA E01-0301-0 Chip Res, 1005 J 4.7M?
Circuit
Ref.
Supplier Supplier Part No. Description
R1210 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
R1211 KAMAYA E01-0295-1 Chip Res, 1005 J 47K?
R1212 KAMAYA E01-0025-1 Chip Res, 1005 J 0?
R1213 KAMAYA E01-0025-1 Chip Res, 1005 J 0?
RT202 TAIYOYUDEN E01-001138-00 Thermistor, 102K
SPK1 BGTech E21-0018-0 SHINMYUNG, Speaker, 24O
1.0W 36F(Connector type)
SW/
VOL1
1,2,3
BGTech E01-1032-0 TOKOS, Switch Volume, RY-
8418 Rev1
SW1
1,2
BGTech E09-000048-00 TOKOS, Channel Switch Vol-
ume, RY-8487
U101 BGTech E04-000754-00 RENESAS ,CPU IC,
M3030RFGPGP
U102 BGTech E04-0114-0 ASAHI KASEL, AUDIO LSI,
AK2347
U103 BGTech E04-0265-0 ZERLINK, DTMF RECEIVER,
MT88L70
U104 BGTech E04-000755-00 MIRCO CHIP, EEPROM IC,
24LC128L
U105 JRC E04-0185-0 OP AMP, NJM324
U106 BGTech E04-0211-0 TOSHIBA, Analog SW IC,
TC7S66FU
U107 BGTech E04-0205-0 VOLTAGE DETECTOR,
KIA7027AT
U201 BGTech E04-000890-00 AGAMEM, FM IC, AA32416
U202 BGTech E04-0262-0 MIRCOCHIP, DIGITAL
POTENTIOMETER,
MCP4011(502)
U401 KEC E04-0187-0 OP AMP (DUAL), KIA358
U402 BGTech E04-0262-0 MIRCOCHIP, DIGITAL
POTENTIOMETER,
MCP4011(502)
U501 JRC E04-0185-0 JRC, OP AMP, NJM324
U502 JRC E04-0185-0 JRC, OP AMP, NJM324
U505 BGTech E04-0150-0 TOKO, REGULATOR IC,
TK11250AMTL
U506 BGTech E04-0588-0 TOKO, REGULATOR IC,
TK11233AMTL
Circuit
Ref.
Supplier Supplier Part No. Description
U507 BGTech E04-0207-0 MICRO CHIP, VOLTAGE
DOUBLER, TC1240
U508 BGTech E04-0263-0 MIRCO CHIP,DIGITAL
POTENTIOMETER,
MCP4011(503)
U601 BGTech E04-0109-0 PHILIPS, AUDIO
AMP,TDA8541
U701 BGTech E04-0024-0 FUJISU, PLL IC,
MB15E03SLPFV1-(ER)-E1
U1100 JRC E04-000165-00 JRC, OP AMP, NJM1290AR
U1102 BGTech E04-000165-00 KEC, Doul Switch Transistor,
KRX201E
U1200 JRC E04-000165-00 JRC, OP AMP, NJM1290AR
U1201 BGTech E04-000165-00 KEC, Doul Switch Transistor,
KRX201E
PCB1 BGTech E11-001016-00 CAFSYSTEM, Main PCB, FR4
4 Layer PCB Rev.#MP02
SUB
PCB1
1,2,3
BGTech E11-000002-02 CAFSYSTEM, Sub PCB, 1.2T
2Layer
KEY
PCB1
1,2,3
BGTech E11-000886-00 CAFSYSTEM, Key PCB, 1.2T
2Layer
Circuit
Ref.
Supplier Supplier Part No. Description
To Next Page
