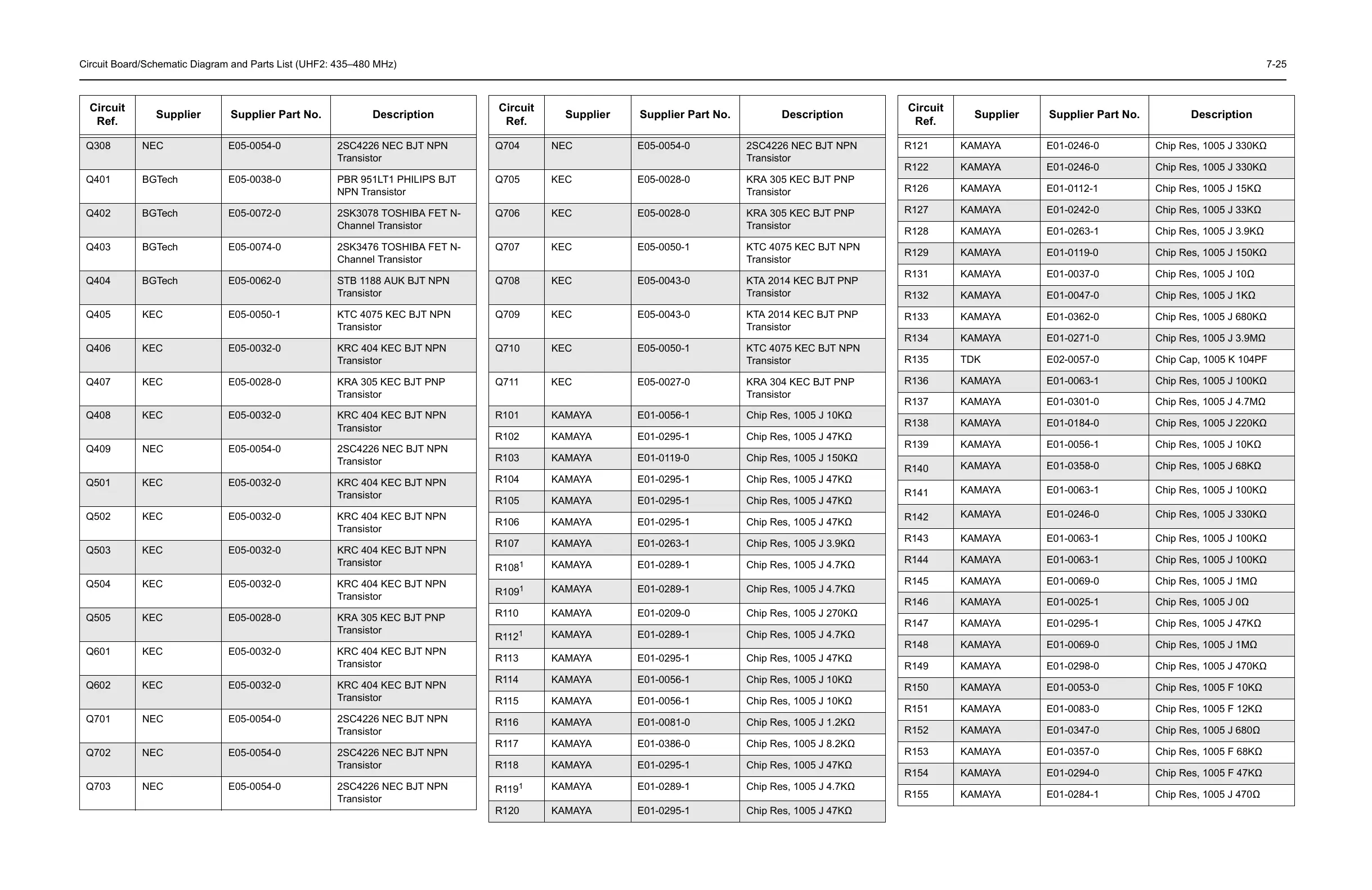

Motorola P100 Series Detailed Service Manual

Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz) 7-25
Q308 NEC E05-0054-0 2SC4226 NEC BJT NPN
Transistor
Q401 BGTech E05-0038-0 PBR 951LT1 PHILIPS BJT
NPN Transistor
Q402 BGTech E05-0072-0 2SK3078 TOSHIBA FET N-
Channel Transistor
Q403 BGTech E05-0074-0 2SK3476 TOSHIBA FET N-
Channel Transistor
Q404 BGTech E05-0062-0 STB 1188 AUK BJT NPN
Transistor
Q405 KEC E05-0050-1 KTC 4075 KEC BJT NPN
Transistor
Q406 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q407 KEC E05-0028-0 KRA 305 KEC BJT PNP
Transistor
Q408 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q409 NEC E05-0054-0 2SC4226 NEC BJT NPN
Transistor
Q501 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q502 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q503 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q504 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q505 KEC E05-0028-0 KRA 305 KEC BJT PNP
Transistor
Q601 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q602 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q701 NEC E05-0054-0 2SC4226 NEC BJT NPN
Transistor
Q702 NEC E05-0054-0 2SC4226 NEC BJT NPN
Transistor
Q703 NEC E05-0054-0 2SC4226 NEC BJT NPN
Transistor
Circuit
Ref.
Supplier Supplier Part No. Description
Q704 NEC E05-0054-0 2SC4226 NEC BJT NPN
Transistor
Q705 KEC E05-0028-0 KRA 305 KEC BJT PNP
Transistor
Q706 KEC E05-0028-0 KRA 305 KEC BJT PNP
Transistor
Q707 KEC E05-0050-1 KTC 4075 KEC BJT NPN
Transistor
Q708 KEC E05-0043-0 KTA 2014 KEC BJT PNP
Transistor
Q709 KEC E05-0043-0 KTA 2014 KEC BJT PNP
Transistor
Q710 KEC E05-0050-1 KTC 4075 KEC BJT NPN
Transistor
Q711 KEC E05-0027-0 KRA 304 KEC BJT PNP
Transistor
R101 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R102 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R103 KAMAYA E01-0119-0 Chip Res, 1005 J 150K
R104 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R105 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R106 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R107 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K
R108
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R109
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R110 KAMAYA E01-0209-0 Chip Res, 1005 J 270K
R112
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R113 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R114 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R115 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R116 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K
R117 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K
R118 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R119
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R120 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
Circuit
Ref.
Supplier Supplier Part No. Description
R121 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R122 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R126 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R127 KAMAYA E01-0242-0 Chip Res, 1005 J 33K
R128 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K
R129 KAMAYA E01-0119-0 Chip Res, 1005 J 150K
R131 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R132 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R133 KAMAYA E01-0362-0 Chip Res, 1005 J 680K
R134 KAMAYA E01-0271-0 Chip Res, 1005 J 3.9M
R135 TDK E02-0057-0 Chip Cap, 1005 K 104PF
R136 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R137 KAMAYA E01-0301-0 Chip Res, 1005 J 4.7M
R138 KAMAYA E01-0184-0 Chip Res, 1005 J 220K
R139 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R140
KAMAYA E01-0358-0 Chip Res, 1005 J 68K
R141
KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R142
KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R143 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R144 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R145 KAMAYA E01-0069-0 Chip Res, 1005 J 1M
R146 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R147 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R148 KAMAYA E01-0069-0 Chip Res, 1005 J 1M
R149 KAMAYA E01-0298-0 Chip Res, 1005 J 470K
R150 KAMAYA E01-0053-0 Chip Res, 1005 F 10K
R151 KAMAYA E01-0083-0 Chip Res, 1005 F 12K
R152 KAMAYA E01-0347-0 Chip Res, 1005 J 680
R153 KAMAYA E01-0357-0 Chip Res, 1005 F 68K
R154 KAMAYA E01-0294-0 Chip Res, 1005 F 47K
R155 KAMAYA E01-0284-1 Chip Res, 1005 J 470
Circuit
Ref.
Supplier Supplier Part No. Description
