Motorola P100 Series Detailed Service Manual

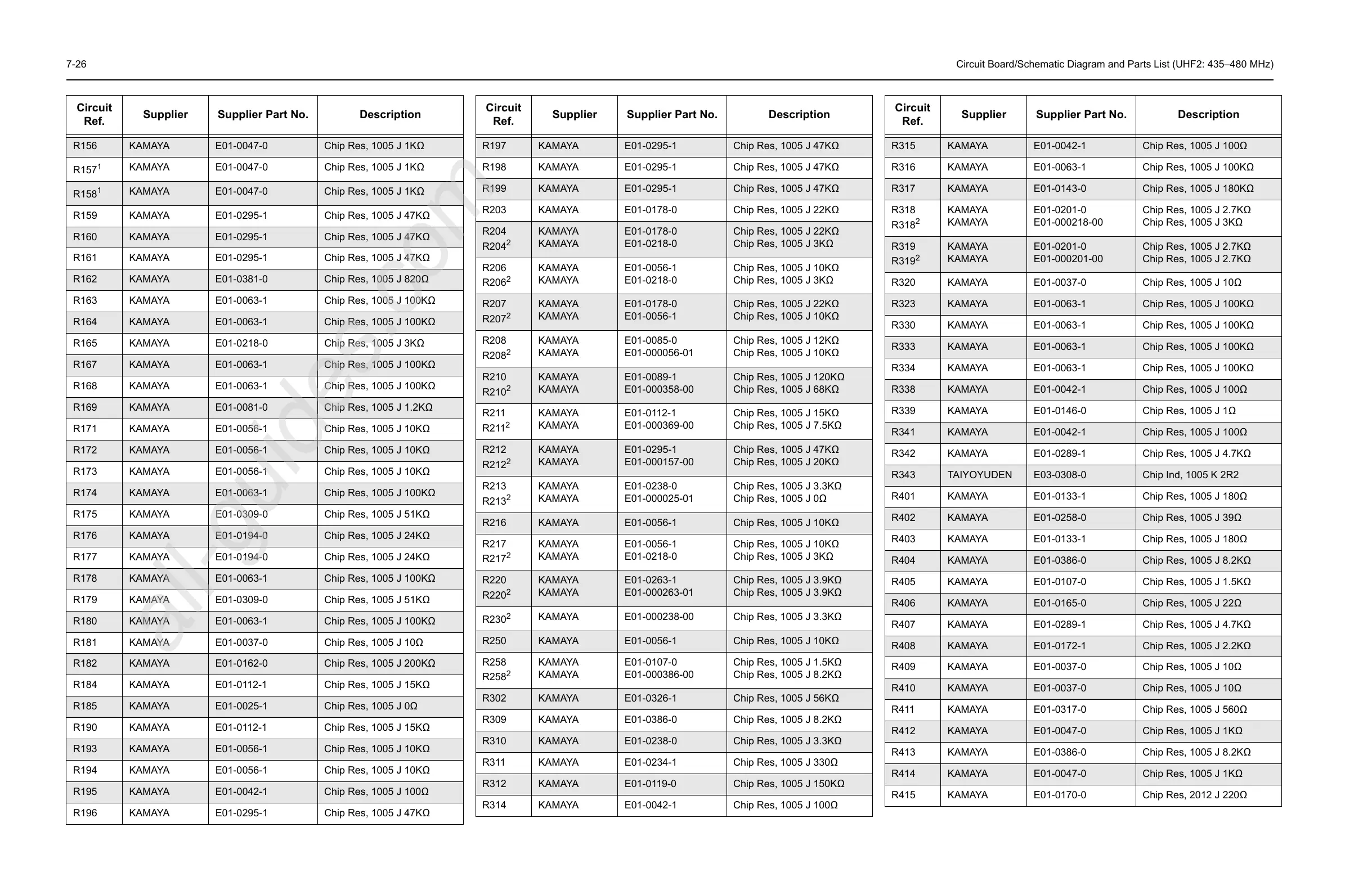

7-26 Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz)
R156 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R157
1
KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R158
1
KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R159 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R160 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R161 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R162 KAMAYA E01-0381-0 Chip Res, 1005 J 820
R163 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R164 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R165 KAMAYA E01-0218-0 Chip Res, 1005 J 3K
R167 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R168 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R169 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K
R171 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R172 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R173 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R174 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R175 KAMAYA E01-0309-0 Chip Res, 1005 J 51K
R176 KAMAYA E01-0194-0 Chip Res, 1005 J 24K
R177 KAMAYA E01-0194-0 Chip Res, 1005 J 24K
R178 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R179 KAMAYA E01-0309-0 Chip Res, 1005 J 51K
R180 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R181 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R182 KAMAYA E01-0162-0 Chip Res, 1005 J 200K
R184 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R185 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R190 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R193 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R194 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R195 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R196 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
Circuit
Ref.
Supplier Supplier Part No. Description
R197 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R198 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R199 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R203 KAMAYA E01-0178-0 Chip Res, 1005 J 22K
R204
R204
2
KAMAYA
KAMAYA
E01-0178-0
E01-0218-0
Chip Res, 1005 J 22K
Chip Res, 1005 J 3K
R206
R206
2
KAMAYA
KAMAYA
E01-0056-1
E01-0218-0
Chip Res, 1005 J 10K
Chip Res, 1005 J 3K
R207
R207
2
KAMAYA
KAMAYA
E01-0178-0
E01-0056-1
Chip Res, 1005 J 22K
Chip Res, 1005 J 10K
R208
R208
2
KAMAYA
KAMAYA
E01-0085-0
E01-000056-01
Chip Res, 1005 J 12K
Chip Res, 1005 J 10K
R210
R210
2
KAMAYA
KAMAYA
E01-0089-1
E01-000358-00
Chip Res, 1005 J 120K
Chip Res, 1005 J 68K
R211
R211
2
KAMAYA
KAMAYA
E01-0112-1
E01-000369-00
Chip Res, 1005 J 15K
Chip Res, 1005 J 7.5K
R212
R212
2
KAMAYA
KAMAYA
E01-0295-1
E01-000157-00
Chip Res, 1005 J 47K
Chip Res, 1005 J 20K
R213
R213
2
KAMAYA
KAMAYA
E01-0238-0
E01-000025-01
Chip Res, 1005 J 3.3K
Chip Res, 1005 J 0
R216 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R217
R217
2
KAMAYA
KAMAYA
E01-0056-1
E01-0218-0
Chip Res, 1005 J 10K
Chip Res, 1005 J 3K
R220
R220
2
KAMAYA
KAMAYA
E01-0263-1
E01-000263-01
Chip Res, 1005 J 3.9K
Chip Res, 1005 J 3.9K
R230
2
KAMAYA E01-000238-00 Chip Res, 1005 J 3.3K
R250 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R258
R258
2
KAMAYA
KAMAYA
E01-0107-0
E01-000386-00
Chip Res, 1005 J 1.5K
Chip Res, 1005 J 8.2K
R302 KAMAYA E01-0326-1 Chip Res, 1005 J 56K
R309 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K
R310 KAMAYA E01-0238-0 Chip Res, 1005 J 3.3K
R311 KAMAYA E01-0234-1 Chip Res, 1005 J 330
R312 KAMAYA E01-0119-0 Chip Res, 1005 J 150K
R314 KAMAYA E01-0042-1 Chip Res, 1005 J 100
Circuit
Ref.
Supplier Supplier Part No. Description
R315 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R316 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R317 KAMAYA E01-0143-0 Chip Res, 1005 J 180K
R318
R318
2
KAMAYA
KAMAYA
E01-0201-0
E01-000218-00
Chip Res, 1005 J 2.7K
Chip Res, 1005 J 3K
R319
R319
2
KAMAYA
KAMAYA
E01-0201-0
E01-000201-00
Chip Res, 1005 J 2.7K
Chip Res, 1005 J 2.7K
R320 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R323 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R330 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R333 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R334 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R338 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R339 KAMAYA E01-0146-0 Chip Res, 1005 J 1
R341 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R342 KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R343 TAIYOYUDEN E03-0308-0 Chip Ind, 1005 K 2R2
R401 KAMAYA E01-0133-1 Chip Res, 1005 J 180
R402 KAMAYA E01-0258-0 Chip Res, 1005 J 39
R403 KAMAYA E01-0133-1 Chip Res, 1005 J 180
R404 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K
R405 KAMAYA E01-0107-0 Chip Res, 1005 J 1.5K
R406 KAMAYA E01-0165-0 Chip Res, 1005 J 22
R407 KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R408 KAMAYA E01-0172-1 Chip Res, 1005 J 2.2K
R409 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R410 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R411 KAMAYA E01-0317-0 Chip Res, 1005 J 560
R412 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R413 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K
R414 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R415 KAMAYA E01-0170-0 Chip Res, 2012 J 220
Circuit
Ref.
Supplier Supplier Part No. Description
