2QIP7100 Quick Start Guide

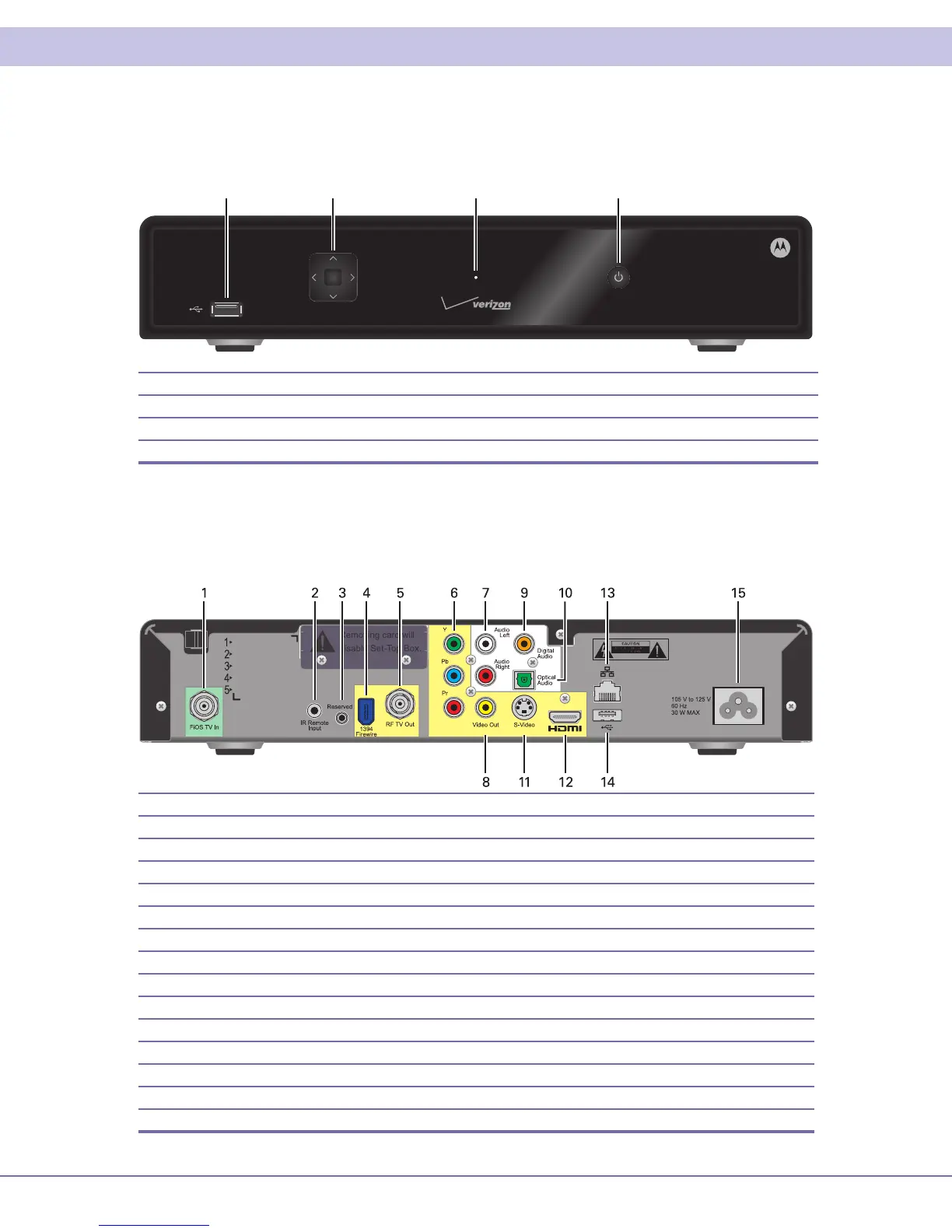

Front Panel
The front panel controls provide functional navigation if the remote control is lost or is temporarily out of service. Certain functions,
such as those requiring a numeric entry, require a remote control. Some connectors are not enabled and require the support of
application software.
Rear Panel
The rear panel contains a 3-prong power outlet; connectors for video, audio, and RF cabling; data output; and data interface connectors.
Some connectors are not enabled and require the support of application software.
Before You Begin
1 USB connector
2 Cursor — 4-way menu navigation
3 — Startup Indicator•
4 Power — Turns the set-top on and off (standby)
1 FiOS TV In — Connects to FiOS signal from your service provider
2 IR Remote Input — Connects to a remote control set-top accessory cable
3 Reserved – Service only
4 IEEE-1394 — Audio and video device connection
5 RF Out — Ch 3/4 modulated audio/video (SDTV) to TV or VCR
6 YPbPr — Component video output (HDTV)
7 Audio — Composite Audio L/R outputs
8 Video — Composite Video (SDTV) output
9 Digital Audio (Coaxial)* — Provides Dolby® Digital 5.1 audio or PCM output
10 Optical Audio (S/PDIF)* — Provides Dolby® Digital 5.1 audio or PCM output
11 S-Video — Connects to S-Video (SDTV) input of TV or VCR
12 HDMI — High-Definition TV (HDTV) connector
13 Ethernet* — Network connection
14 USB* 2.0 — High-Speed peripheral device connection
15 Power cord connector — 3-prong AC outlet
*Feature is dependent upon application setting and availability in content
