Motorola Radius CM200

6 Trunnion Installation
Tab
BELOW DASH MOUNTING
Mounting Surface
Mounting
Surface
Tab
Thumb Screw
(2)
TRANSMISSION HUMP MOUNTING
Tab
Thumb Screw
(2)
Sheet Metal
Screws
Trunnion Mounting
Bracket
Trunnion Mounting Bracket
FL0830250O -1
1.84"
(46mm)
2.92"
(73mm)
2.92"
(73mm)
1.84"
(46mm)
1.12"
(28mm)

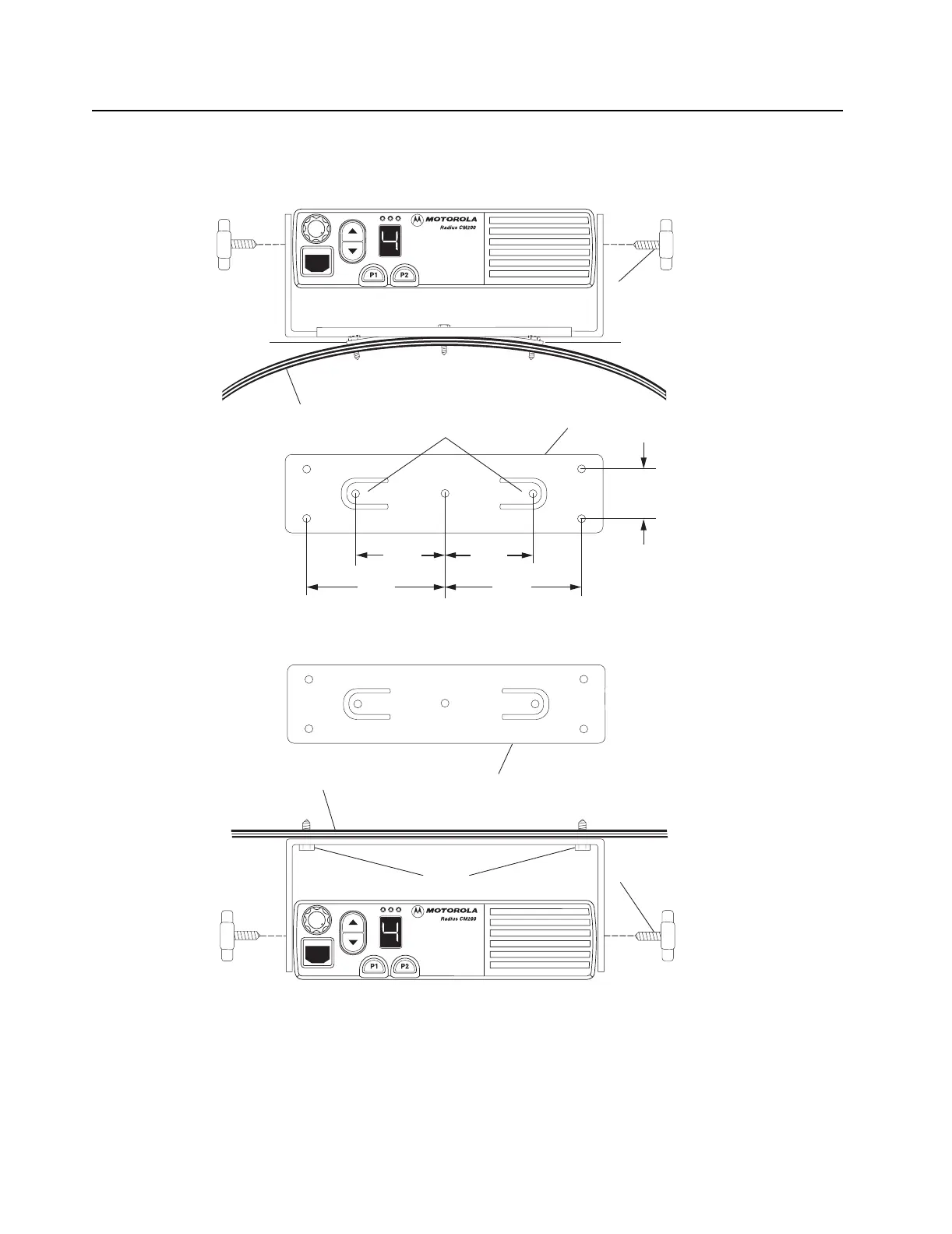

Figure 3-1. Transmission Hump Mounting (Top)
and Below Dash Mounting (Bottom)
