27
RADIO OVERVIEW
Charging a Radio and Battery using
a Multi Unit-Charger - MUC (Optional
Accessory)

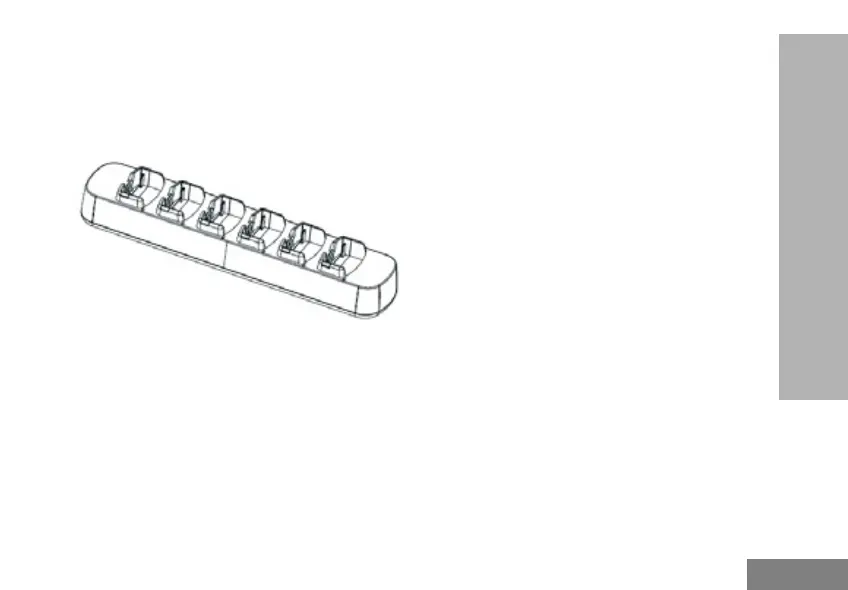

The Multi-Unit Charger (MUC) allows drop-in
charging of up to 6 radios or batteries. Batteries
can be charged with the radios or removed and
placed in the MUC separately. Each of the 6
charging pockets can hold a radio (with or
without the Holster) or battery, but not both.
1. Place the Multi-Unit Charger on a flat surface.
2. Insert the power cord plug into the MUC’s dual
pin connector .
3. Plug the power cord into an AC outlet.
4. Turn the radio OFF.
5. Set removable bracket for battery type
6. Insert the radio or battery into the charging
pocket with the radio.
Note:
• This Multi-Unit Charger clones up to 3 radios (3
Source radios and 3 Target radios). Refer to
“Cloning with a Multi Unit Charger (MUC)” on
page 53 for more information.
• More information on the Multi-Unit Charger’s
operation is available in the Instruction Sheets
provided with the MUC. For more information on
the parts and their part numbers, refer to Chapter
“Accessories” on page 79.
MN002895A01_final.book Page 27 Thursday, January 5, 2017 10:51 AM
