Configuration Guide
PN: 1725-36197-001_A.doc
6

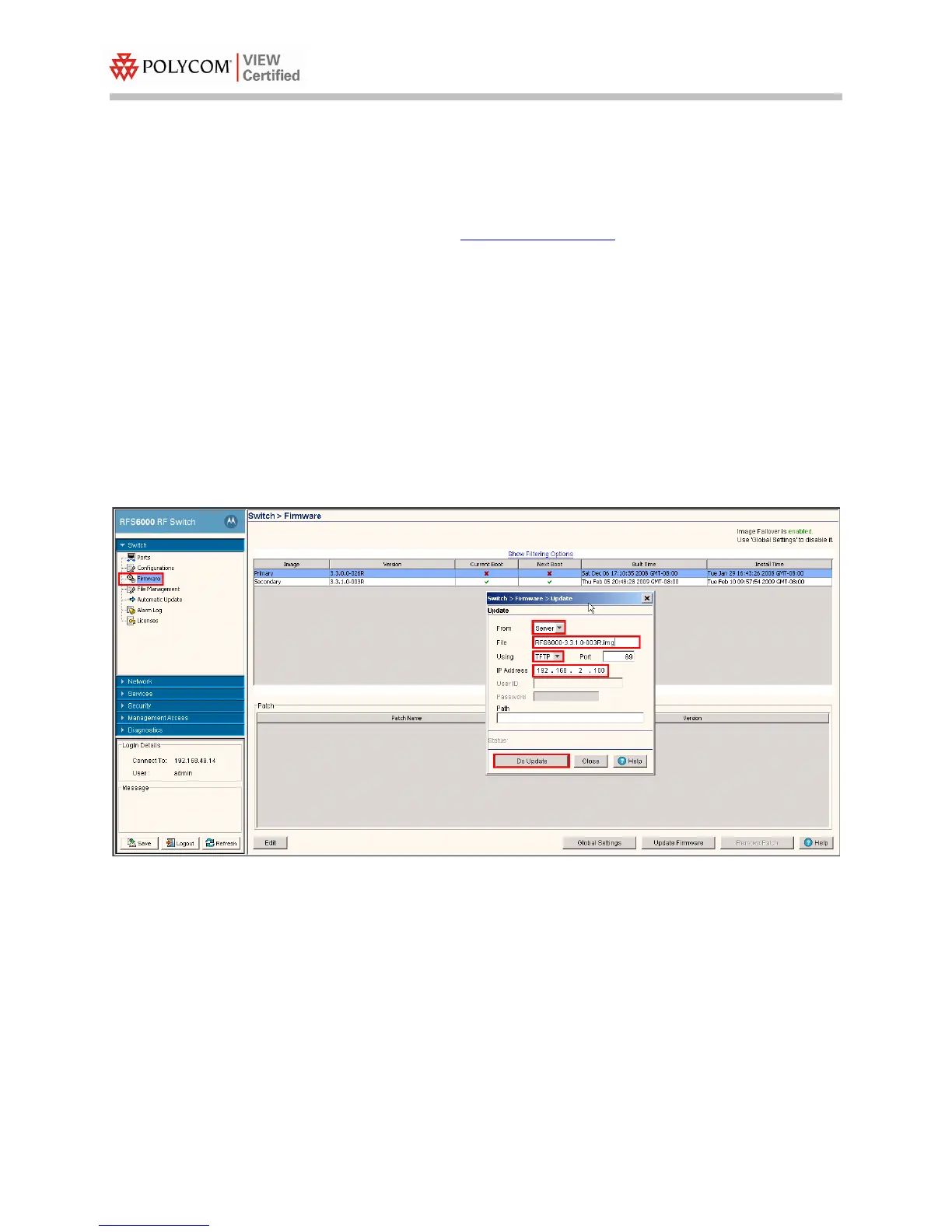

Installing firmware through the Web interface
1. Open the RFS6000 applet by entering the IP address of the
wireless switch: http://192.168.2.103
2. In the navigation pane under
Switch, click Firmware.
3. In the
Firmware screen, click the Update Firmware button located at
the lower right of the page.
4. In the
Update dialog box, select TFTP from the Using drop-down list.
5. At
File, enter the RFS6000 firmware image filename.
6. At
IP Address, enter the TFTP server IP address.
7. Click the
Do Update button.
8. After the RFS6000 Wireless Switch performs the upgrade,
navigate to the
Switch window.
