EN/12
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
9. To install the hands-free control module
0
0
0
0
0

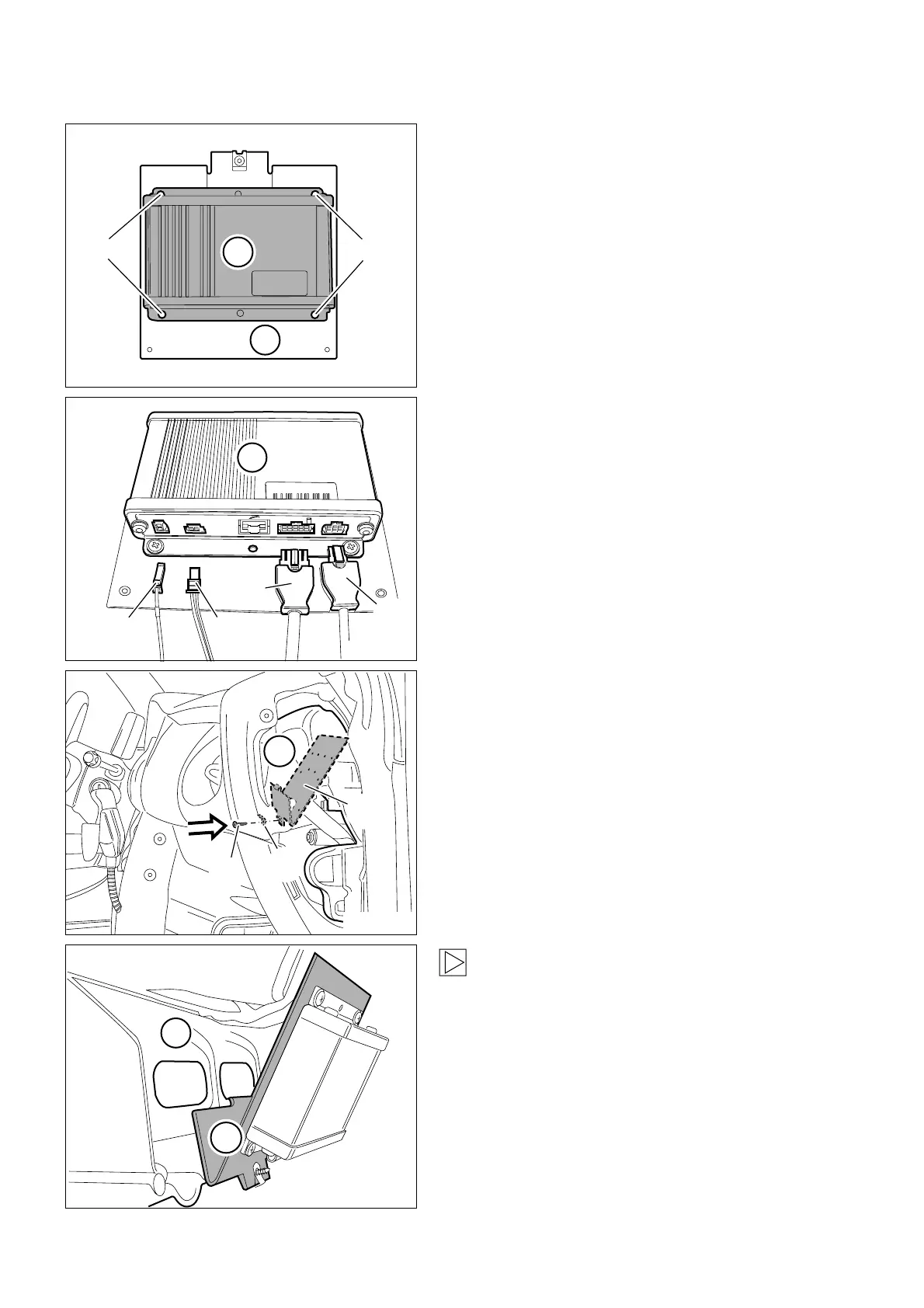

Secure the hands-free control module (1) to the holder
(3) using Philips screws (2).
0
Connect the speaker cable plug (1), the microphone
cable plug (2), the mobile phone holder plug (3) and
branch
A7
to the hands-free control module (4).
0
Hook the holder (1) into the instrument carrier (2) from
behind and fasten it in place using the bar (3) and a
Philips screw (4).
0
The figure shows the installed holder (1) with the
instrument carrier removed (2).
R50 0305 Z
2
2
3
1
R50 0210 Z
2
4
1
A7
3
2
1
3
4
R50 0246 Z
R50 0254 Z
2
1
