Motorola V60 - Installation and Cabling Diagram

EN/6
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002

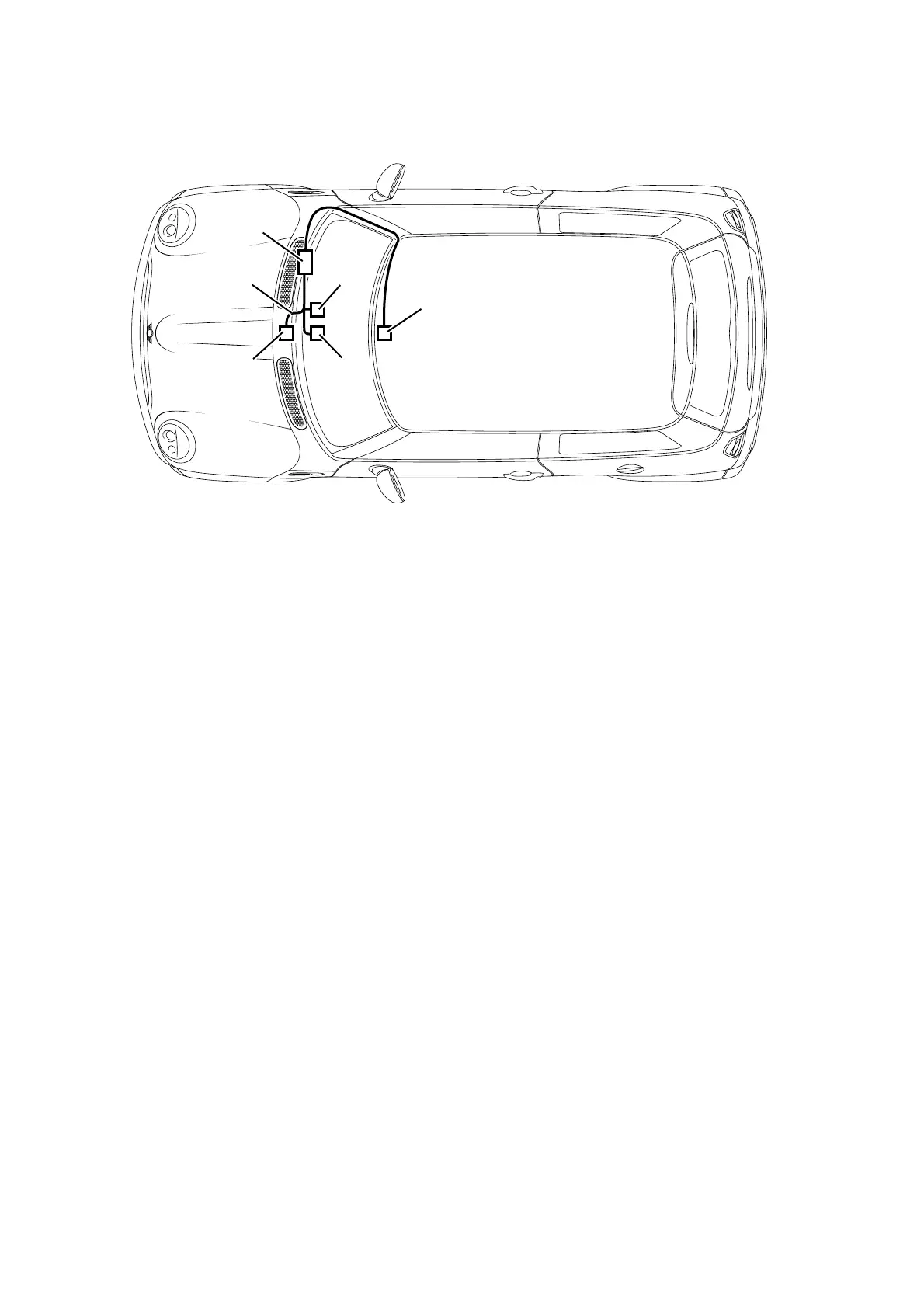

3. Installation and cabling diagram
0
Legend
0
1 Radio plug X18126
2 Wiring harness
3 Hands-free control module
4 Gooseneck with mobile phone holder
5 Hands-free microphone
6 Speaker
5
4
6
3
2
1
R50 0216 Z
