motortronics CSD Series User Manual

CSD Series Variable Frequency AC Drive
MOTORTRONICS
- 20 -
Program Fn11 to 0002
JP1
JP2
1
2
3
12
13
14
FM-
15
FM+
+
-
TM2
FCW FCCW
WIPER
Program Fn11 to 0002
JP1 JP2
1
2
3
12
13
14
FM-
15
FM+
+
-
TM2
+
-
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3

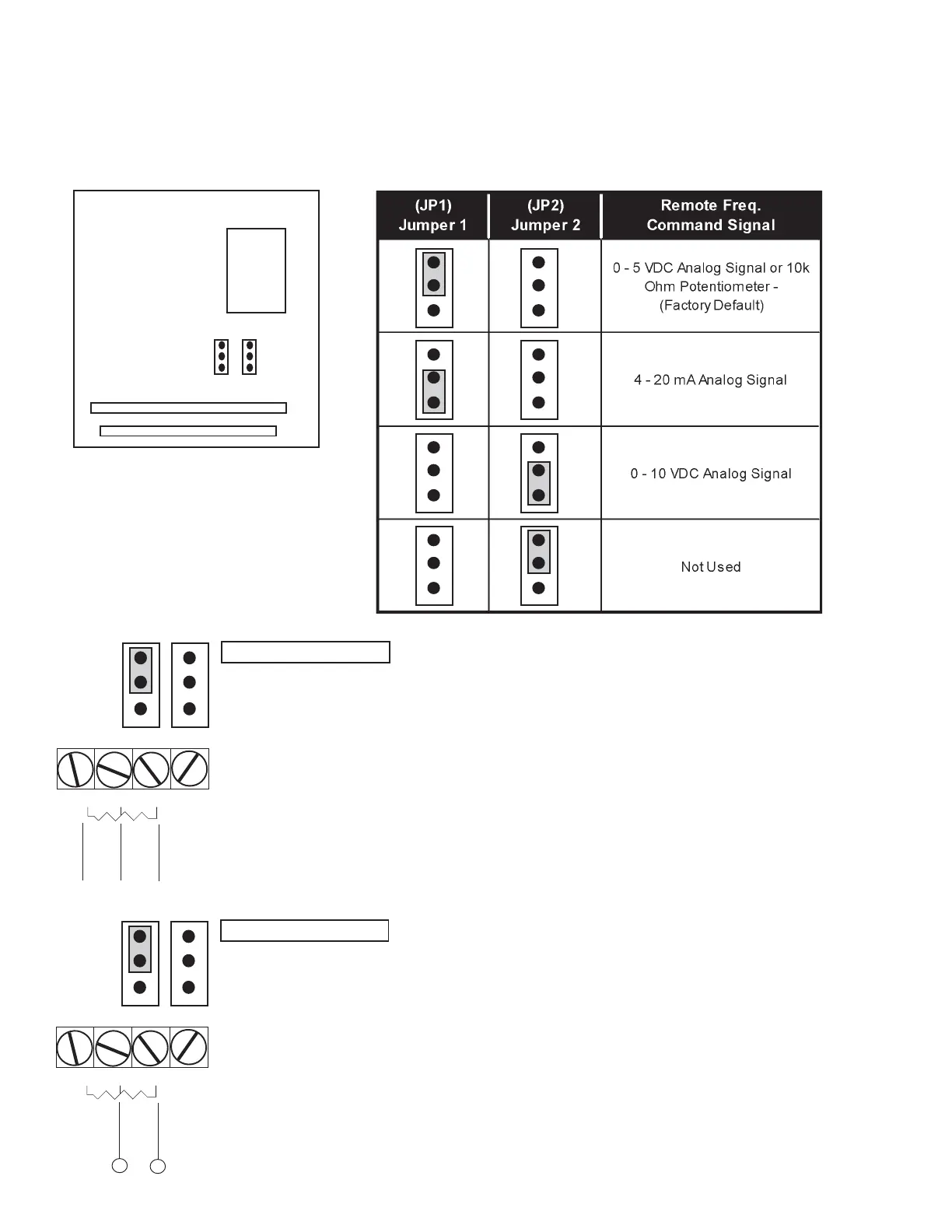

Figure 4 - 4
Function of Jumpers
Figure 4 - 3
Jumper Locations
JP1 JP2
TM2
TM1
1
2
3
1
2
3
4.2 Remote Analog Frequency Command Jumpers
Jumpers 1 and 2 can be used to select remote frequency command
signal (See Figures 4 - 3 & 4 - 4).
4.2.1 Remote Potentiometer Control
This allows motor speed control from a remote potentiometer. Use a
10k ohm, 2 watt linear taper potentiometer connected as shown.
Connect the FCW* of the potentiometer to TM2-12, the potentiometer
wiper to TM2-13 and the FCCW** of the potentiometer to TM2-14.
Place shorting jumper on JP1 - pins 1 and 2 (as indicated by the gray
area).
*Fully clockwise
**Fully counter clockwise
4.2.2 Remote 0-5 VDC Analog Control Signal
This allows motor speed control from a remote analog
5 VDC signal connected as shown.
Connect the positive lead of the signal to TM2-13 and the negative
lead of the control signal to TM2-14. Place shorting jumper on pins 1
and 2 of JP1 (as indicated by the gray area).
