motortronics VMX-B Soft Start Packages - TCB3000 Terminal Board Customer Connections; Status Indicator LEDs

3 REV-02 100418

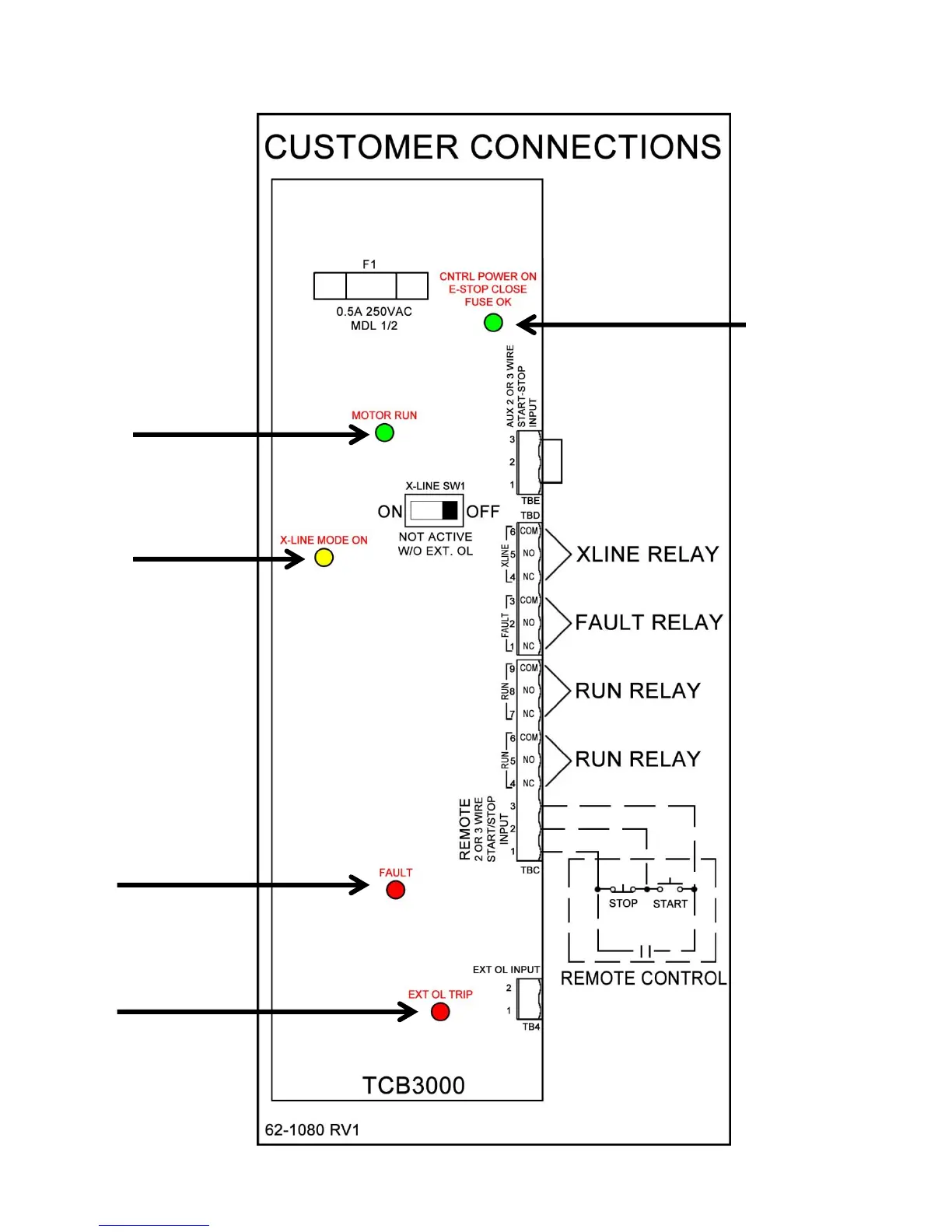

TCB3000 Terminal Board
Green LED
- Control Power ON
- E-Stop Not Active
- Fuse OK
Green LED
Motor Running
Yellow LED
X-Line Mode Enabled
(D.O.L. Start)
Red LED
Fault
(Unit Tripped requires
Reset Command)
Red LED
External O/L Tripped
(Reset O/L Manually
by pressing green
button on overload
relay).
