motortronics VMX-B Soft Start Packages - VMX-B Programming Instructions; Entering Motor FLA and Service Factor

4 REV-02 100418
Programming Instructions
This document is intended for use with Models: VMX-B Soft Start Packages
Motor FLA and Service Factor must be entered prior to start attempt
Fn #
Function Description
Range
Default
F001
Motor Nameplate FLA
50-100% of Max Amp Rating.
None
F002
Motor Nameplate Service Factor
1.00 - 1.30 SF
1.0 SF
For complete parameter list see pages 6-7 of this document
Means…
Fn
Read
Enter

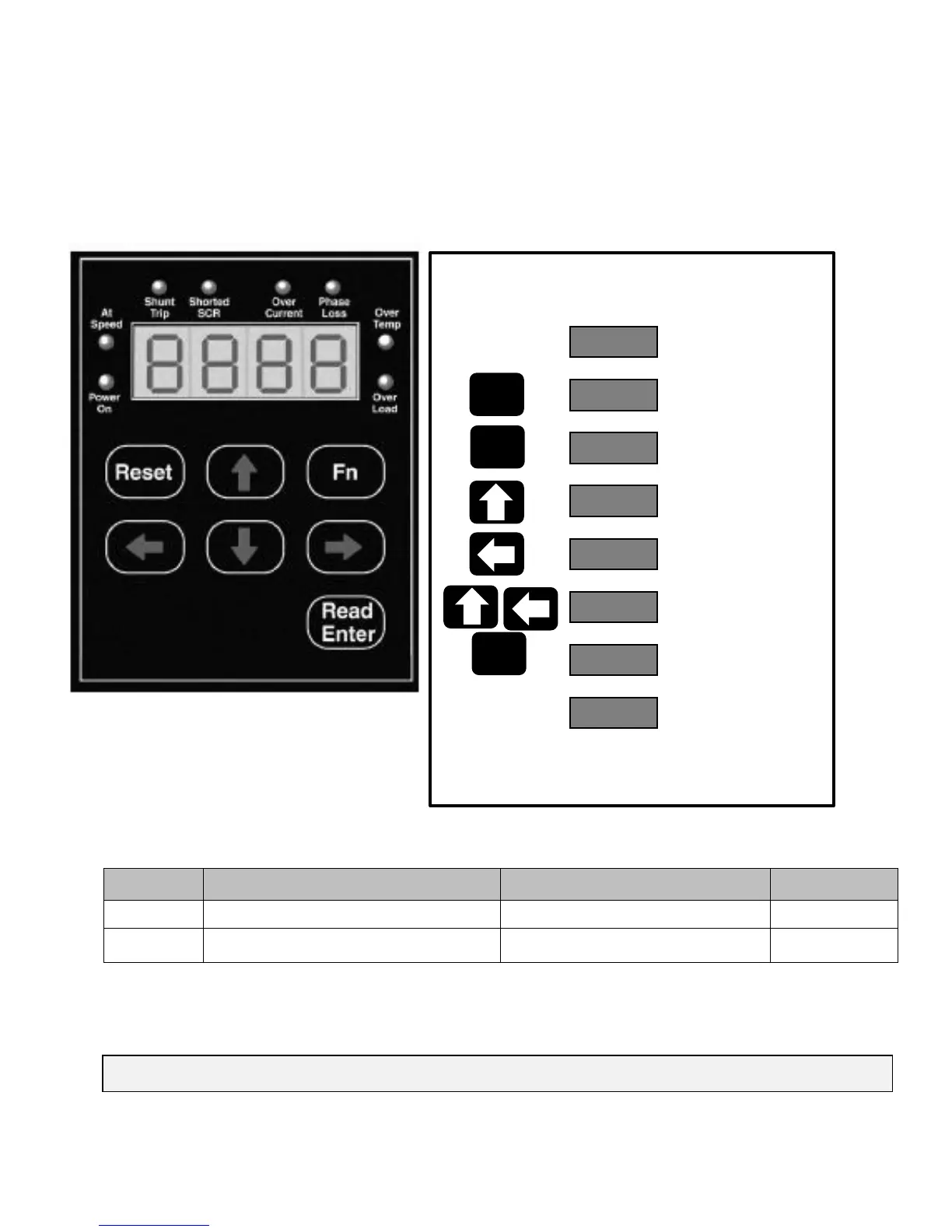

Press
Key…
0000
F001
0009
0000
0009
0179
End
F001
Default Display
Function #1
Selected
FLA value
(0000 is default)
Set value of ones
digit (flashing)
Set value of
remaining FLA digits
Cursor Position Shift
(tens digit flashing)
Value Accepted
(flashes once)
Use up arrow to scroll to F002 and repeat process
to set Service Factor. When programming is
complete press Fn key to exit programming mode.
Read
Enter
Entering Motor FLA & SF
For Complete Installation instructions see VMX Operation & Installation Manual
