motortronics VMX-B Soft Start Packages - Operation and Troubleshooting; Keypad Operation Modes

5 REV-02 100418
Operation and Troubleshooting
Keypad Operation

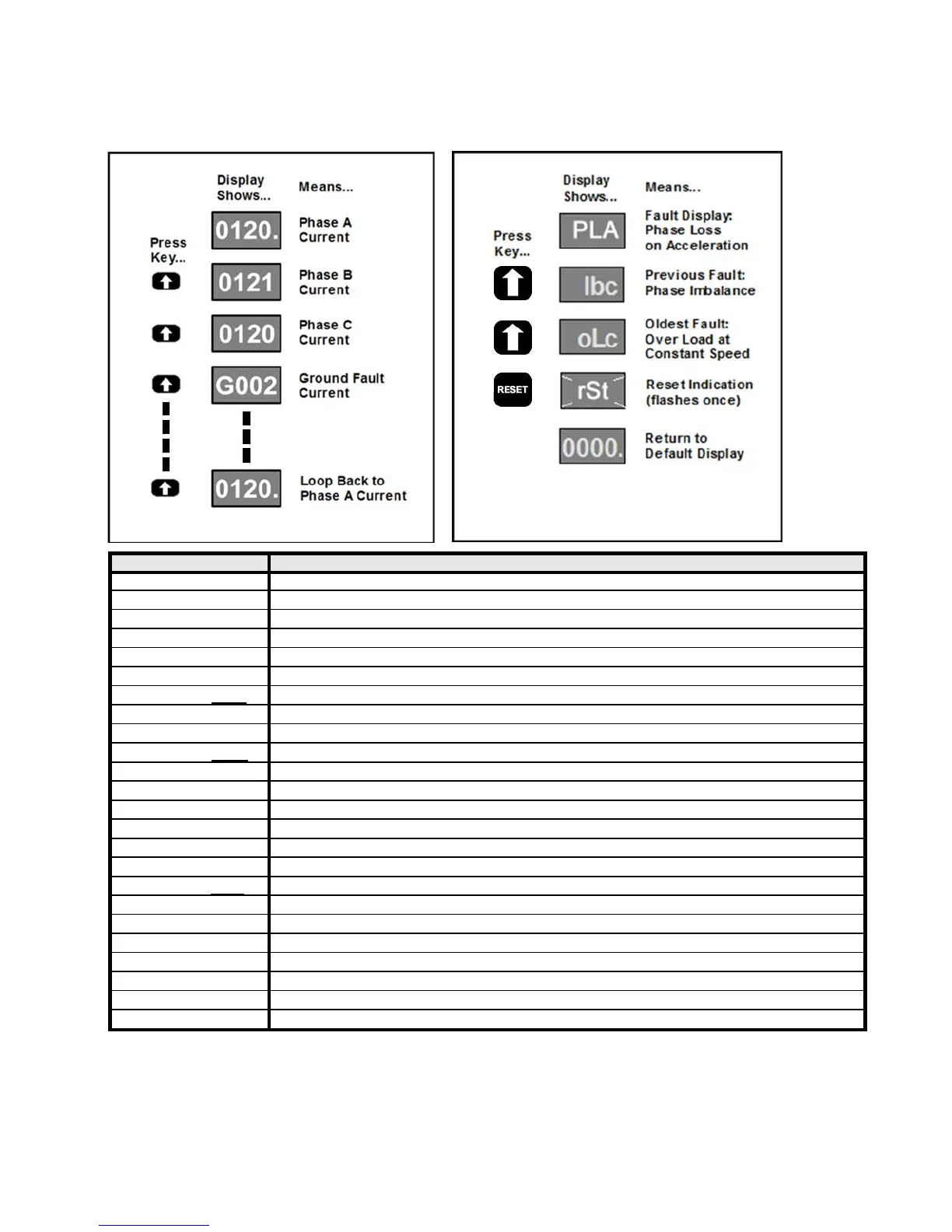

Display Mode (Default) Fault Mode
*NOTES:
“PLd” can be caused by a Grounded delta power system. If one input leg measures ZERO volts to ground, reduce
the setting of F051 to “0054” for operation on a “Grounded Delta”.
“SSd” can be caused by operating without a motor connected, ensure the motor is firmly connected.
“LcA, Lcc, or Lcd” indicates that the Surge absorber is damaged; see NOTE 1 on wiring diagram.
Fault Code
Description
nFLA
No Full Load Amps set in F001
Inh
Parameter change attempted when in Run Mode or without password
N3Ph
Line Voltage Loss (no 3 phase prior to start)
Loc
Lockout Starter is in overload or duty cycle lockout
Err
Incorrect Password Entered
ocA; occ: ocd
Over Current during Acceleration; Constant speed; Deceleration
PLA; PLc; PLd*
Phase Loss during Acceleration; Constant speed; Deceleration
otA; otc; otd
Over Temperature during Acceleration; Constant speed; Deceleration
oLA; oLc; oLd
Over Load during Acceleration; Constant speed; Deceleration
SSA; SSc; SSd*
Shorted SCR during Acceleration; Constant speed; Deceleration
st
Shunt Trip during Acceleration; Constant speed; Deceleration
IbA; Ibc; Ibd
Current Imbalance during Acceleration; Constant speed; Deceleration
UcA; Ucc; Ucd
Under Current during Acceleration; Constant speed; Deceleration
ScA; Scc; Scd
Short Circuit during Acceleration; Constant speed; Deceleration
GFA; GFc; GFd
Ground Fault during Acceleration; Constant speed; Deceleration
bPA; bPc; bPd
Bypass Discrepancy during Acceleration; Constant speed; Deceleration
LcA; Lcc; Lcd*
Normally closed external lockout is open
rtA; rtc; rtd
Rotation Trip during Acceleration; Constant speed; Deceleration
EIA; EIc; EId
Voltage Imbalance during Acceleration; Constant speed; Deceleration
oEA; oEc; oEd
Overvoltage during Acceleration; Constant speed; Deceleration
UEA; UEc; UEd
Undervoltage during Acceleration; Constant speed; Deceleration
PFA; PFc; PFd
Power Factor trip during Acceleration; Constant speed; Deceleration
PrA; Prc; Prd
Power (kW) trip during Acceleration; Constant speed; Deceleration
ncPA; ncPc; ncPd
Control Power Loss during Acceleration; Constant speed; Deceleration
