XLS Series Solid State Soft Starter 39 - 1250A
5.3.2 Stop Voltage Level
Factory Setting = 20% of line voltage
Range = 0% - 100% of line voltage
The stop voltage level set point is where the deceleration voltage drops
to zero.
5.3.3 Deceleration Ramp Time
Factory Setting = 5 sec.
Range = 0 - 30 sec.
The deceleration ramp time adjusts the time it takes to reach the stop
voltage level set point. The unit should be restarted and stopped to
verify that the desired acceleration time has been achieved.
Note: Do not exceed the motor manufacturer’s recommended
number of starts per hour. When calculating the number of starts
per hour, a decel curve should be counted as a start curve. For
example: recommended number of starts per hour = 6, allowable
starts with decel cycle per hour = 3.

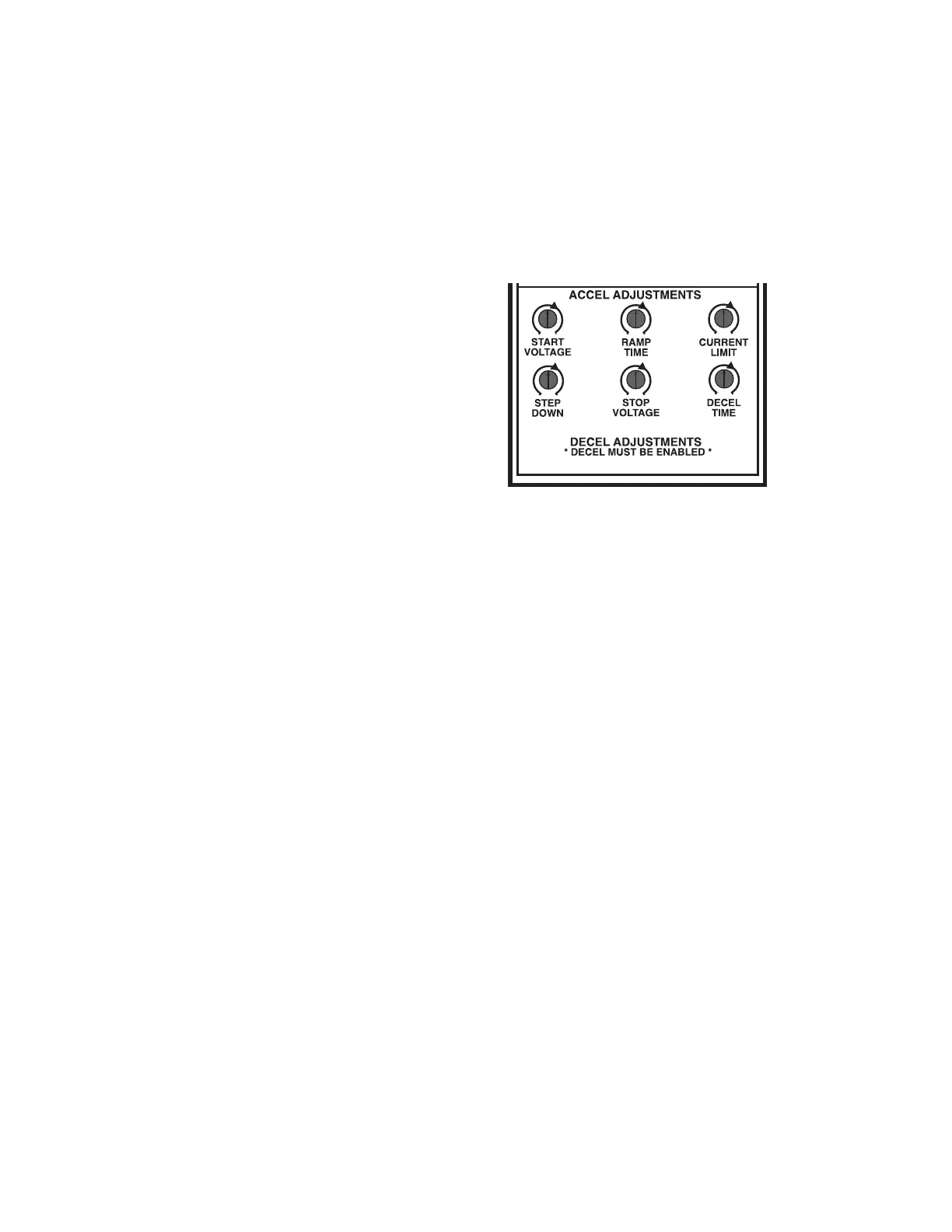

Detail of Operator Interface Module
