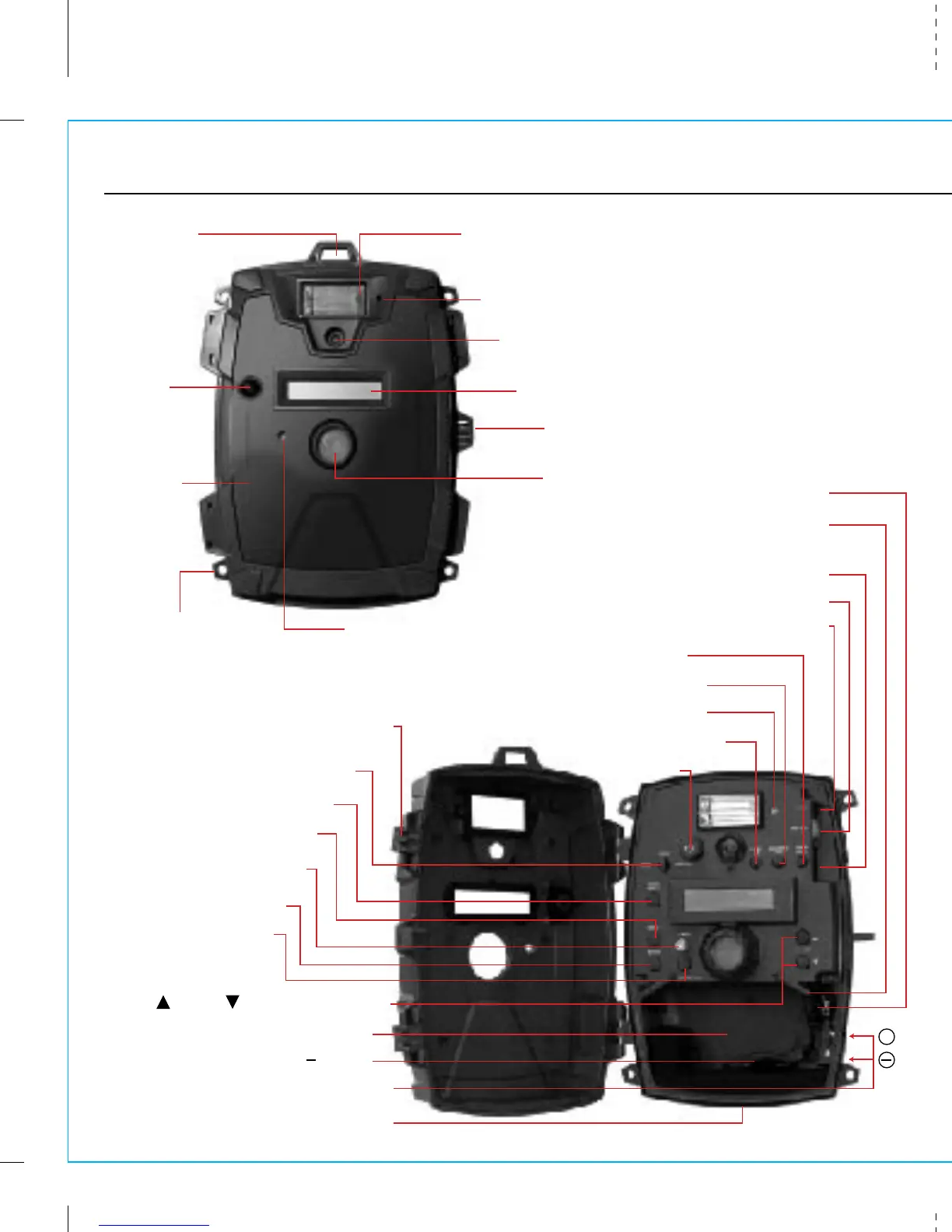

Product Description
Viewfinder
Shutter
Button
Light Sensor
Electronic Flash
Camera Lens
Status
Light
LCD Status Display
Lockable latch
Weather
Resistant
Housing
Control Box Latch
Power ON/Off
SD Memory Card Slot
USB Out
TV Out
Diagnostic test Button
Laser Aim Button
Mounting
Strap Lug
Infrared
Sensor
Mode Switch
Default Reset Button
Menu Button
Enter Button
Status Light
Infrared Test Button
UP Down Change Buttons
Battery Compartment
Battery Connectors (+ red, black)
Solar Panel Connection
Weather-Resistant Seal
Light Sensor
Page 1
Page 10
Laser
Clock Battery
Holder
Battery Hold Down
+
rcdezÿn_created-72004_rev-r291604_DigitalGameCam_InstructionManual_pages_1.10
Optional Laser
Modes of operation
The Aiming Laser will function only in the SETUP and AUTO modes. If the user does not turn the laser
off, the laser turns itself off automatically in 60 seconds.
Auto, Setup, and Handheld Modes
Auto mode
After entering the AUTO mode the status LED first flashes for 30 sec., then the camera goes to
detection mode waiting for activity to take place. The status LED also flashes for 30 sec. following the
end of the Infrared test or Laser aim operation.
Setup mode
In SETUP mode the display shows the date and time which is the first item of the setup menu. The user
can navigate the setup menu using Menu button. Changes are made with Enter and up/down buttons.
Handheld mode
In HANDHELD mode the display will show the pictures taken, pictures remaining and the battery
strength. The red status LED will flash to indicate that the Camera and Flash are getting ready; when
ready the status LED will stay lit. Only then will the user be able to take a picture by pressing the
external shutter button. The menu setting will determine the type of picture taken.
Flash
Flash readiness and range
During the dark hours of the day, the flash is kept charged and ready tocapture an image at a
distance of up to 32 ft. The flash operation is automatic and requires no user settings.
Flash and Video Capture
When video setting is selected, the flash is disabled. Video clips are only captured during day time.
During the dark or low light levels the camera will automatically switch to still picture settings and
use flash.
USB and Video Connection
Entering USB mode
Camera must be powered ON and must first be placed in SETUP. Then the USB adapter cable must be
plugged into the USB port. The camera is sensed as a removable drive from the connected computer.
Win 2000/XP & ME do not require additional drivers.
USB and TV OUT Cable
The cables furnished may require an adapter for your equipment in some situations.
Automatic Functions
Low light or night situations
The video clip function will be automatically switched to still photos in low light or night situations. Note
the type of still picture will be whatever the user has set up in the menu.
Hibernation Mode
The unit will have an Auto Sleep feature that will put the unit into a low power sleep mode during set up
or hand held if no activity takes place in 5 minutes. This feature is will not apply if the USB or Video
outputs are being used.
Delay Status Menu
When the unit is in the delay mode the LCD will display: Camera Delay and the amount of time
remaining in the delay. Note, this display changes to :Camera Ready when not in the delay status.
