Mountfield 1540 - 3.6 ASSEMBLING THE LEVERS FOR TIPPING THE GRASS-CATCHER; 3.7 REMOVAL OF THE STOP FROM THE HOOKING PAWL OF THE GRASS-CATCHER

Before attaching the grass-catcher to its supports, make sure that the tipping lever
moves properly.
3.7 REMOVAL OF THE STOP FROM THE HOOKING PAWL OF THE GRASS-
CATCHER

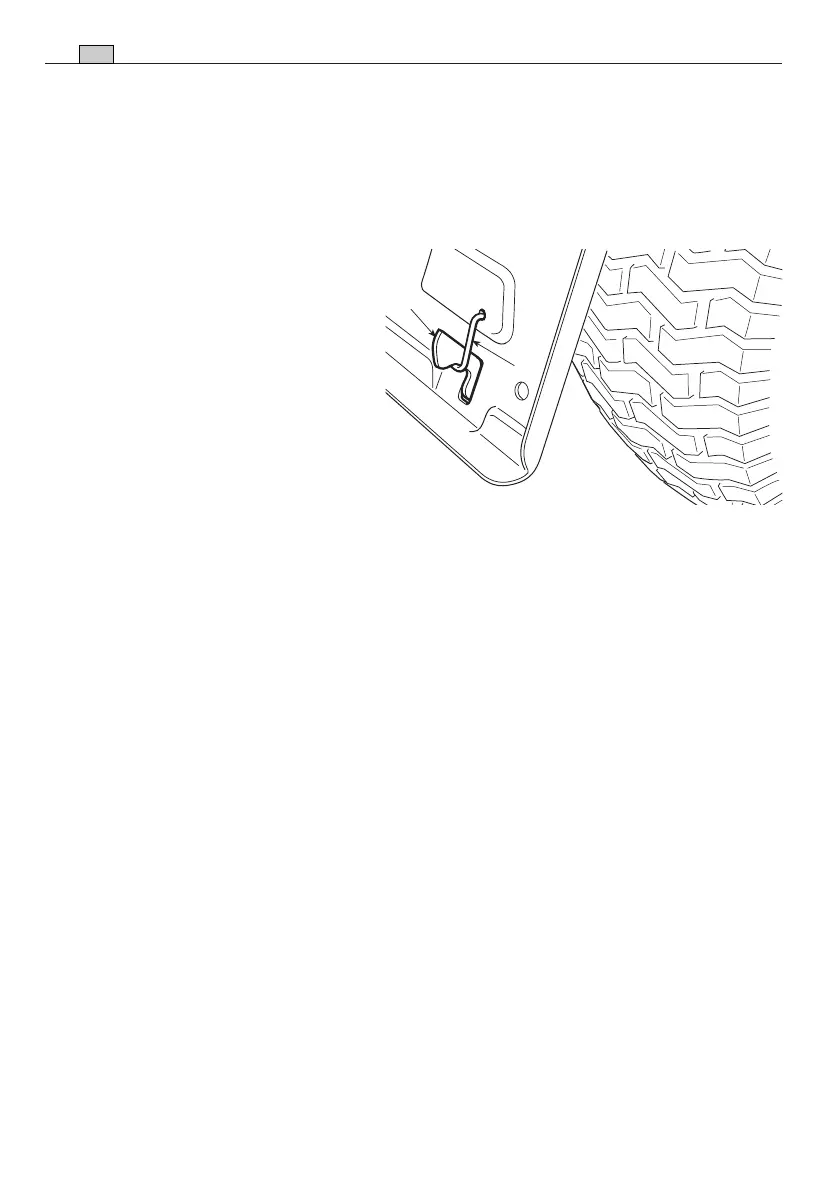

For transport purposes, the pawl (1)
hooking the grass-catcher is held
onto the rear plate by a stop (2).
This stop must be removed before fit-
ting the grass-catcher brackets, and
is not to be subsequently used.
