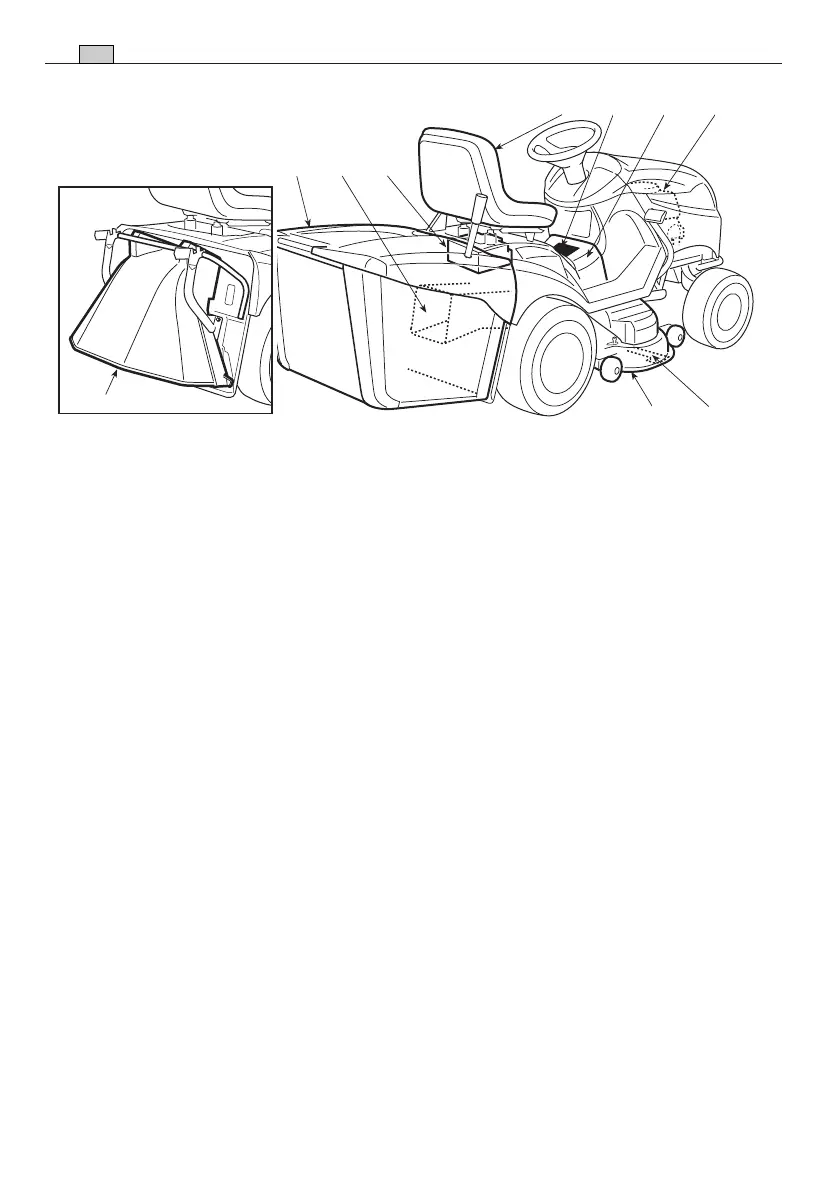

12. Blades: these are what cut the grass. The wings at the ends help convey the cut
grass towards the collector channel.
13. Collector channel: this is the part connecting the cutting deck to the grass-
catcher.
14. Grass-catcher: as well as collecting the grass cuttings, this is also a safety ele-
ment in that it stops any objects drawn up by the blades from being thrown out-
side of the machine.
15. Stone-guard or deflector (available as optional part): this can be fitted in place
of the grass-catcher and prevents objects drawn up by the blades from being
thrown outside of the machine.
16. Engine: this moves the blades and drives the wheels. Its specifications and regu-
lations for use are described in a specific manual.
17. Battery: provides the energy for starting the engine. Its specifications and regula-
tions for use are described in a specific manual.
18. Driver seat: this is where the machine operator sits. It has a sensor for detecting
the presence of the operator which is a safety device.
19. Decals for regulations and safety: give reminders on the main provisions for
working safely, each of which is explained in chapter 1.
20. Inspection hatch: for access to make several adjustments.
IDENTIFICATION OF THE MACHINE AND COMPONENTS
8
EN
