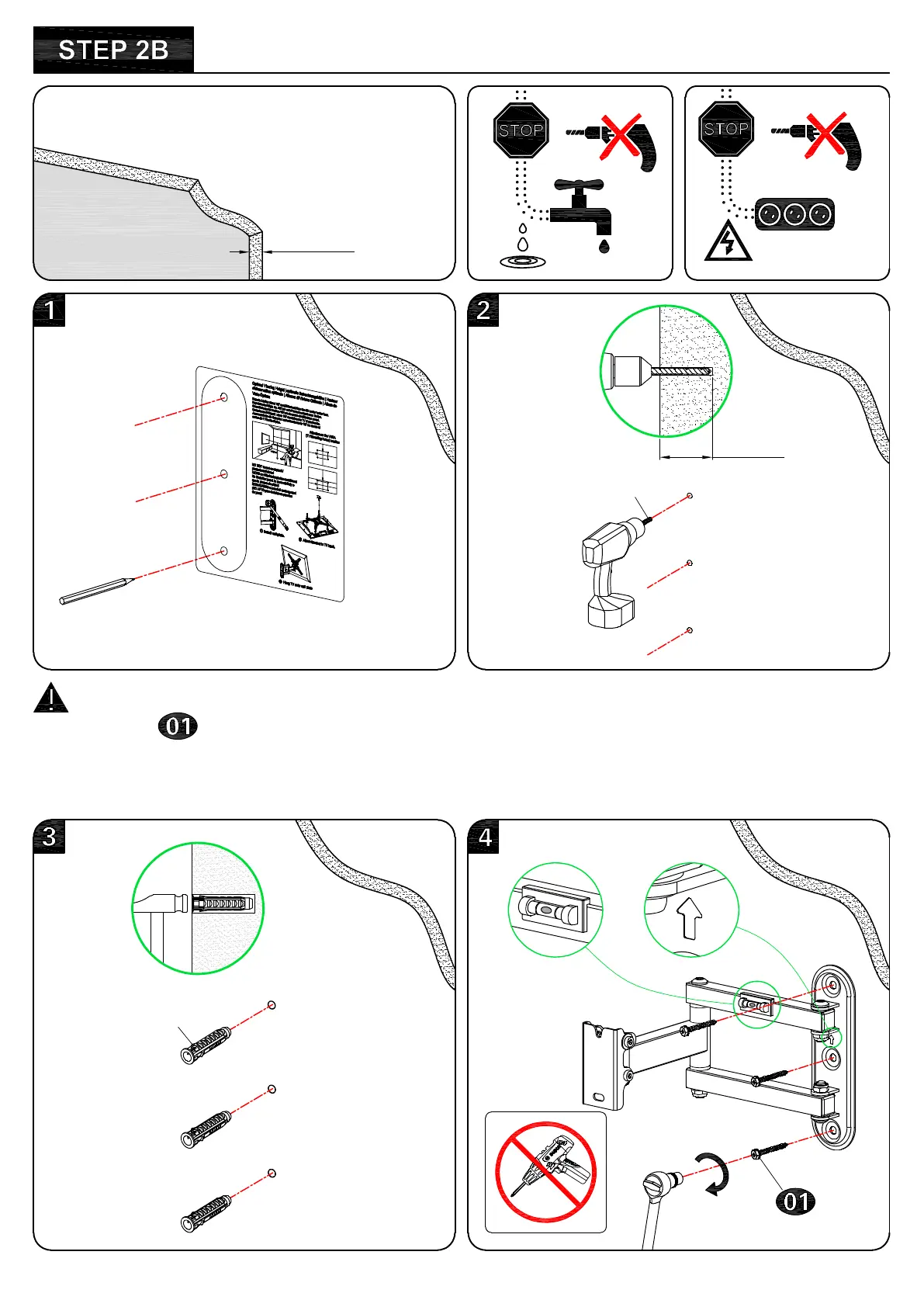

Solid Concrete Wall Installation
8
2.16"
(55mm)
3/8"
(10mm)
Concrete Wall
Anchor
Wall plate
Level
No!
DANGER
Min.
8"(203mm)
CAUTION:
To avoid potential personal injury or property damage:
All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the direction of the arrow should be upward as shown.
Mounting Template
UP
To Next Page
