5.8 Preset number selecting by sensor

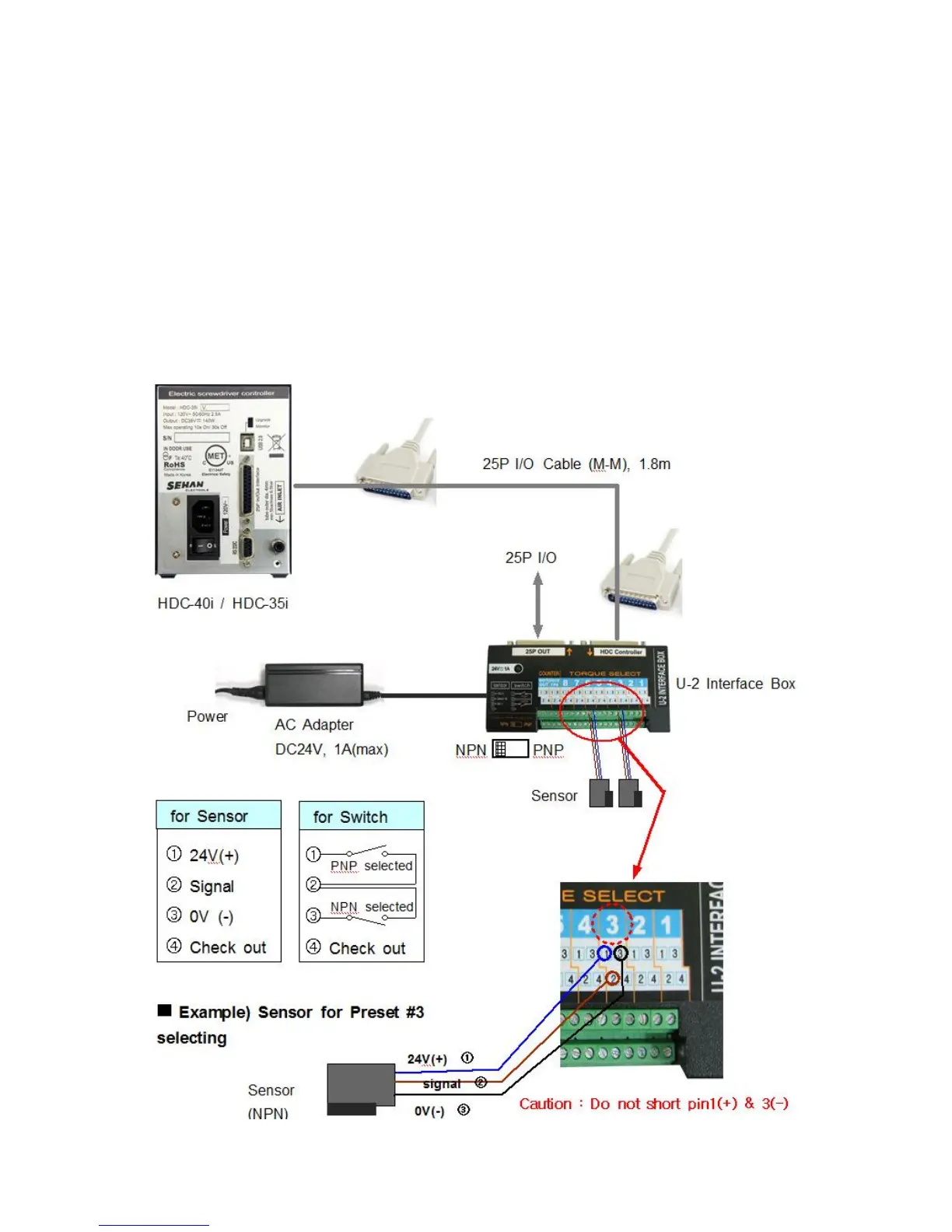

The 8 sensor ports on U-2 Interface Box are linked to 8 preset numbers through 25P I/O
interface. These ports are designed for sensors to be wired directly. When the sensor 1 is
activated, the preset no.1 is selected accordingly. The configuration of 25P I/O port is different
by the setting on P64.
[ P64 Setting ] Select " 0 "
"0" : Reset number selecting by Sensor "1" : Remote control I/O for PLC
The sensor can be replaced to the switch (mechanical switch)
