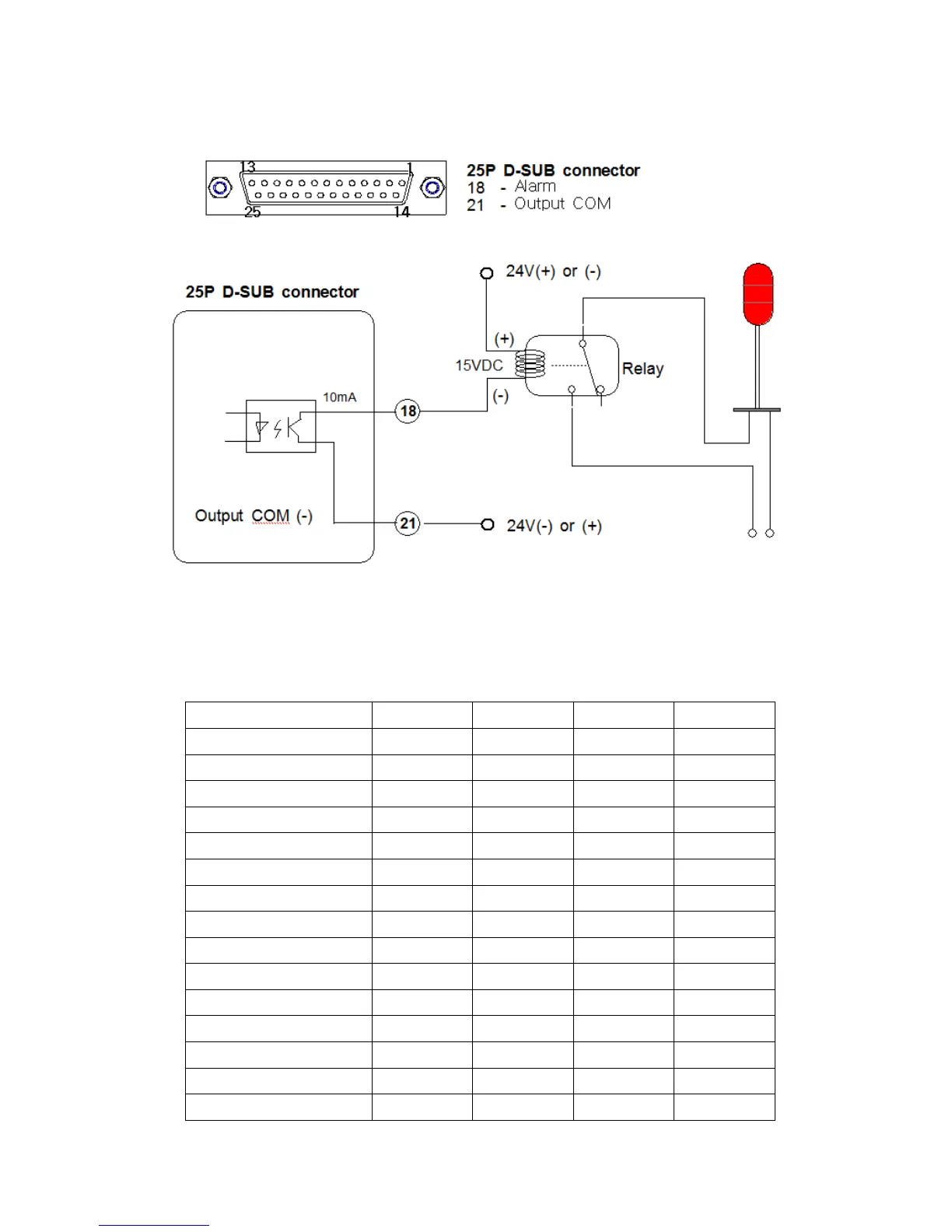

5.11.6 Wiring of the Alarm signal to the Tower Lamp
5.11.7 Error code pin composition on 25P Output _ [P64] "1" PLC selected
Error code
pin 13
pin 12
pin 11
pin 10
100
0
0
0
1
101
0
0
1
0
110,112
0
0
1
1
111
0
1
0
0
308
0
1
0
1
113
0
1
1
0
114
0
1
1
1
118
1
0
0
0
200,201,202,203,204
1
0
0
1
304
1
0
1
0
301
1
0
1
1
305
1
1
0
0
303
1
1
0
1
306
1
1
1
0
307
1
1
1
1
