8. Auto fastening data output through USB port (P86)
Check mark on Enable on P86 ( auto fastening data output ), then every fastening
data will be out at every event through RS-232 without data request command.
The output data consist of 13 fastening information as below
Each data is divided by comma(,) between data.

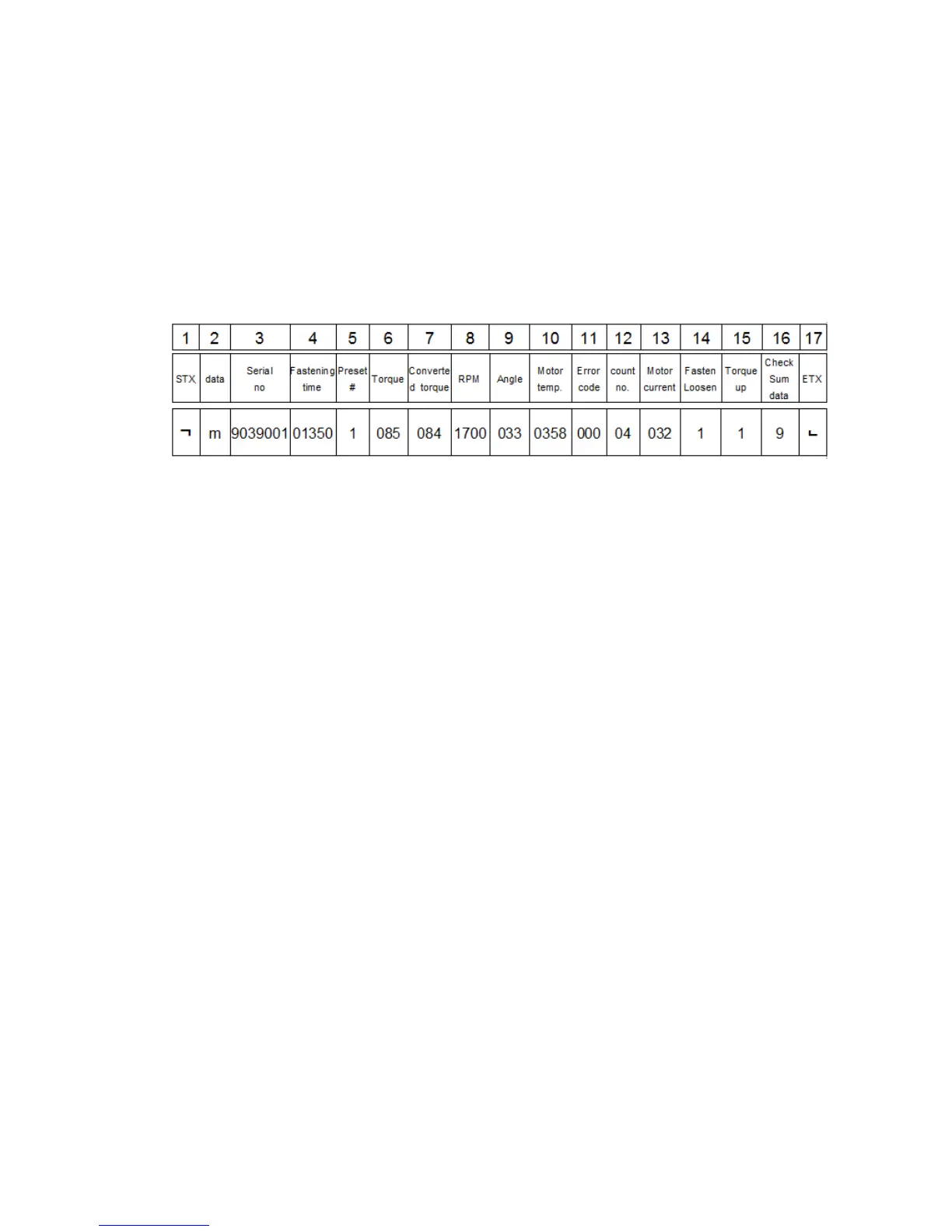

example ) ㄱ m9039001,01350,1,085,084,1700,033,0358,000,04,032,1,1,9 ㄴ
1. Start of Text (STX)
2. Data : m (monitoring) data
3. Serial no. : 9039001 ( 2009, March )
4. Fastening time : 1350 ms
5. Preset # : 1
6. Torque setting : 8.5
7. Fastening torque (converted torque) : 8.4
8. RPM setting : 1700 rpm
9. Fastening angle : 3.3 turn
10. Motor temperature : 35.8℃
11. Error code : 000 ( No error, Fastening OK ) if 301, error 301
12. Screw count # : 4 screws remained
13. Motor current : 3.2 Ampere
14. For / Rev : Fastening (1), Loosening (0)
15. Torque complete : Torque complete (1), No torque up (0)
16. Data check sum : See article 7.2.4
17. End of Text (EXT)
