MCTC manual

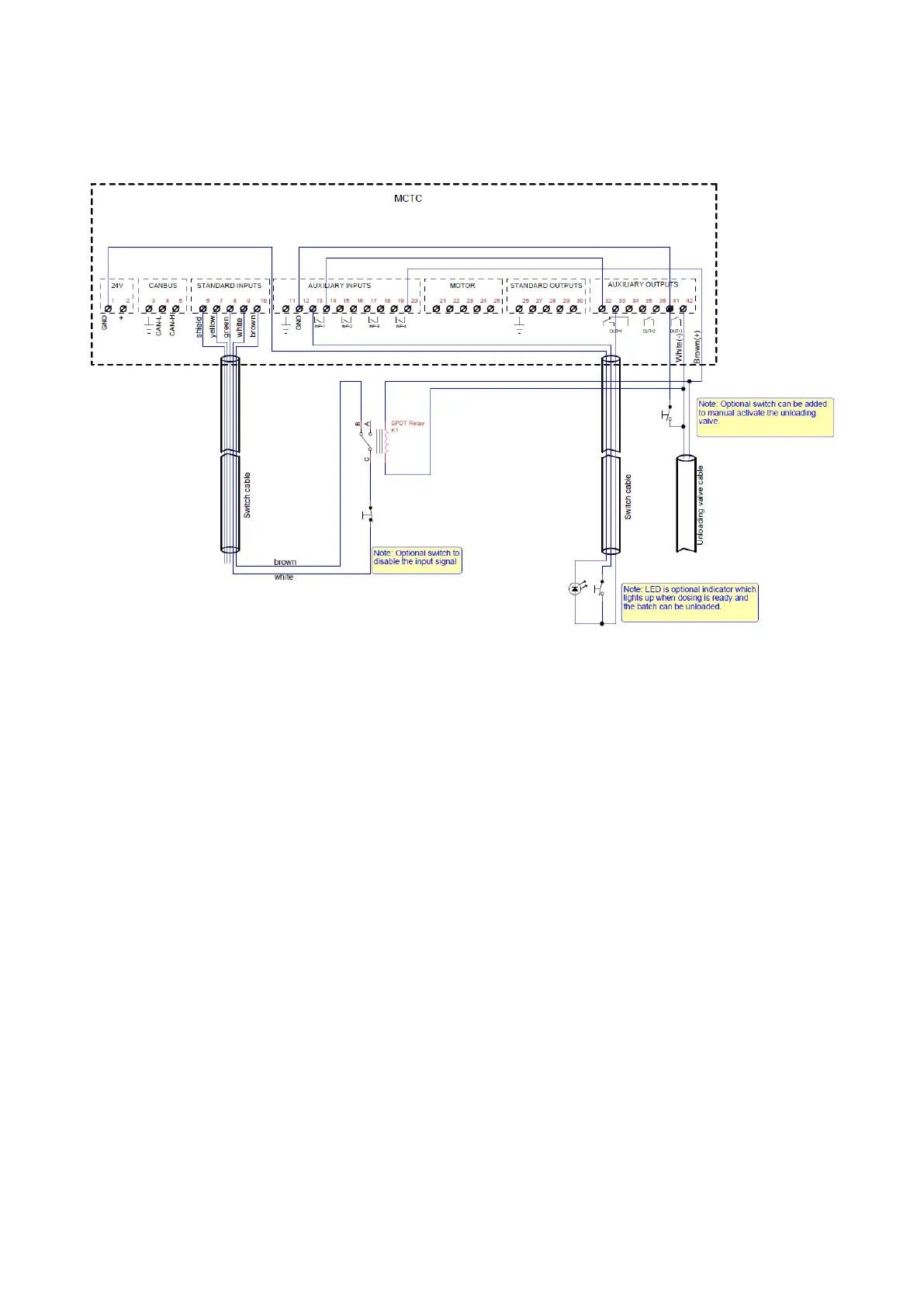

6.3.3 Example 3 – Batch with unloading option activated by pushbutton
In this example the system starts dosing when the start button is pressed. The start input is controlled by an
external relay. This relay will interrupt the start input when the unloading valve is activated. When unloading
is finished, the relay will give a new start input to the system for the next batch. No external start input is
used.
