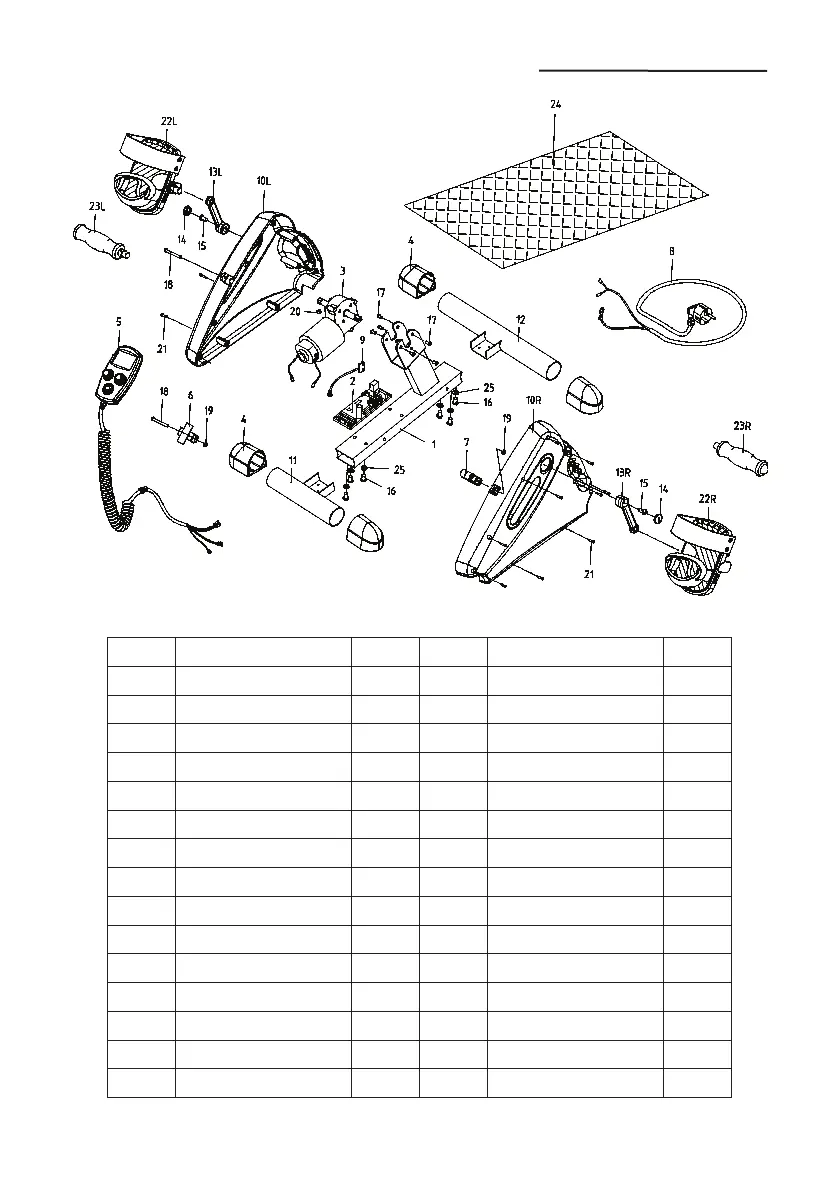

Dibujo de la descripción & Truco de las piezas
Part # Description Q'ty Part # Description Q'ty
1 Main Frame 1 14 Plastic Cap 2
2 Power Control Board 1 15 Bolt M8x20mm 2
3 Motor 1 16 Bolt M8x15mm 6
4 End Cap 4 17 Bolt M6x12mm 6
5 Controller 1 18 Bolt M6x40mm 2
6 Controller Bracket A 1 19 Nut M6 2
7 Controller Bracket B 1 20 Round Magnet 1
8 AC Power Cable 1 21 Screw M4x20mm 11
9 Square Sensor 1 22R Right Pedal 1
10R Right Cover 1 22L Left Pedal 1
10L Left Cover 1 23R Right Handle 1
11 Front Stabilizer 1 23L Left Handle 1
12 Rear Stabilizer 1 24 Non-slip Mat 1
13R Right Crank 1 25 Washer Ø18xØ8x1.5T 6
13L Left Crank 1
