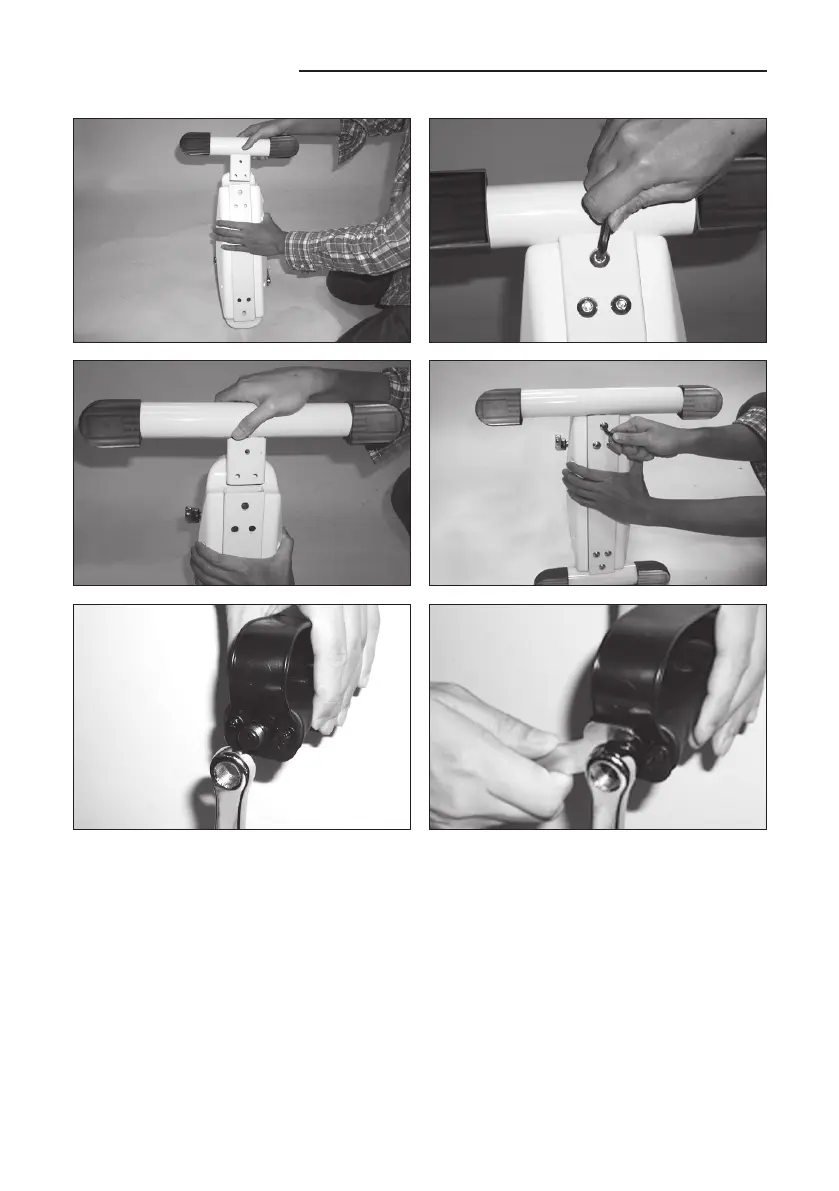

1. Hold the unit in an upright position. The controller side facing up and the AC power cable
side facing down. Insert the front stabilizer (11) into the main frame (1).
2. Attach the front stabilizer (11) to the main frame (1) with three bolts (16) and three spring
washers (25).
3. Insert the rear stabilizer (12) into the main frame (1).
4. Attach the rear stabilizer (12) to the main frame (1) with three bolts (16) and three spring
washers (25).
5. Connect the left foot pedal (22L) to the left crank (13L) assembly. Thread it into the crank
assembly in a counter-clockwise direction with the tool provided. (See gures 5 and 6).
Connect the right foot pedal (22R) to the right crank (13R) assembly by threading it in
a clockwise direction. Note: The left/right pedals and left/right cranks are marked with
“L” and “R” (left and right)
